Pfaff 1243 Adjustment Manual

Adjustment
18
13.04.13 Clearance between roller presser and needle plate
Rule
The clearance from the raised roller presser to the needle plate should be 5 mm in
machines with a roller presser.

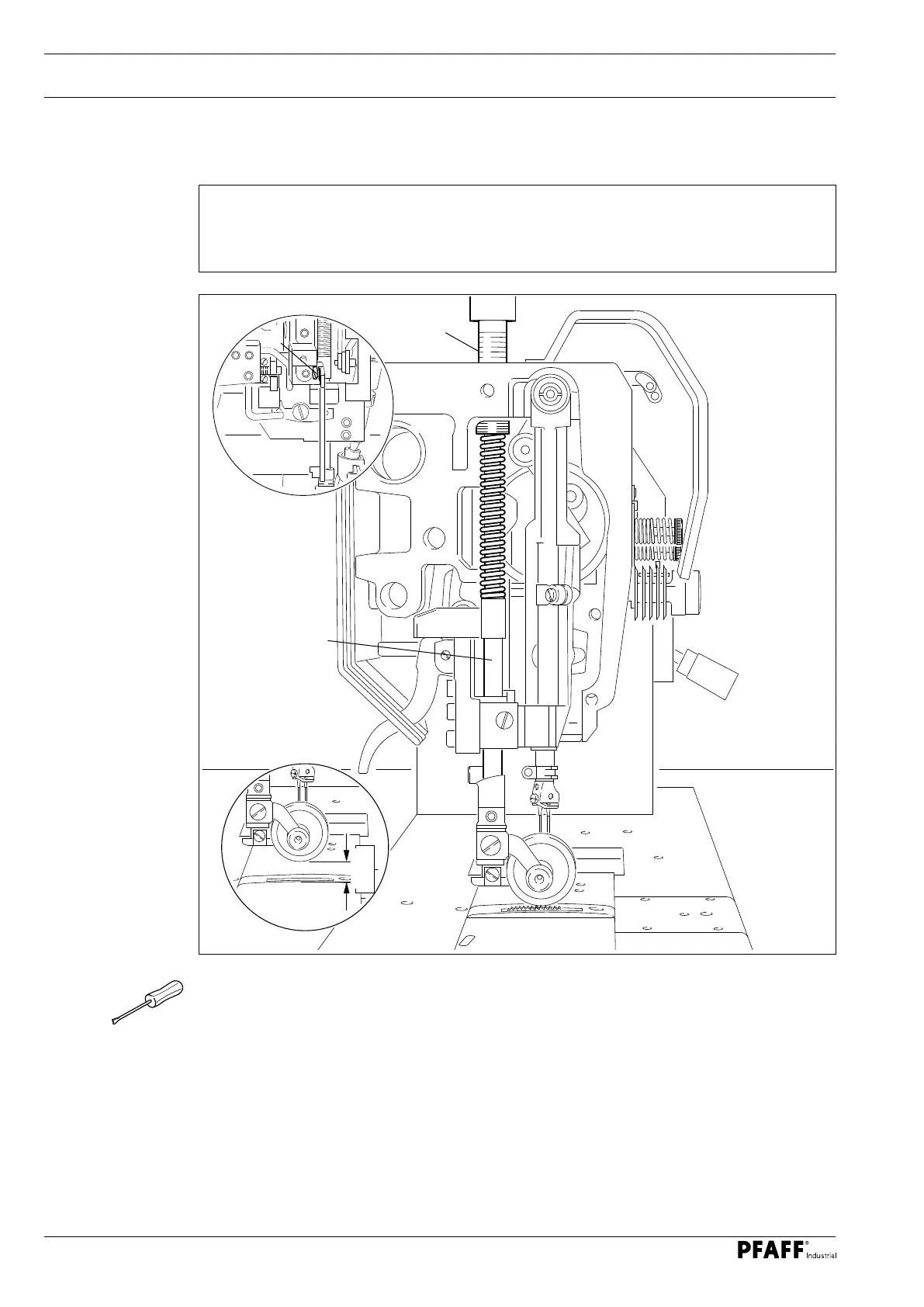

Fig. 13 - 13
O Raise the roller presser with the hand lever.
O Reduce the pressure on the roller presser ( screw 1 ).
O Adjust the presser rod 2 ( screw 3 ) according to the rule.
O Make the adjustment as explained in chapter 13.04.14 Roller presser pressure.
1
2
3
5 mm
