Adjustment
35

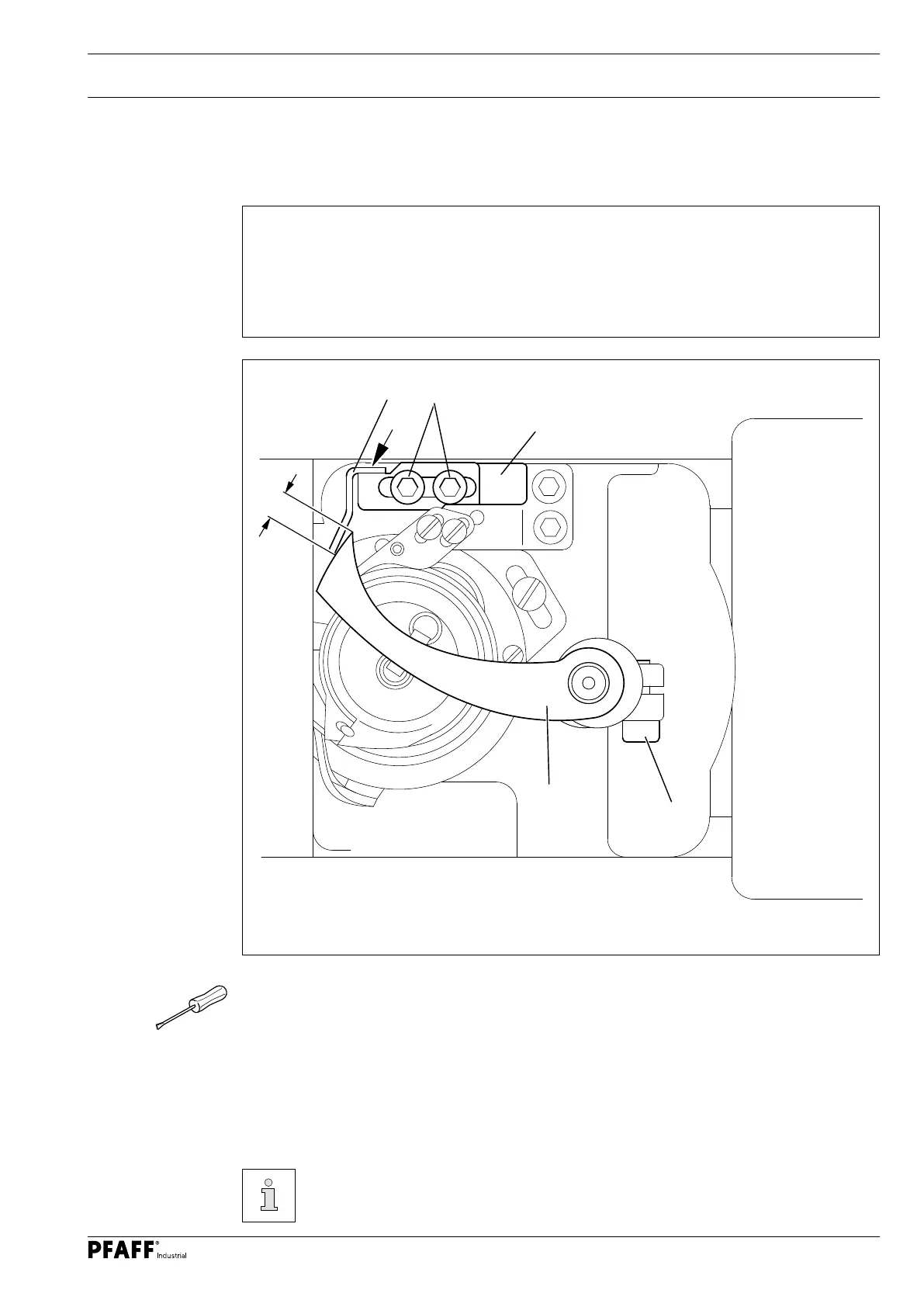

Fig. 13 - 30
13.05.12 Knife (make this adjustment on both knives with the PFAFF 1244)
Rule
1. The elongated hole of the knife 3 should run parallel to the knife carrier 5; the knife
should not rest on the metal edge ( see arrow ).
2. If the tip of the thread catcher 4 protrudes approx. 3 mm above the knife edge, the
knife 3 should slightly touch the thread catcher 4.
O Loosen the screws 2.
O First adjust the knife 3 so that it cannot collide with the thread catcher 4.
O Turn the thread catcher 4 by hand according to rule 2, ensuring that the screw 1 is
loosened.
O Move the knife 3 slightly so that it touches the thread catcher 4 and align it according to
rule 1.
O Tighten the screws 2 in this position.
The screw 1 remains loosened for the subsequent adjustment.
3
3 mm
2
4
1
5
