Adjustment
23

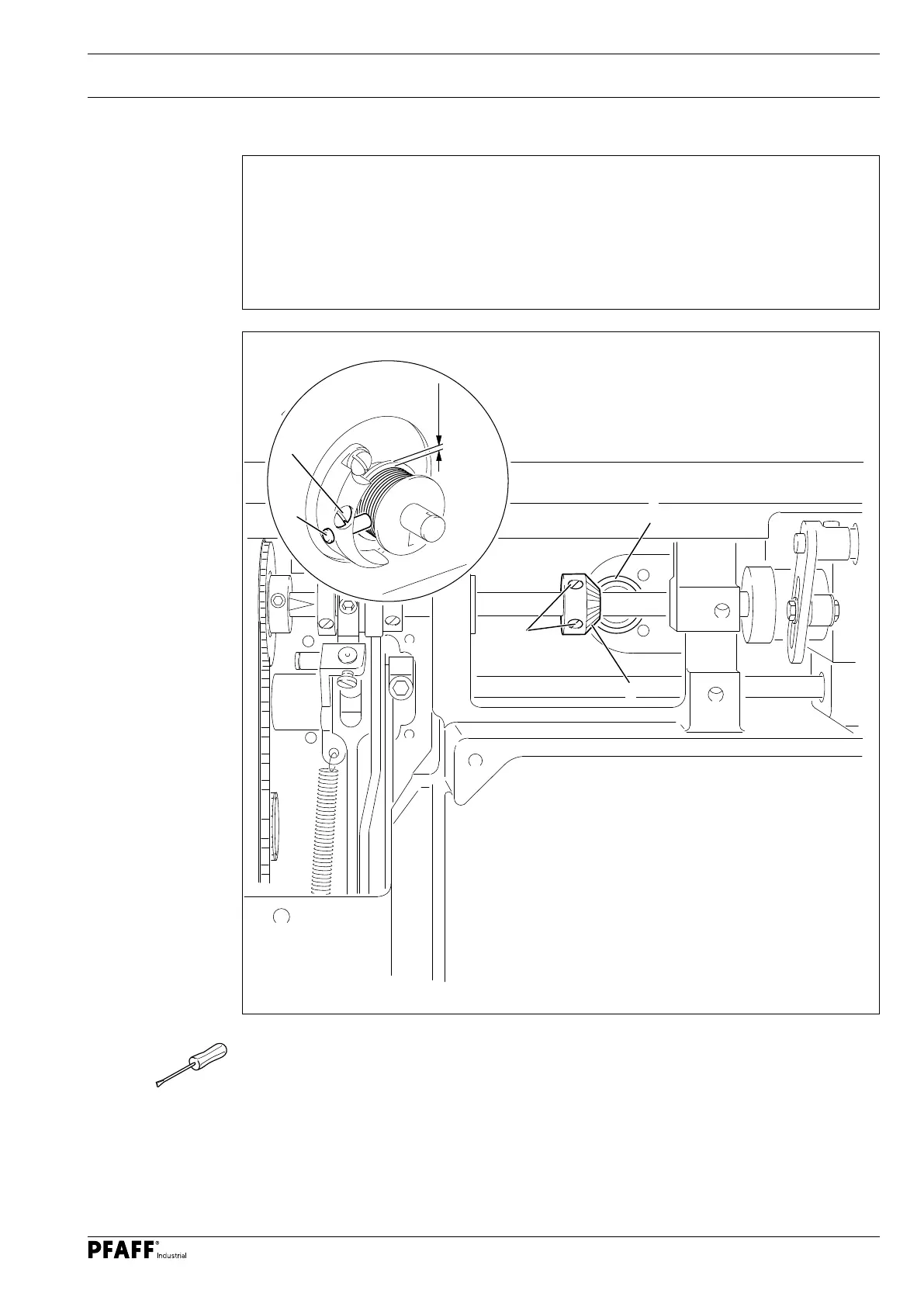

Fig. 13 - 18
1
2
5
13.04.18 Bobbin winder
Rule
1. When the bobbin winder is switched on, the bobbin winder spindle should be moved
easily; when the bobbin winder is switched off, the friction wheel 5 must not touch
the drive wheel 1.
2. The bobbin winder should switch off automatically when the fill amount is still around
1 mm from the edge of the bobbin.
O Adjust the drive wheel 1 (screws 2) according to rule1.
O Adjust the bolt 3 (screws 4) according to rule 2.
3
4
1 mm
