8 - 3
Installation and commissioning
58.0090

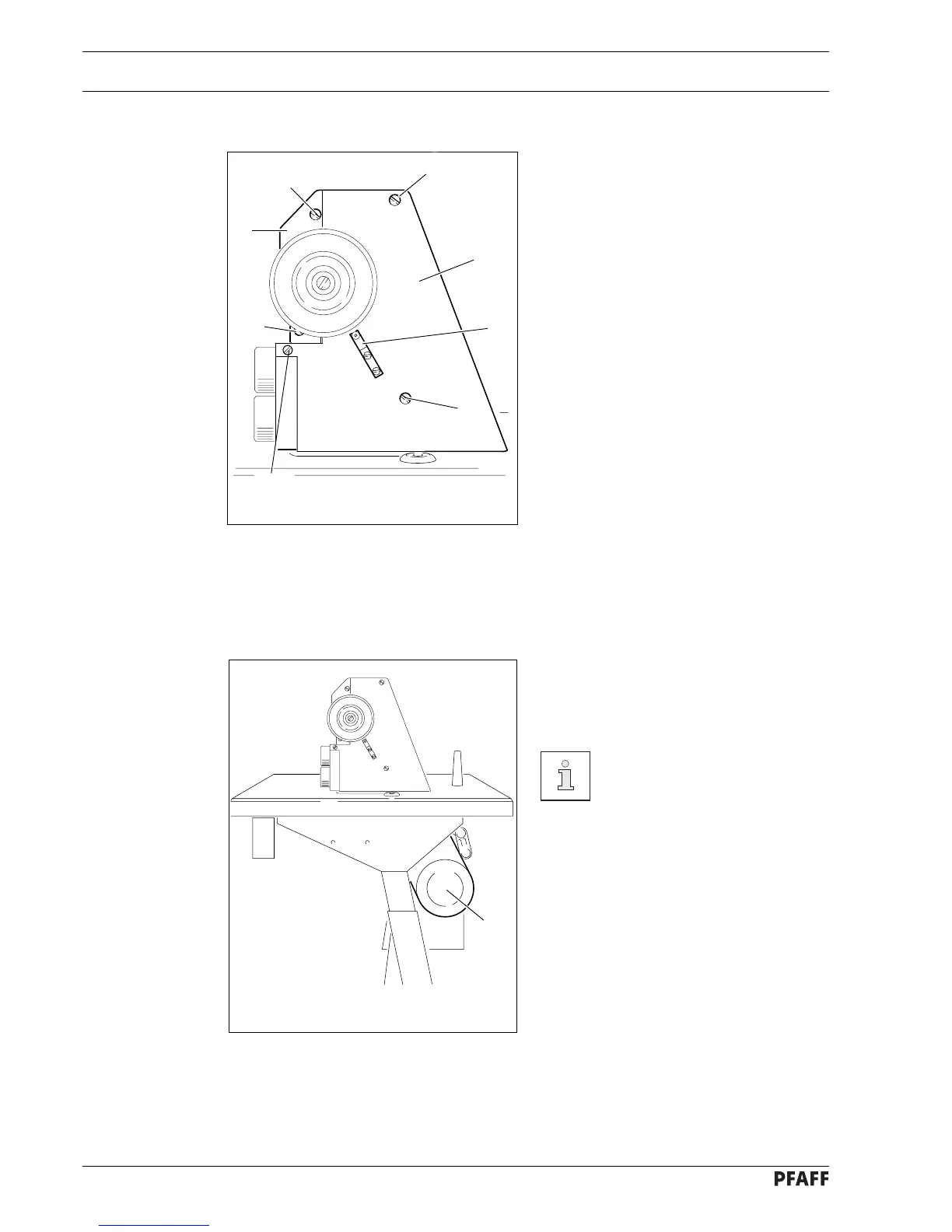

8.01.05 Fitting the bottom v-belt guard
Fig. 8 - 05
● Position v-belt guard 1 in such a way that
motor pulley and v-belt can run freely.
Fig. 8 - 05 shows a Quick
motor. If a different motor is
used, the instruction manual of
the motor must be complied
with.
Fig. 8 - 04
8.01.04 Fitting the upper V-belt guard
● Screw position stop 1 to the right belt
guard section 2.
● Attach belt guard section 3 with screws 4.
● Push the slots of the right belt guard
section 2 behind the heads of retaining
screws 6 and attach it with screws 5
and 6.
1
3
4
4
5
1
2
6
6
