11.07.03 Knife mounting support
Requirement
When the thread trimmer is in its cutting position, the knife mounting support 3 must be
in contact with knife mounting 5.

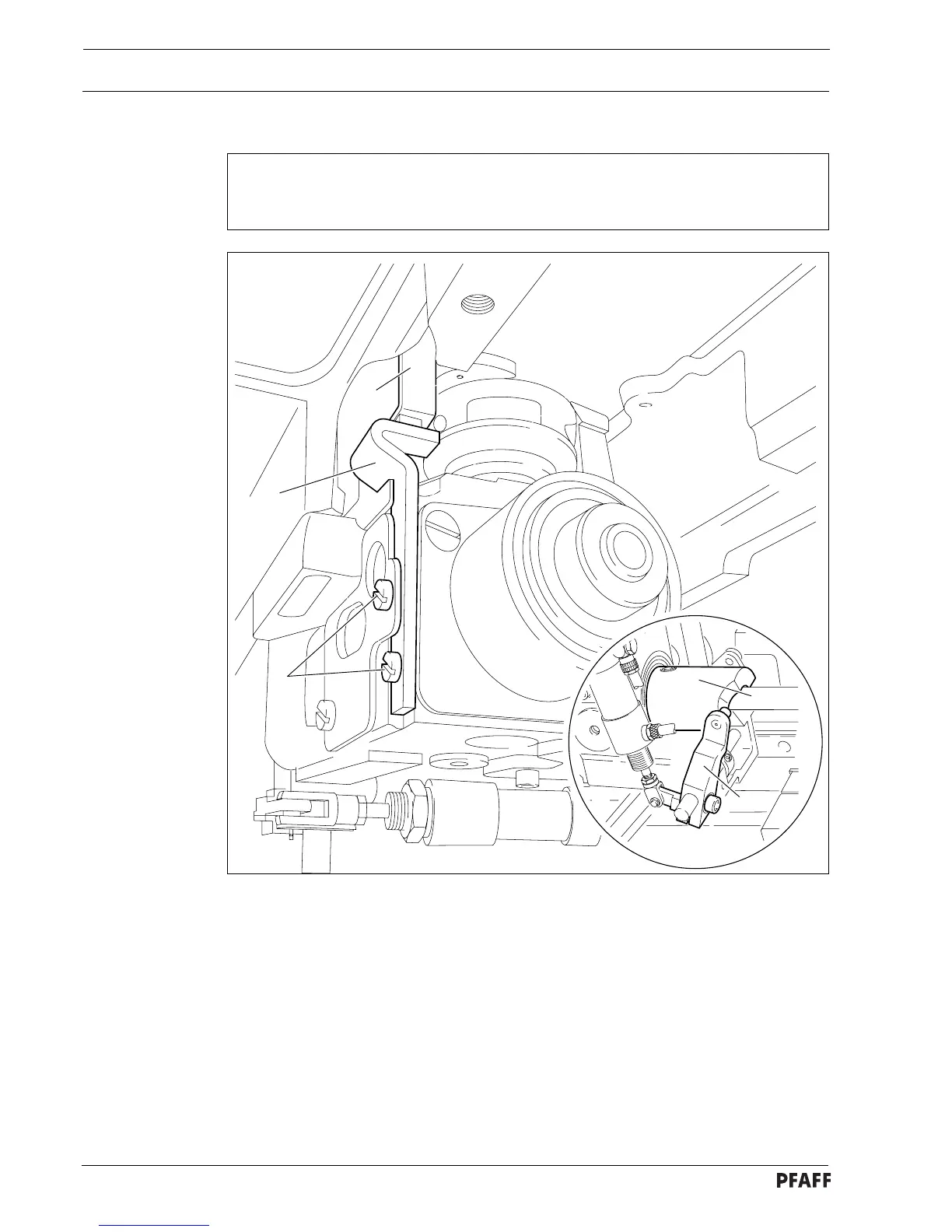

Fig. 11 - 40
● Switch off master switch and turn off compressed air.
● Bring needle to BDC and press roller lever 1 against control cam 2.
● Bring machine into cutting position.
● Adjust knife mounting support 3 (screws 4) on the rear side of the hook bearing
according to the requirement.
3
5
4
