Philips DVDR3400 User Manual

English
15

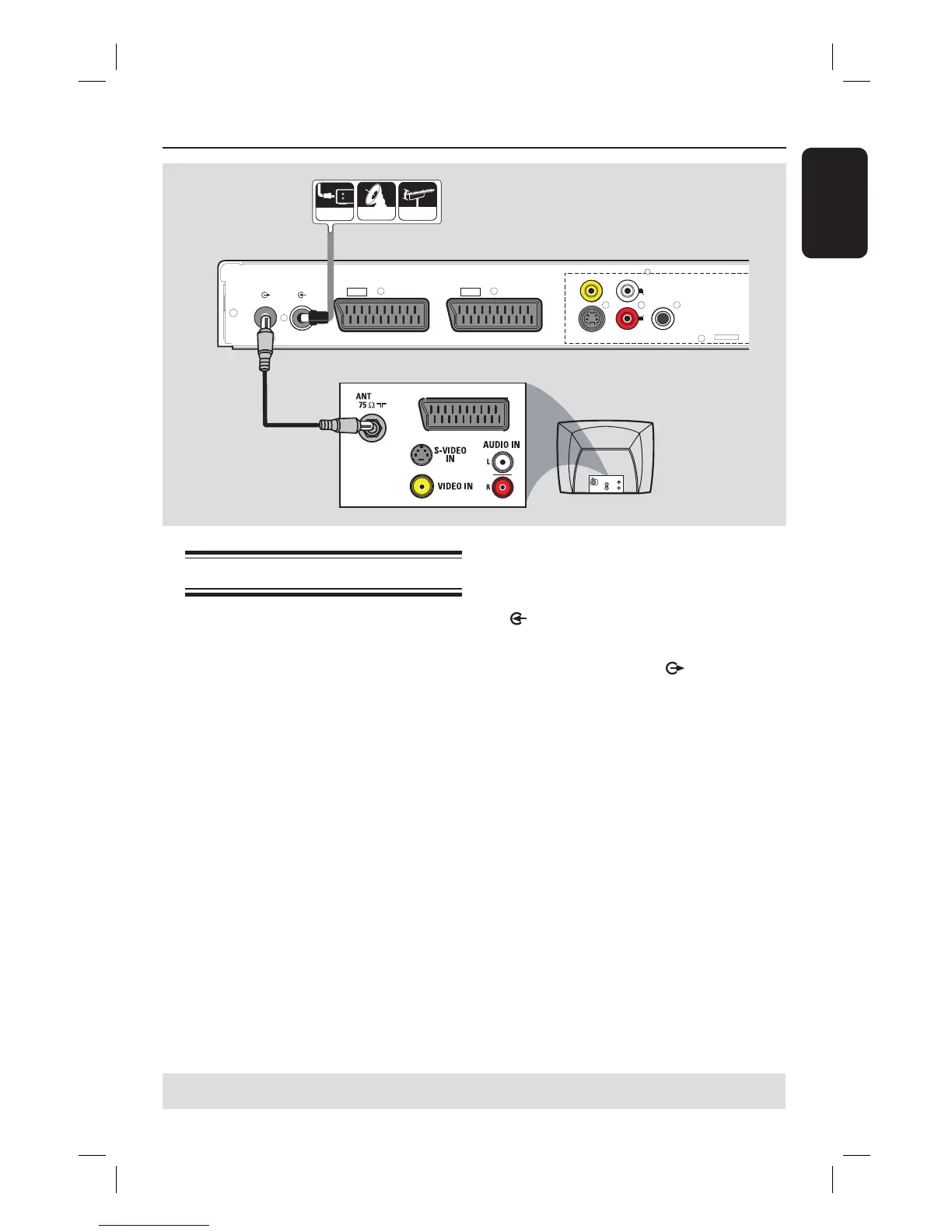

Step 1: Basic Recorder Connections
Connecting the aerial cables
These connections enable you to watch
and record TV programmes using this
recorder. If the aerial signal is connected
via a VCR, Cable Box or Satellite
Receiver, ensure that these devices are
turned on in order to watch or record
the cable programmes.

If you want to connect to a VCR
and/or Cable Box/Satellite Receiver,
see the chapter “Step 2 : Optional
Connections” for the complete
connections to your TV.
A
Connect the existing Aerial/Satellite
Receiver/Cable TV signal (labelled as RF
OUT or TO TV) to the ANTENNA-IN
socket on the recorder.
B
Use the supplied RF coaxial cable to
connect the TV-OUT socket on the
recorder to the aerial input socket (or
labelled as VHF/UHF RF IN) on your TV.
Helpful Hint:
– Depending on how you have currently
connected your TV channel (directly from an
off-air aerial or Cable box or VCR), you may
have to disconnect some of the cables before
you make the aerial connection.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
R
L
OUT 2
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
CABLE
SATELLITE
ANTENNA
AU D IO
OUT
S-V I D E O
IN
VIDEO IN
TV
A
B

Philips DVDR3400 Specifications

Picture and Display

D/A converter	10 bit, 54 MHz
A/D converter	10 bit, 27 MHz

Sound

D/A converter	29 bit, 192 kHz
A/D converter	24 bit, 96 kHz

Power

Power supply	50Hz, 220-240V
Standby power consumption	< 3 W
Power consumption	27 W (Typical)

Weight and Dimensions

Set dimensions	435 x 43 x 322 mm
Packaging dimensions	571 x 124 x 413 mm
Weight incl. Packaging	4.5 kg
Set weight	3.5 kg
