Philips DVDR3400 User Manual

English
21
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
~
MAINS
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AUD IO
OUT
S-VID E O
IN
VIDEO IN
TV
VIDEO
IN
O U T
I
N
AUDIO
L
AUDIO
R
VIDEO
OUT
AUDIO
L
AUDIO
R
VHF/UHF
RF IN
VHF/UHF
RF OUT
TV OUT
TV IN
RF S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
TO TV
CABLE
SATELLITE
ANTENNA

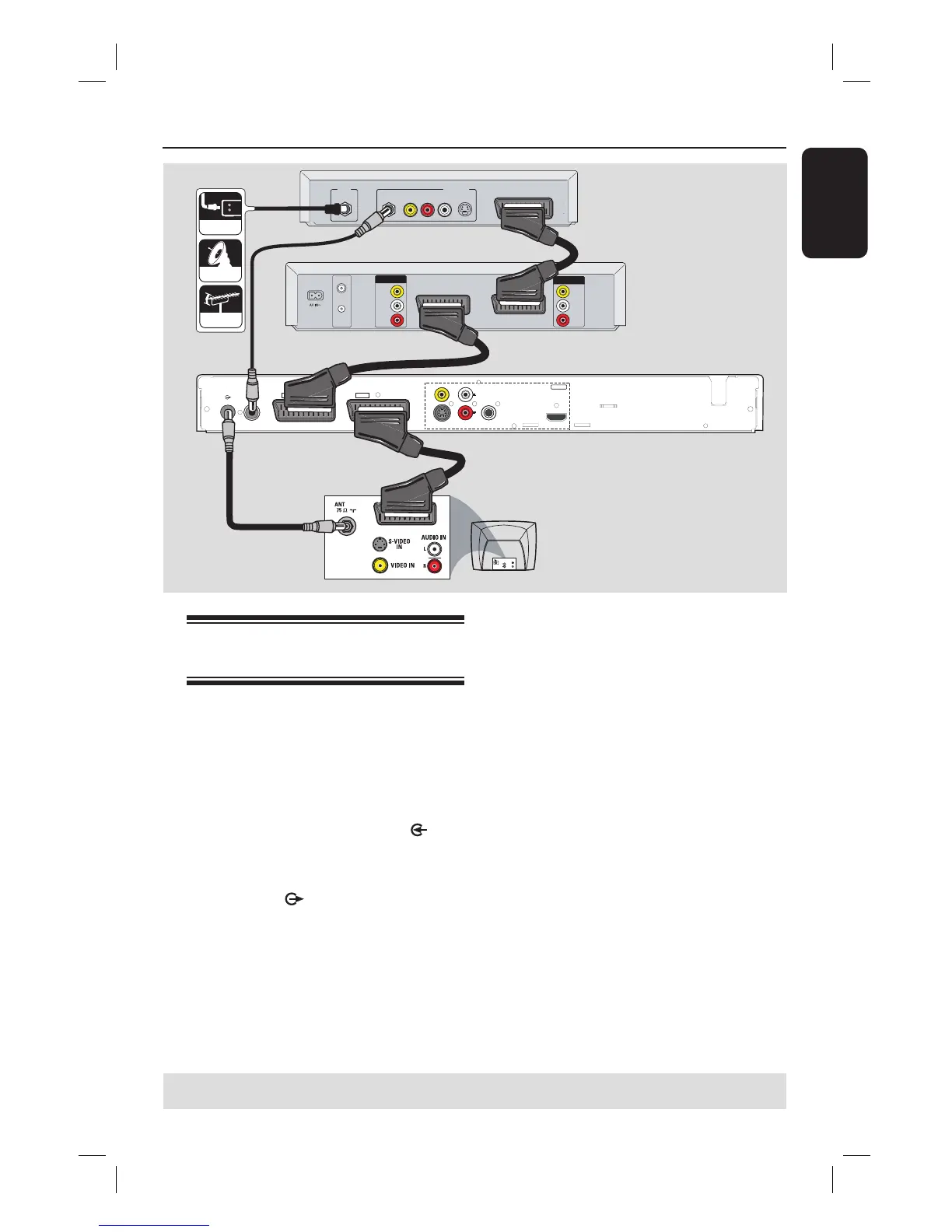

Step 2: Optional Connections (continued)
Connecting to a VCR and
Cable Box/Satellite Receiver
A
Connect the Aerial/Cable TV signal to the
aerial input (RF IN) socket on the Cable
Box/Satellite Receiver.
B
Use the supplied RF coaxial cable to
connect the aerial output (RF OUT)
socket on the Cable Box/Satellite
Receiver to the ANTENNA-IN
socket on the recorder.
C
Use another RF coaxial cable to connect
the TV-OUT
socket on the recorder
to the aerial input socket on the TV.
D
Use the SCART cable to connect the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
E
Use another SCART cable to connect the
EXT2 AUX-I/O socket on the
recorder to the SCART output socket
(or labelled as TV OUT or TO TV) on
the VCR.
F
Use another SCART cable to connect the
SCART input (TV IN) socket on the VCR
to the SCART output socket (or labelled
as TV OUT or TO TV) on the Cable
Box/Satellite Receiver.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
C
A
D
F
Rear of aVCR
(Example only)
E
Rear of a Cable Box
or Satellite Receiver
(Example only)
B

Philips DVDR3400 Specifications

Picture and Display

D/A converter	10 bit, 54 MHz
A/D converter	10 bit, 27 MHz

Sound

D/A converter	29 bit, 192 kHz
A/D converter	24 bit, 96 kHz

Power

Power supply	50Hz, 220-240V
Standby power consumption	< 3 W
Power consumption	27 W (Typical)

Weight and Dimensions

Set dimensions	435 x 43 x 322 mm
Packaging dimensions	571 x 124 x 413 mm
Weight incl. Packaging	4.5 kg
Set weight	3.5 kg
