Step 2: Optional Connections
Connecting to a Cable Box or
Satellite Receiver
Option 1
If your Cable Box/Satellite Receiver
has only an aerial output socket
(RF OUT or TO TV),
see “Step 1: Basic Recorder Connections
– Connecting the aerial cables” for the
complete connections to your TV.

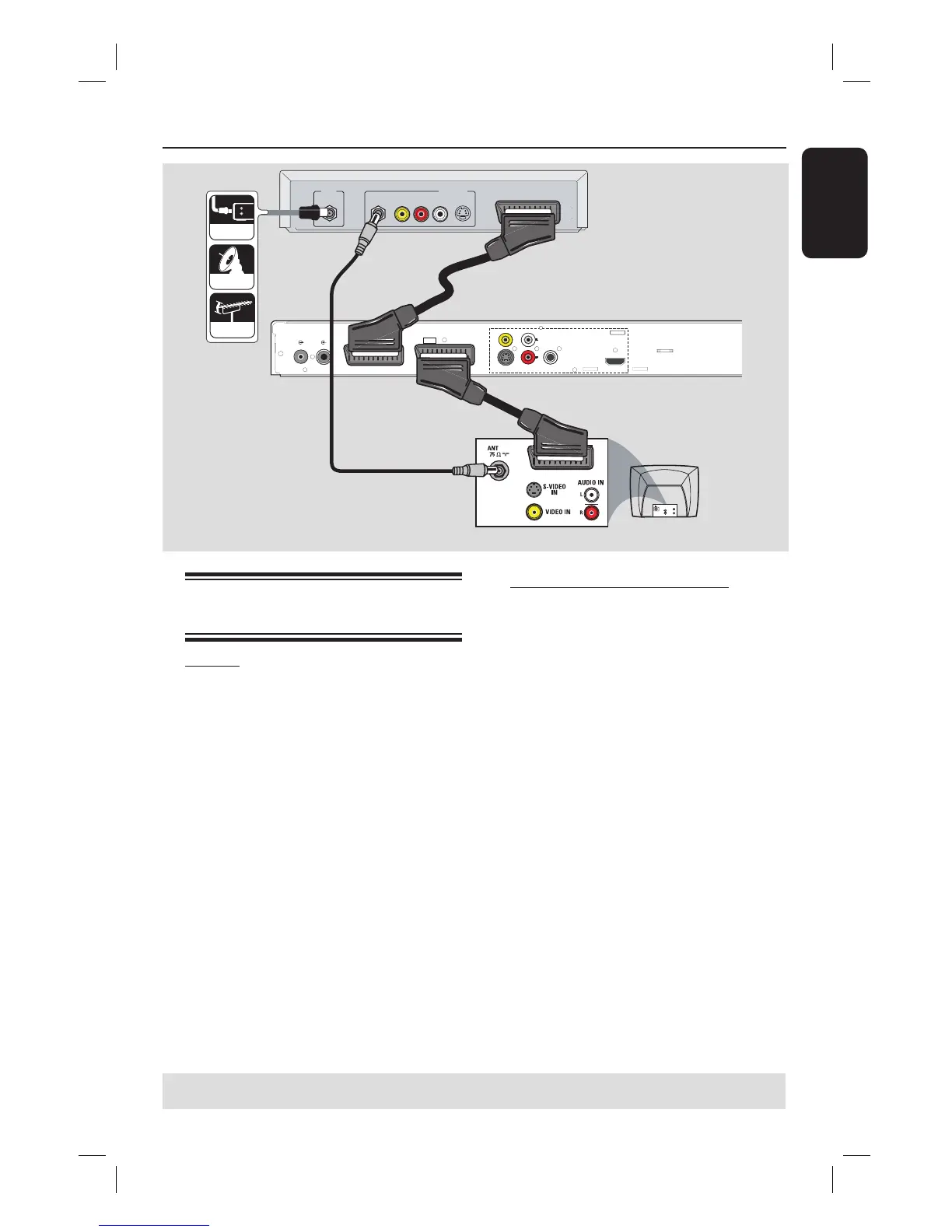

Option 2 (see the above illustration)
If your Cable Box/Satellite Receiver
has a SCART output socket
A
Keep the existing aerial connection from
the Cable Box/Satellite Receiver to your
TV.
B
Use the SCART cable to connect the
EXT1 TO TV-I/O scart socket on the
recorder to the SCART input socket on
the TV.
C
Use another SCART cable to connect the
EXT2 AUX-I/O scart socket on the
recorder to the SCART output socket
(or labelled as TV OUT or TO TV) on
the Cable Box/Satellite Receiver.
To start playback, select the TV channel
directly on the Cable Box/Satellite
Receiver. To view the picture from a
connected external device, press the
TV/DVD key on the remote control.
TIPS: Refer to the respective connected device’s user manual for other possible connections.
A
B
C
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AUD IO
OUT
S-VI D E O
IN
VIDEO IN
TV
RF S-VIDEO
OUT
IN
AUDIO
R L
VIDEO
TO TV
CABLE
SATELLITE
ANTENNA
Rear of a Cable Box
or Satellite Receiver
(Example only)

Philips DVDR3400 Specifications

Picture and Display

D/A converter	10 bit, 54 MHz
A/D converter	10 bit, 27 MHz

Sound

D/A converter	29 bit, 192 kHz
A/D converter	24 bit, 96 kHz

Power

Power supply	50Hz, 220-240V
Standby power consumption	< 3 W
Power consumption	27 W (Typical)

Weight and Dimensions

Set dimensions	435 x 43 x 322 mm
Packaging dimensions	571 x 124 x 413 mm
Weight incl. Packaging	4.5 kg
Set weight	3.5 kg
