English
16
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
Step 1: Basic Recorder Connections (continued)

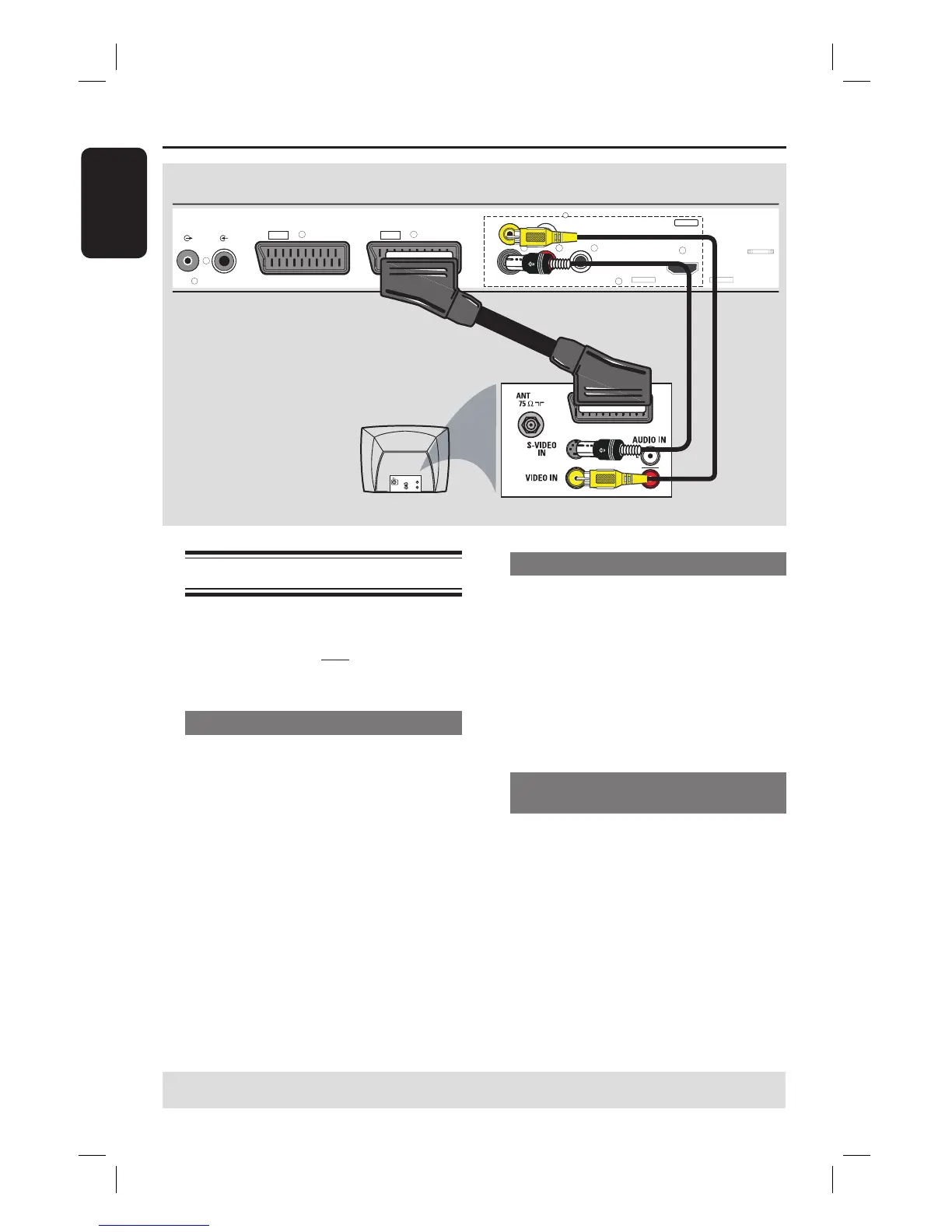

Connecting the video cable
This connection enables you to view the
disc playback from this recorder. You
need to choose only one of the options
below to make your video connection.
Option 1: Using a SCART cable
Use the SCART cable to connect the
EXT1 TO TV-I/O socket on the
recorder to the corresponding SCART
input socket on the TV.
Helpful Hints:
– If your TV set has several SCART sockets,
select the SCART socket that is suitable for
both video output and video input.
– If your TV set displays a selection for the
SCART socket, select ‘VCR’ as the source for
the SCART socket.
– The EXT2 AUX-I/O socket is intended
only for additional devices.
Option 2: Using an S-Video cable
Use an S-video cable (not supplied) to
connect the S-VIDEO OUTPUT
socket on the recorder to the S-Video
input socket (or labelled as Y/C or
S-VHS) on the TV.
Audio connection is required in order
to hear the sound, see next section
“Connecting the audio cables”.
Option 3: Using a Video (CVBS)
cable
Use a composite video cable (yellow -
not supplied) to connect the VIDEO
(CVBS) OUTPUT socket on the
recorder to the video input socket (or
labelled as A/V In, Video In, Composite
or Baseband) on the TV.
Audio connection is required in order
to hear the sound, see next section
“Connecting the audio cables”.
COAXIAL
(DIGITAL AUDIO)
VIDEO (CVBS)
S-VIDEO (Y/C)
AUDIO
HDMI
R
L
OUTPUT
OUT 2
OUT 3
OUT 1
ANTENNA-IN
TV-OUT
TO TV - I/O
EXT
1
AUX - I/O
EXT
2
AU D IO
OUT
S-V ID EO
IN
VIDEO IN
TV
Option 1
Option 2
Option 3
