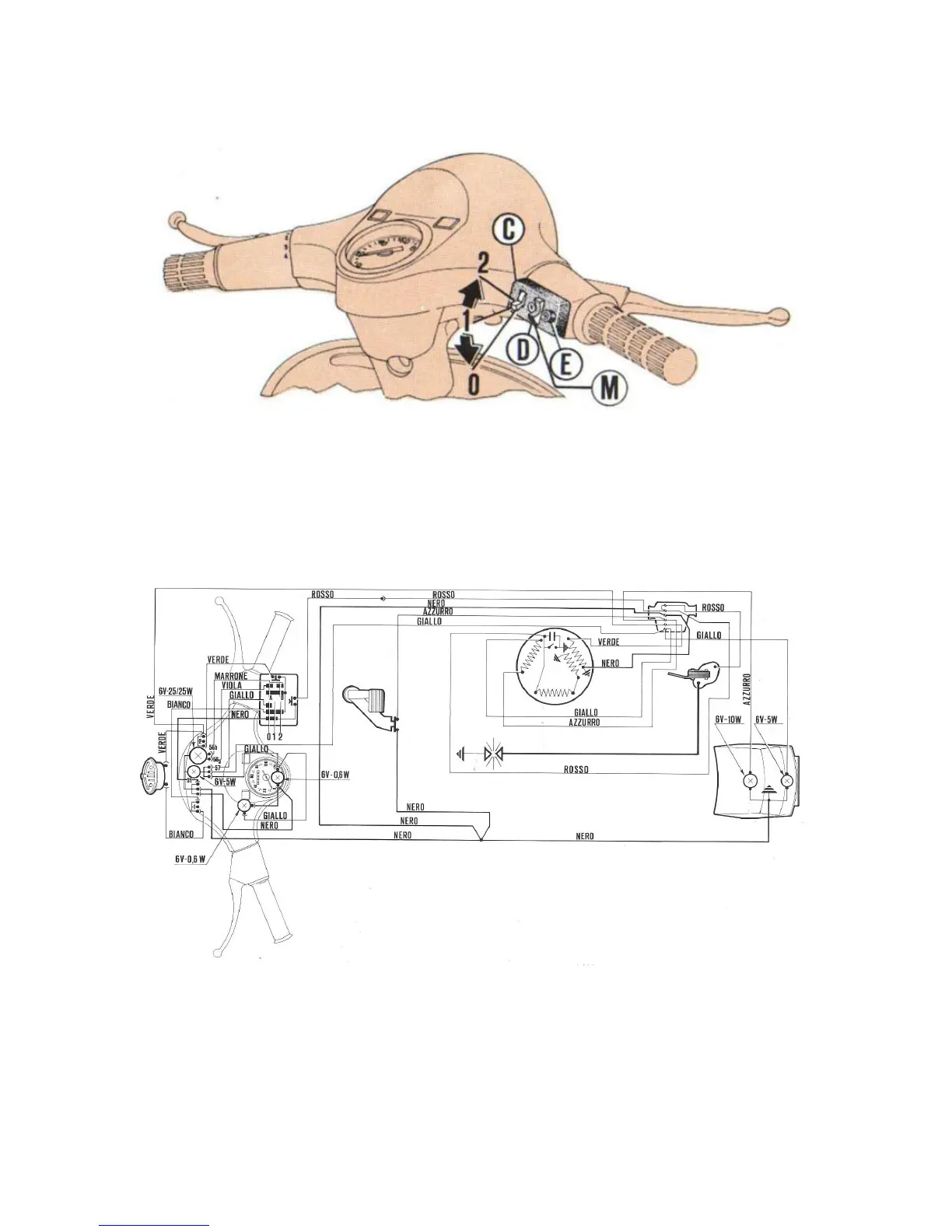

Fig. 6 – Positions of the switch <<C>>
<<C>> - 0 = Lights off - 1 = Pilot lights, tail lamp, lighting system tell tale lamp and
speedometer on. - 2 = Headlamp lights, front parking light and tail lamp,- lighting system
indicator light and speedometer on. D: Switch lever high and low beam) E: Horn button.
M. Engine cutout push button.
Fig. 7 – Electrical equipment diagram
Legend:
Bianco = White Rosso = Red Viola = Violet Marrone = Brown
Azzurro = Blue Giallo = Yellow Nero = Black Verde = Green
