PIAGGIO Vespa P200E User Manual

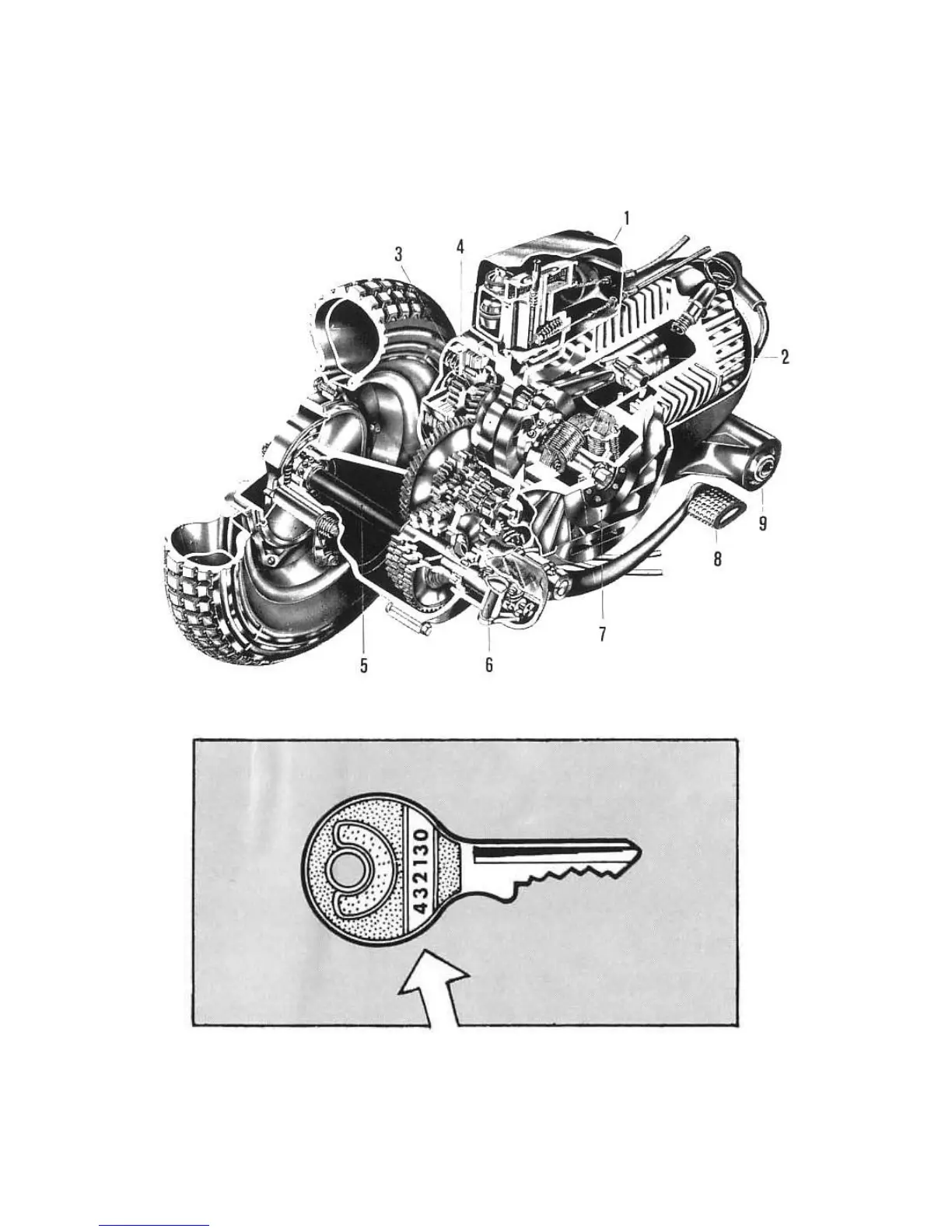

1. Group carburettor-air cleaner - 2. Piston - 3. Crankshaft - 4. Clutch - 5. Mainshaft and gear pinion
assy - 6. Gear shifter - 7. Flywheel magneto - 8. Kick-starter - 9. Crankcase swinging arm clutch side
(pivoted to the frame).
Fig. 1 – Engine section
Notice - Take note of the number marked on the keys of the vehicle, because if that one
is requested as spare part, there is no possibility of identification.

PIAGGIO Vespa P200E Specifications

General

Brand	PIAGGIO
Model	Vespa P200E
Category	Scooter
Language	English
