SETTING THE HEADLAMP
Place the unloaded vehicle on a level floor at 10 m. (32.8 feet) about from a twilight white
screen (see fig. 20) and take care that the vehicle axis is perpendicular to then screen.
Draw a horizontal line « b - b » whose height «B» from the ground correspond to 0.9xC
(see fig. 20) ; with the headlamp switched on the dipped beam position, the horizontal line
of demarcation between the dark zone and the lighted one should not be over the
horizontal « b - b » line.
Notice - The operation of headlamp setting can be carried out also with the driver only
sitting on the machine. In this case, of course, the beam alignment should be altered
whenever the scooter is being ridden by both driver and passenger.
Notice - Should the front parking light bulb fail, before fitting a replacement, check the rear
light bulb for serviceability and vice versa.

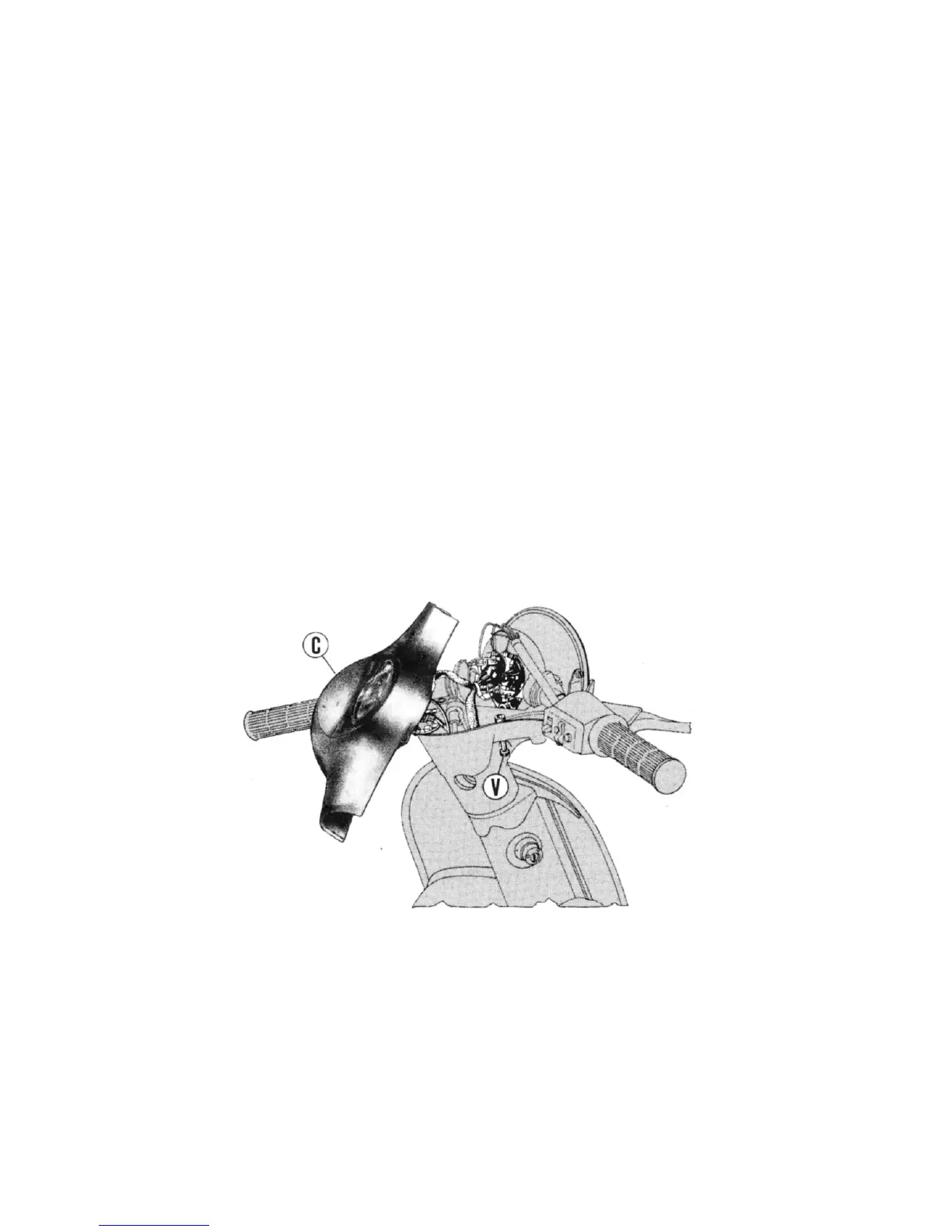

Fig. 19 - Handlebars cover dismantling
