TORQUE CONVERTER Drive Clutch
Page 17-8 2003 Pioneer 1200/1200SE Gasoline Vehicle Maintenance and Service Manual
17
Inspection of Drive Clutch Parts, Continued:

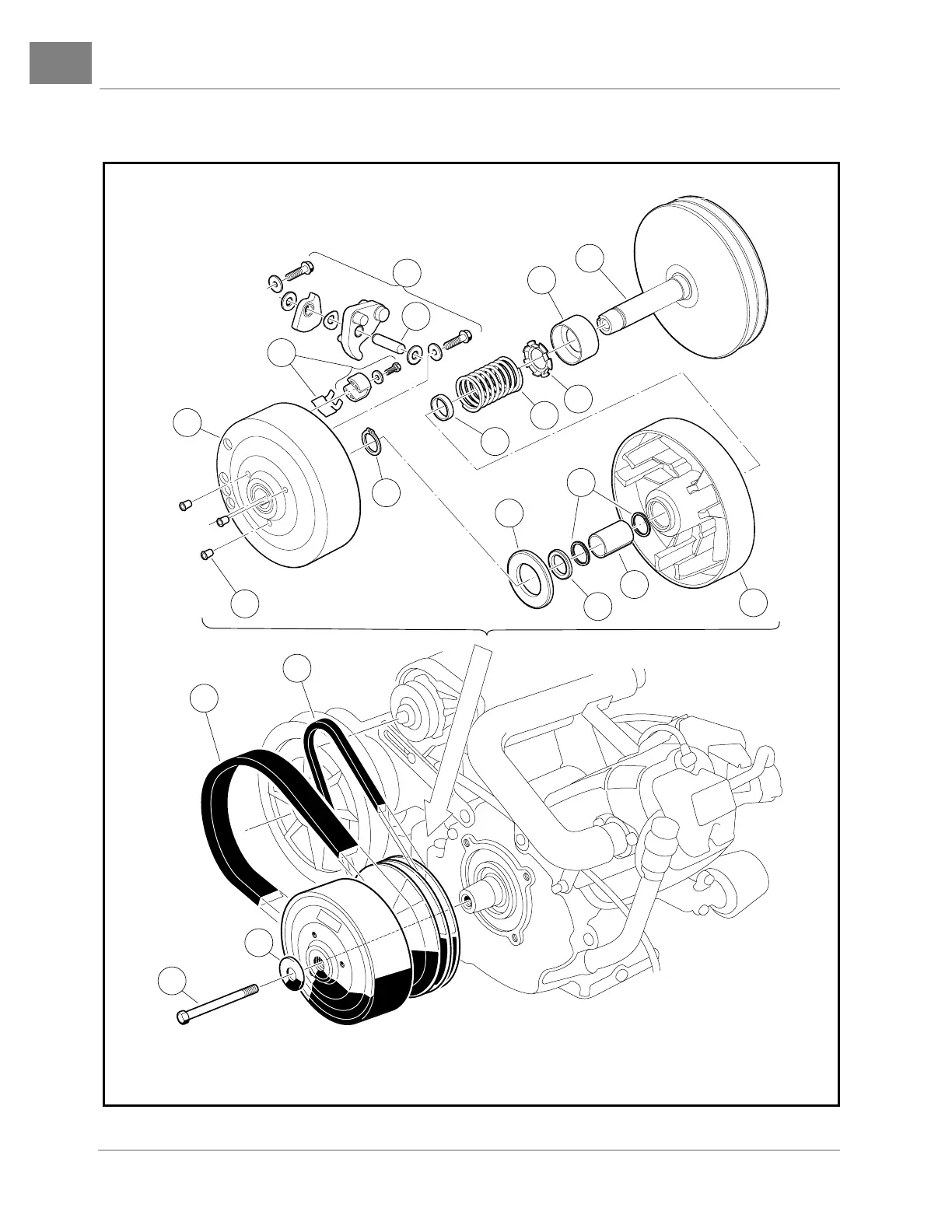

Figure 17-7 Drive Clutch Assembly
2
1
3
5
4
13
6
23
7
11
12
16
15
14
22
20
21
17
19
10
TYPICAL
3 PLACES
