BODY AND TRIM Front Seat Support
Page 4-6 2003 Pioneer 1200/1200SE Gasoline Vehicle Maintenance and Service Manual
4
FRONT SEAT SUPPORT
See General Warning, Section 1, Page 1-1.
FRONT SEAT SUPPORT REMOVAL
1. Completely remove both front seats (2) from the vehicle (Figure 4-3, Page 4-6).
2. Remove park brake equalizer cable from park brake handle. See Equalizer Cable Removal, Section 6,
Page 6-33.
3. Disconnect cable from differential lock control. See step 5 in Unitized Transaxle Removal, Section 16,
Page 16-6.

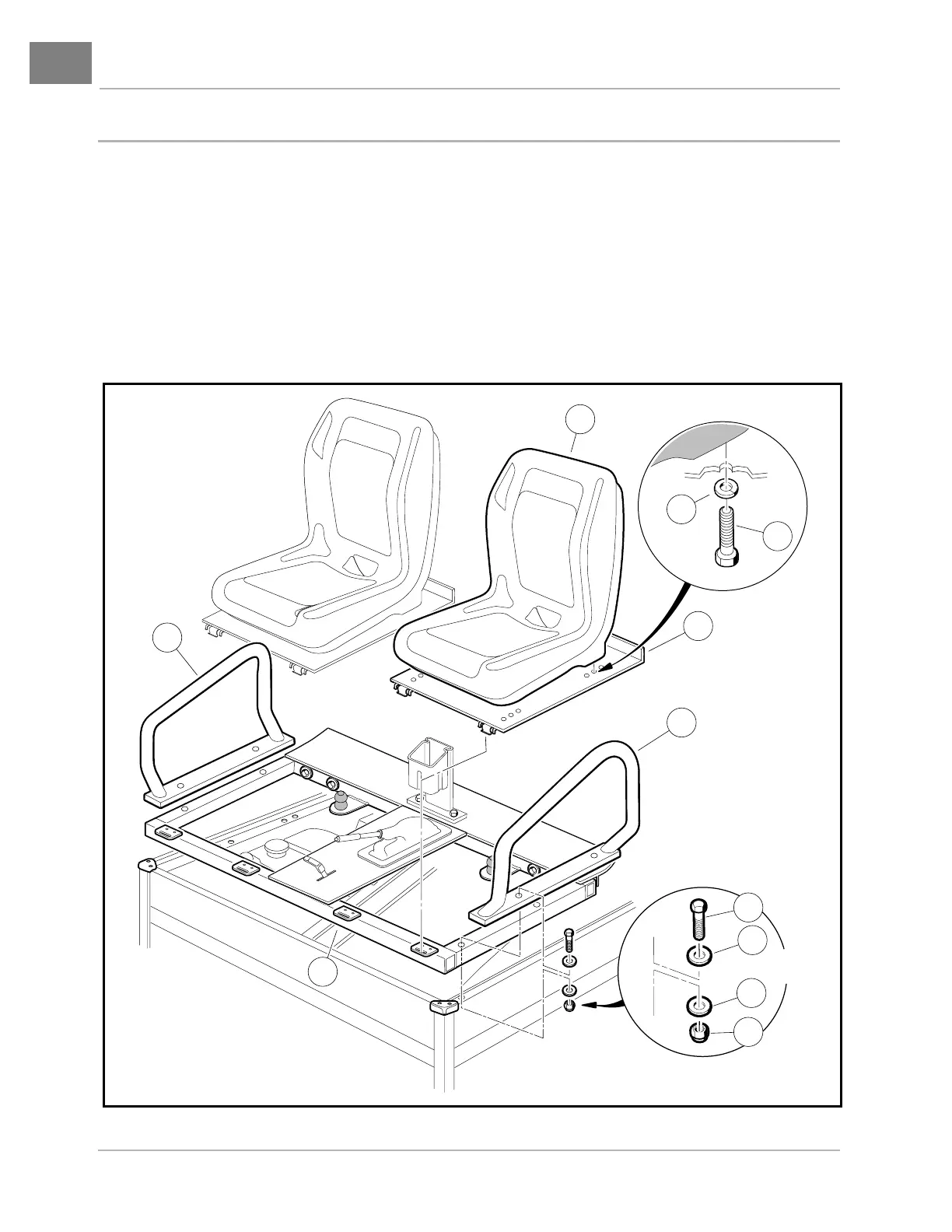

Figure 4-3 Front Seat Support
4
5
TYPICAL 4
PLACES
8
9
9
10
11
1
12
2
3
