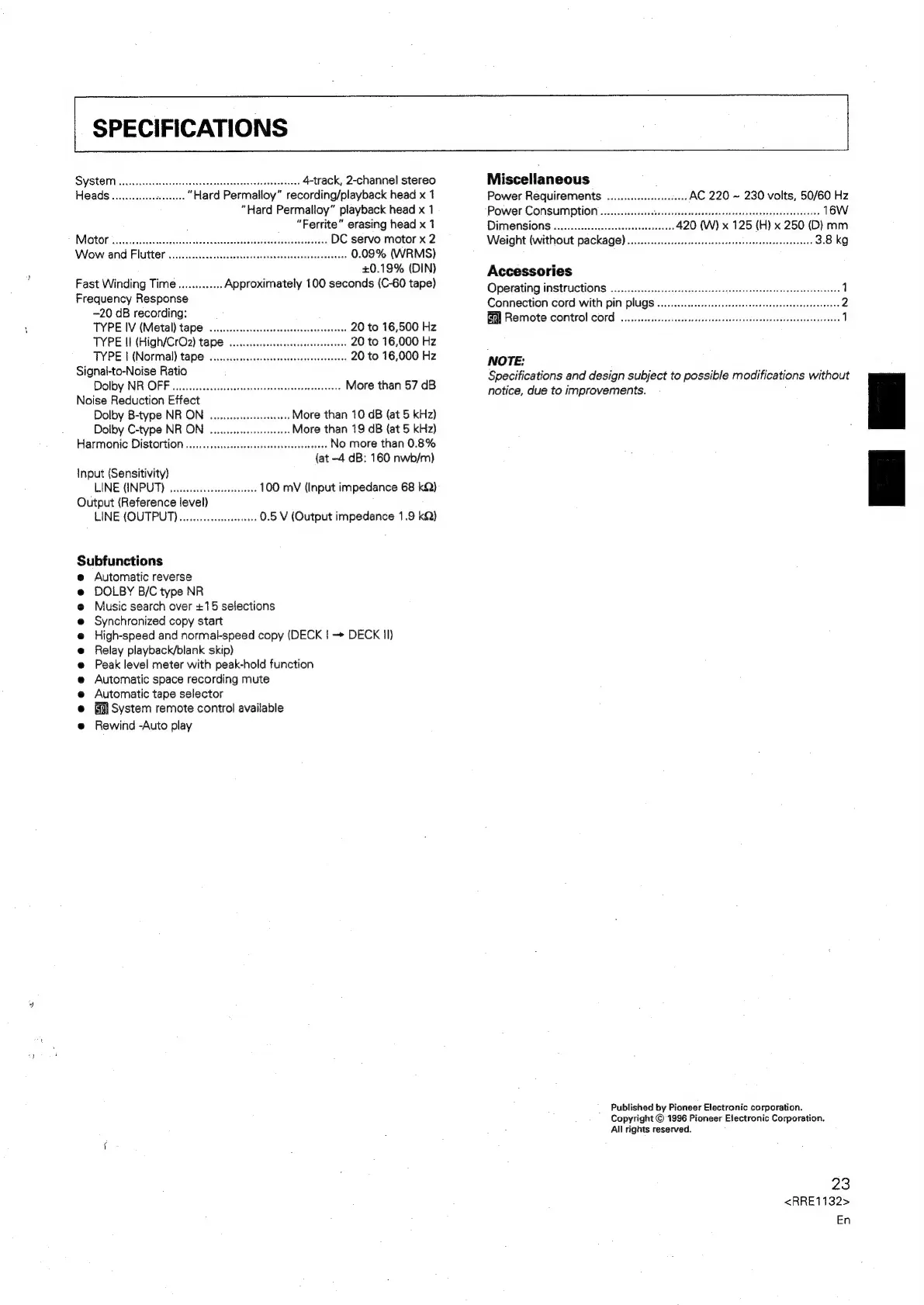

Pioneer CT-W205R Operating Instructions

SPECIFICATIONS
“Hard Permalloy” playback head x 1
“Ferrite” erasing head x 1
MOROF siecisxiees tvcceseiSessccevedsdotasevisshiecsctateveastevens DC servo motor x 2
Wow and Flutter ...........ccccscseceecssecseeesseeeessesesceeeeses 0.09% (WRMS)
+0.19% (DIN)
Fast Winding Time............. Approximately 100 seconds (C-60 tape)
Frequency Response
~-20 dB recording:
TYPE IV (Metal) tape... cceesececeseeecseeaeeseenenee 20 to 16,500 Hz
TYPE II (High/CrO2) tape . ... 20 to 16,000 Hz
TYPE | (Normal) tape oo... cee esseeseescetecnecteeeeee 20 to 16,000 Hz
Signal-to-Noise Ratio
Dolby NR OFF a s.ccccccsssschscctaerssstecashictovesssinte More than 57 dB
Noise Reduction Effect
Dolby B-type NR ON ue eeeeeeee More than 10 dB (at 5 kHz)
Dolby C-type NR ON ... .... More than 19 dB (at 5 kHz)
Harmonic Distortion .0........cccceseesseceneseenreeeeenens No more than 0.8%
{at -4 dB: 160 nwb/m)
input (Sensitivity)
LINE (INPUT) occ eeeeeeneteeee 100 mV (Input impedance 68 kQ)
Output (Reference level)
LINE (QUTPUT) .... cee eeeeeseeeeees 0.5 V (Output impedance 1.9 kQ)
Subfunctions
Automatic reverse
DOLBY B/C type NR
Music search over +15 selections
Synchronized copy start
High-speed and normal-speed copy (DECK | > DECK II)
Relay playback/blank skip)
Peak level meter with peak-hold function
Automatic space recording mute
Automatic tape selector
System remote control available
Rewind -Auto play
Miscellaneous
Power Requirements .............: eee AC 220 ~ 230 volts, 50/60 Hz
‘Power ConSumption ......cccccsscsecsseseseescecceeeesetseeesseetsseeeseeasereess 16W
Dimensions ....0.... eee ..420 (W) x 125 (H) x 250 (D) mm
Weight (Without package)... cccceseesecereesereereserasseceeenaseaens 3.8 kg
Accessories
Operating instructions \«..5..cc6c.ccreuveae cece srateediaraeeasestie?
Connection cord with pin plugs we
Remote Control COP ....ceessscssssccscscserstsesescssectsscnseeseeeseeseeeseesees
NOTE:
Specifications and design subject to possible modifications without
notice, due to improvements. ;
Published by Pioneer Electronic corporation.
Copyright © 1996 Pioneer Electronic Corporation.
All rights reserved.
23
<RRE1132>
En

Pioneer CT-W205R Specifications

Power

power requirements for U.K. and Australian models	AC 220 - 230 volts, 50/60 Hz
power requirements for U.S. and Canadian models	AC 120 volts, 60 Hz
power consumption	16W

Audio Specifications

wow and flutter	0.09% (WRMS)
frequency response for TYPE IV (Metal) tape	20 to 16, 500 Hz
frequency response for TYPE II (High/CrOz) tape	20 to 16, 000 Hz
frequency response for TYPE I (Normal) tape	20 to 16, 000 Hz

Signal and Noise

signal-to-noise ratio with Dolby NR OFF	More than 57 dB
noise reduction effect with Dolby B-type NR ON	More than 10 dB (at 5 kHz)
noise reduction effect with Dolby C-type NR ON	More than 19 dB (at 5 kHz)

Input and Output

input sensitivity for LINE (INPUT)	100 mV (Input impedance 68 kΩ)
output reference level for LINE (OUTPUT)	0.5 V (Output impedance 1.9 kΩ)
harmonic distortion	No more than 0.8% (at -4 dB: 160 nwb/m)

Weight and Dimensions

dimensions	420 (W) x 125 (H) x 250 (D) mm
weight for U.K. and Australian models	3.9 kg
weight for U.S. and Canadian models	3.8 kg
