55
En
Use Other Equipment With Your Flat Panel Display
06
6.3.2 Specify the HDMI Input Type
To select a signal type, follow the steps below.
1 ) Select the Input for the connected equipment.
Press the
INPUT
button (remote control or panel) until the correct input is showing (INPUT 5, INPUT 6,
INPUT 7, or INPUT 8).
2 ) Access
Input Setup 2/2
through the
Input Setup
menu
.
3 ) Select
INPUT 5(HDMI 1), INPUT 6(HDMI 2), INPUT 7(HDMI 3)
or
INPUT 8(HDMI 4)
.
4 ) Select
Signal Type
from the submenu.
5 ) Select the appropriate option.
6 ) Press EXIT to exit the menu.

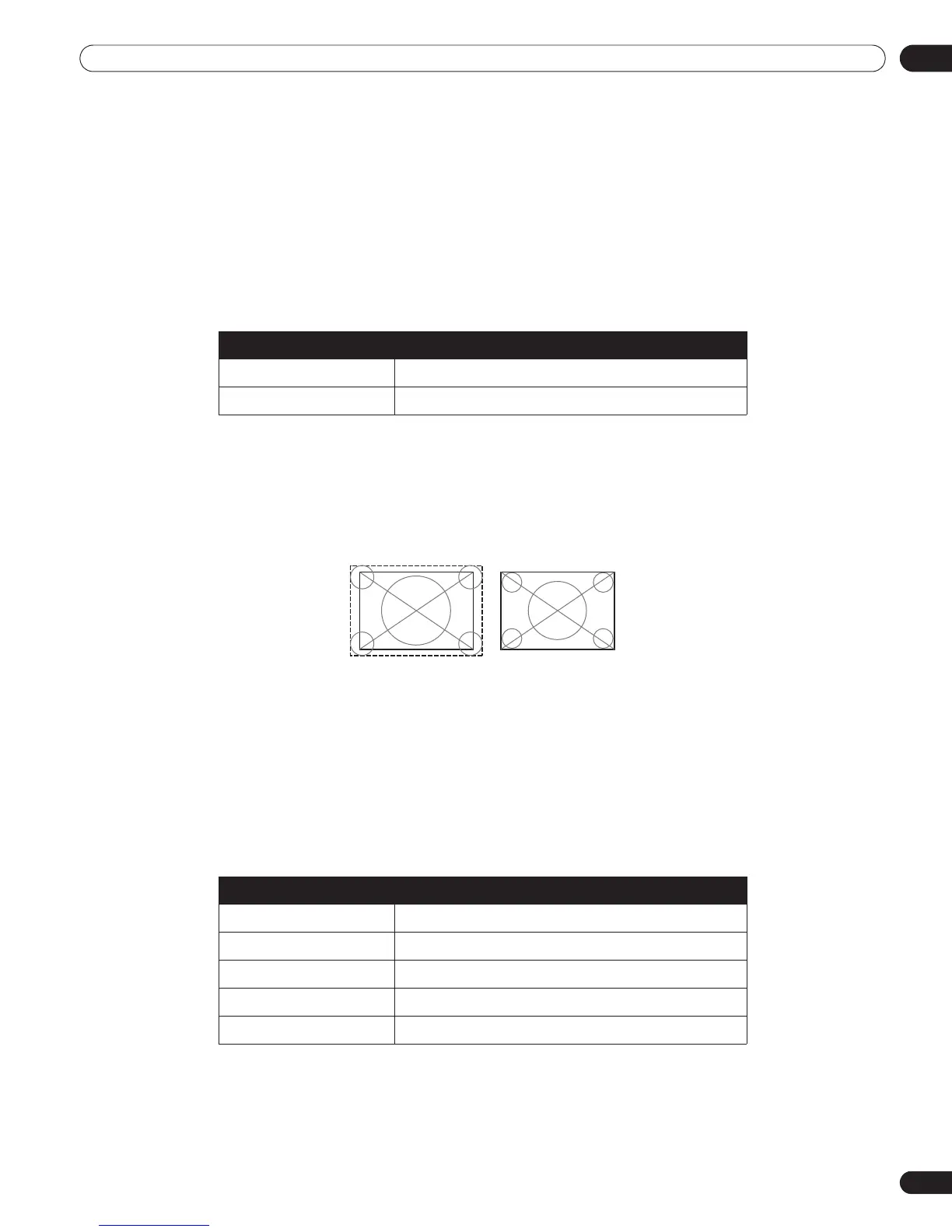

In Video mode, the image is over-scanned (enlarged) but the panel automatically switches to PC when receiving
computer signals. In PC mode, the image displays in full size for optimum image quality.
6.3.3 Specify a Digital HDMI Signal Type
For the correct digital video signal type, check the operating manual that came with the other equipment.
To assign the type of digital signal,follow the steps below.
1 ) Access
Input Setup 2/2
through the
Input Setup
menu
.
2 ) Select
INPUT 5(HDMI 1), INPUT 6(HDMI 2), INPUT 7(HDMI 3)
or
INPUT 8(HDMI 4).
3 ) Select
Video
from the submenu.
4 ) Select the type of digital video signal recommended for the attached device.
5 ) Press EXIT to close the menu.
If an image fails to appear, specify another digital video signal type. Type parameters other than Auto need to be
checked for natural colorings.
Option Description
Video use except when a PC is connected (default)
PC when a PC is connected to HDMI input terminal
Type Description
Auto automatically identifies input digital signals
1 (YUV422) Digital Component Video signals (4:2:2) locked
2 (YUV444) Digital Component Video signals (4:4:4) locked
3 (RGB16-235) Digital RGB signals (16 to 235) locked
4 (RGB0-255) Digital RGB signals (0 to 255) locked
Video (over-scan)
PC (under-scan)
PRO-141FD_PRO-101FD.book Page 55 Monday, May 12, 2008 3:27 PM
