Introduction to the Flat Panel Displays
1.2 Control Options: Get to Know Your Flat Panel Display
You can operate your flat panel display from the panel buttons or with the remote control. The following sections
provide button locations/operations for the panel and the remote control.
1.2.1 Control Buttons and More on the Flat Panel Display
Your flat panel display has buttons, indicators, and sensors on the lower front bezel with more buttons on the rear
panel. Refer to the drawings below for specific locations and functions. Or, to identify back ports and terminals
only, check the terminal position sheet located near the panel’s terminal compartment.
Terminals on the rear panel are common to both models.

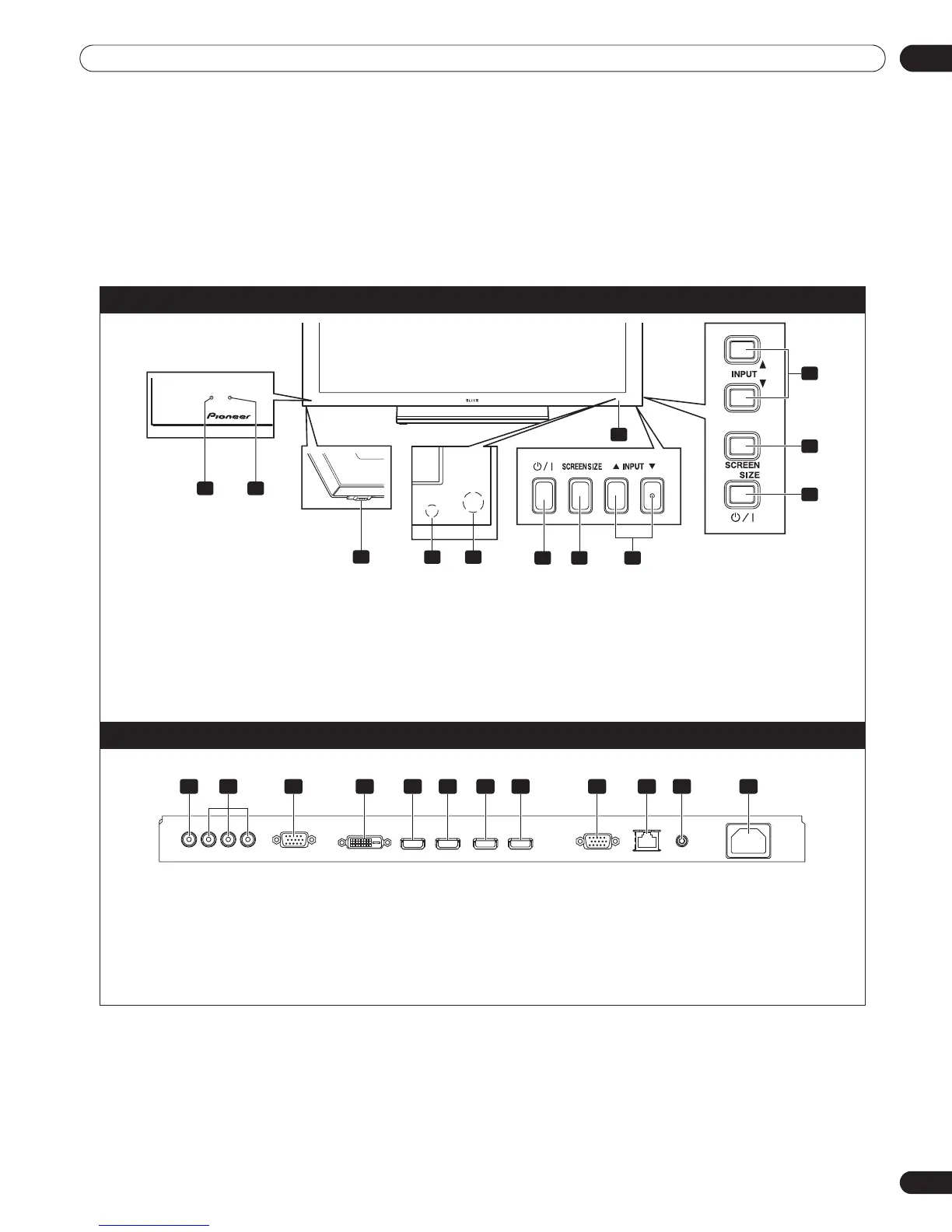

PRO-141FD/PRO-101FD: Face of Panel
1 - Power On indicator
2 - STANDBY indicator
3 - Power On () button
4 - Room Light sensor
5 - Remote Control sensor
6 - STANDBY/ON button
7 - SCREEN SIZE button
8 - INPUT buttons
9 - Bezel (some call it the front frame)
Back of the Panel
(upper bank)
(from left to right)
1 - INPUT 1 terminal (Video)
2 - INPUT 2 terminals (Component, Y, C
B
/P
B
, C
R
/P
R
)
3 - INPUT 3 terminal (Analog RGB)
4 - INPUT 4 terminal (DVI-D)
5 - INPUT 5 terminal (HDMI)
6 - INPUT 6 terminal (HDMI)
7 - INPUT 7 terminal (HDMI)
8 - INPUT 8 terminal (HDMI)
9 - RS-232C terminal (for factory use)
10 - LAN terminal
11 - IR REPEATER OUT terminal
12 - AC In terminal
PRO-141FD
(Right side)
PRO-101FD
(Bottom of the rear panel)
1 3 4 5 6 7 8 9 10 11 122
