Pioneer SX-1010 Service Manual

SX-
1 01

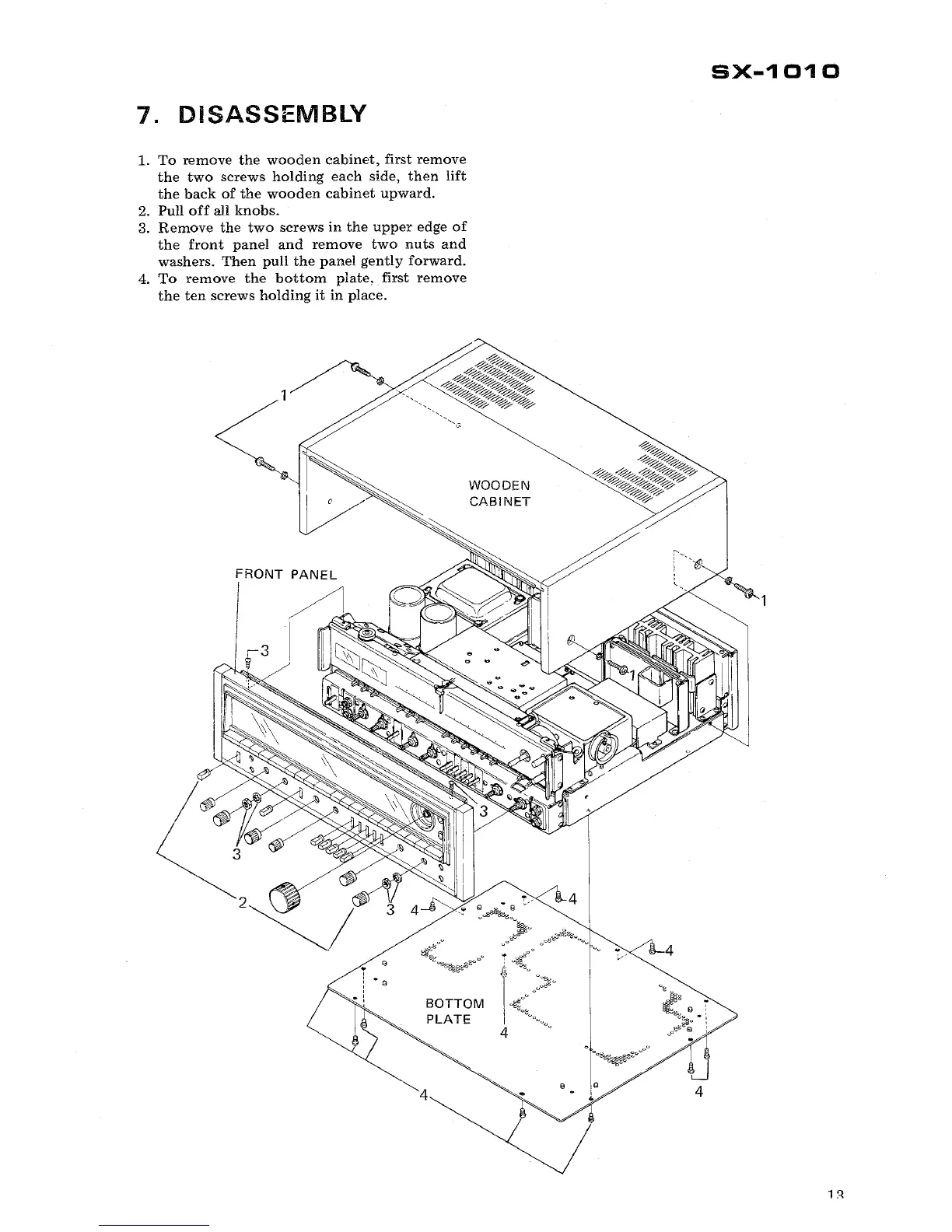

DISASSEMBLY
1. To remove the wooden cabinet
, first remove
the two screws holding each side
, then lift
the back of the wooden cabinet upward.
2. Pull off all knobs.
3. Remove the two
screws in the upper edge of
the front panel and
remove two nuts and
washers. Then pull the panel gently forward.
4. To
remove the bottom plate
, first remove
the ten screws holding it in place.
WOODEN
CABINET
~~p~~
~i'
~%-~"'"
FRONT PANEL
~" '0
I%~"
"""
" 0
0 ~
~~~~~M
""' '""~ ~
~ o
:~o
4 0
. g
1 ~

Pioneer SX-1010 Specifications

General

Brand	Pioneer
Model	SX-1010
Category	Stereo Receiver
Language	English
