Pioneer SX-1010 Service Manual

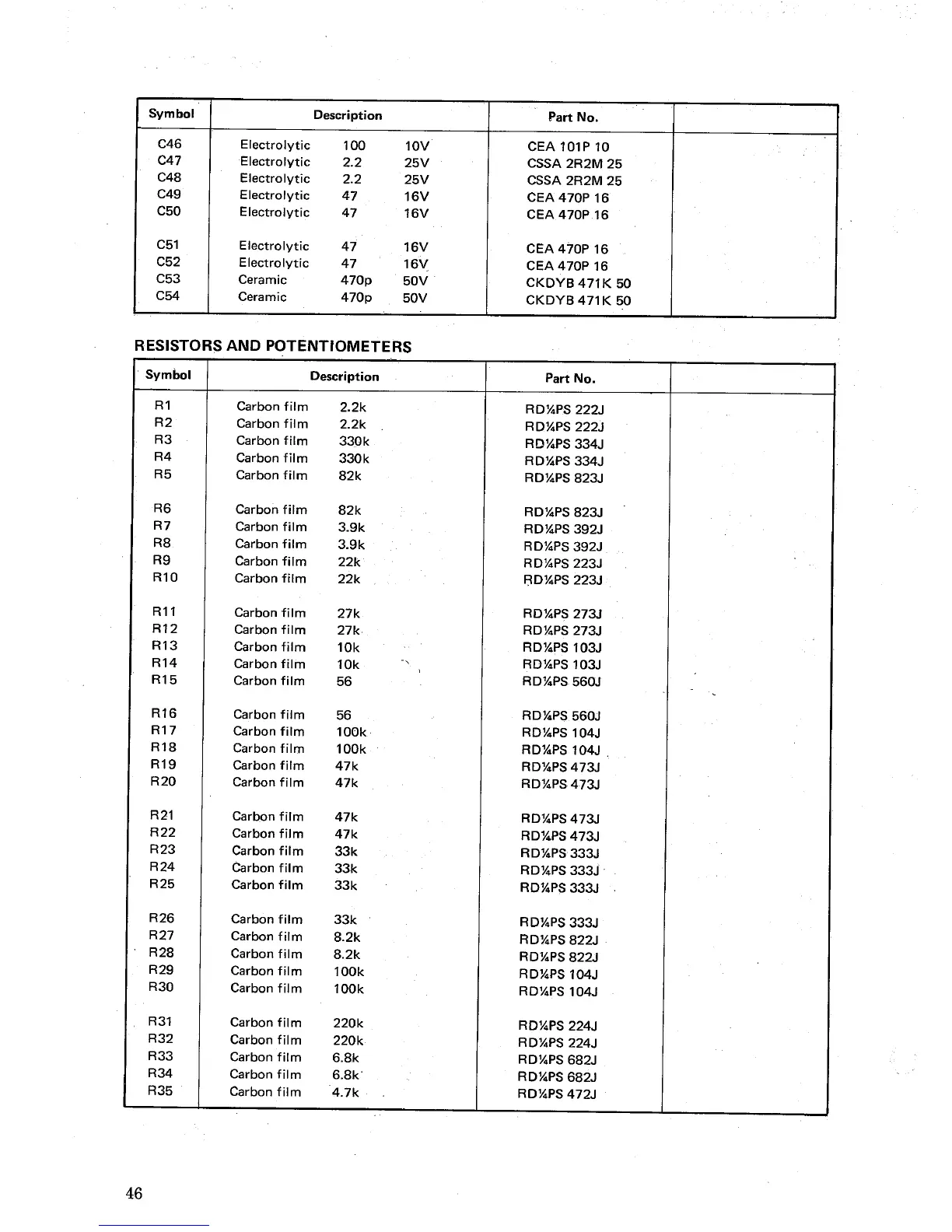

Symbol
Description
Part No.
C46
Electrolytic
100
10V
CEA 101P 10
C47
Electrolytic
25V
CSSA 2R2M 25
C48
Electrolytic
25V
CSSA 2R2M 25
C49
Electrolytic
16V
CEA 470P 16
C50
Electrolytic
16V
CEA 470P16
C51
Electrolytic
16V
CEA 410p 16
C52
Electrolytic
16V
CEA 470P 16
C53
Ceramic
470p
50V
CKDYB 471 K 50
C54
Ceramic
470p
50V
CKDYB 471 K 50
RESISTORS AND POTENTIOMETERS
Symbol
Description
Part No.
Carbon film
RD%PS 222J
Carbon film
RD%PS 222J
Carbon film
330k
RD%PS 334J
Carbon film
330k
RD%PS 334J
Carbon film
82k
RD%PS 823J
Carbon film
82k
RD%PS 823J
Carbon film
RD%PS 392J
Carbon film
RD%PS 392J
Carbon film
22k
RD%PS 223J
R10
Carbon film
22k
FW%PS 223J
R11
Carbon film
27k RD%PS 273J
R12
Carbon film
27k RD%PS 273J
R13
Carbon film
10k RD%PS 103J
R14
Carbon film
10k
RD%PS 103J
R15
Carbon film
RD%PS 560J
R16
Carbon film
RD%PS 560J
R17
Carbon film
1O0k RD%PS 1 04J
R18
Carbon film
1O0k
RD%PS 104J
R19
Carbon film
47k
RD%PS 473J
R20
Carbon film
47k
RD%PS 473J
R21
Carbon film
47k
RD%PS 473J
R22
Carbon film
47k
RD%PS 473J
R23
Carbon film
33k
RD%PS333J
R24
Carbon film
33k
RD%PS 333J
R25
Carbon film
33k
RD%PS 333J
R26
Carbon film
33k
RD%PS 333J
R27
Carbon film
RD%PS 822J
R28
Carbon film
RD%PS 822J
R29
Carbon film
100k
RD%PS 104J
R30
Carbon film
1O0k
RD%PS 1 04J
R31
Carbon film
220k
RD%PS 224J
R32
Carbon film
220k
RD%PS 224J
R33
Carbon film
RD%PS 682J
R34
Carbon film
RD%PS 682J
R35
Carbon film
RD%PS 472J

Pioneer SX-1010 Specifications

General

Power Output	100 watts per channel into 8Ω (stereo)
Tuning Range	FM, MW
Input Sensitivity	2.5mV (MM), 150mV (line)
Speaker Load Impedance	4Ω to 16Ω
Total Harmonic Distortion	0.1%
Signal to Noise Ratio	95dB (line)
Output	150mV (line)
Semiconductors	67 x transistors
Channel Separation	55dB (line)
