Pioneer SX-1010 Service Manual

SX-1 01 0

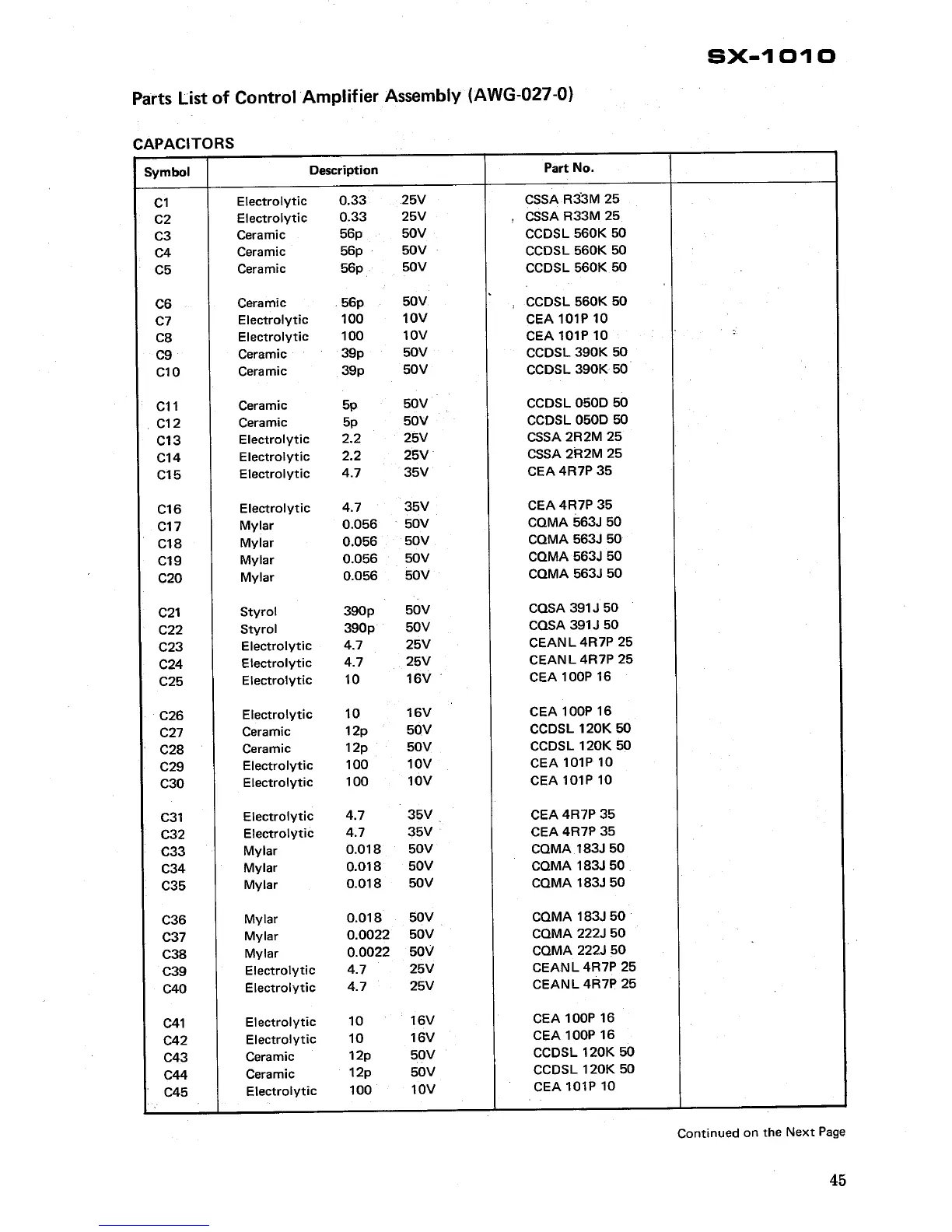

Parts List of Control Amplifier Assembly (AWG-
027-
CAPACITORS
Symbol
Description
Part No.
-c-
Electrolytic
25Y CSSAR3:3M 25
Electrolytic
25Y
CSSA R33M 25
Ceramic
56p
50Y
CCDSL 560K 50
Ceramic
56p
50Y
CCDSL 560K 50
Ceramic
SSp
50Y
CCDSL 560K 50
Ceramic
56p
50Y
CCDSL 560K 50
Electrolytic
100
10Y
CEA 101P 10
Electrolytic
100
10Y
CEA 101P 10
Ceramic
39p
50Y
CCDSL 390K 50
C10
Ceramic
39p
50Y CCDSL 390K50
C11
Ceramic
50Y
CCDSL 050D 50
C12
Ceramic
50Y
CCDSL 050D 50
C13
Electrolytic
25Y
CSSA 2R2M 25
C14
Electrolytic
25Y
CSSA 2R2M 25
C15
Electrolytic
35Y
CEA 4R7P 35
C16
Electrolytic
35Y
CEA 4R7P 35
C17
Mylar
056
50Y
COMA 563J 50
C18
Mylar
056
50Y
COMA 563J 50
C19
Mylar
056
50Y
COMA 563J 50
C20
Mylar
056
50Y
COMA 563J 50
C21
Styrol
390p
50Y
COSA 391 J 50
C22
Styrol
390p
50Y
COSA 391J 50
C23
Electrolytic
25Y
CEANL 4R7P 25
C24
Electrolytic
25Y
CEANL 4R7P 25
C25
Electrolytic
16Y
CEA 100P 16
C26
Electrolytic
16Y
CEA 100P 16
C27
Ceramic
12p
50Y
CCDSL 120K 50
C28
Ceramic
12p
50Y
CCDSL 120K 50
C29
Electrolytic
100
10Y
CEA 101P 10
C30
Electrolytic
100
10Y
CEA 101P 10
C31
Electrolytic
35Y
CEA 4R7P 35
C32
Electrolytic
35Y CEA 4R7P 35
C33
Mylar
018
50Y COMA 183J 50
C34
Mylar
018
50Y COMA 183J 50
C35
Mylar
018
50Y COMA 183J 50
C36
Mylar
018
50Y
COMA 183J 50
C37
Mylar
0022
50Y
COMA 222J 50
C38
Mylar
0022
50Y
COMA 222J 50
C39
Electrolytic
25Y
CEANL 4R7P 25
C40
Electrolytic
25Y
CEANL 4R7P 25
C41
Electrolytic
16Y
CEA 100P 16
C42
Electrolytic
16Y
CEA 100P 16
C43
Ceramic
12p
50Y
CCDSL 120K 50
C44
Ceramic
12p 50Y
CCDSL 120K 50
C45
Electrolytic
100
10Y
CEA 101P 10
Continued on the Next Page
