Pioneer SX-1010 Service Manual

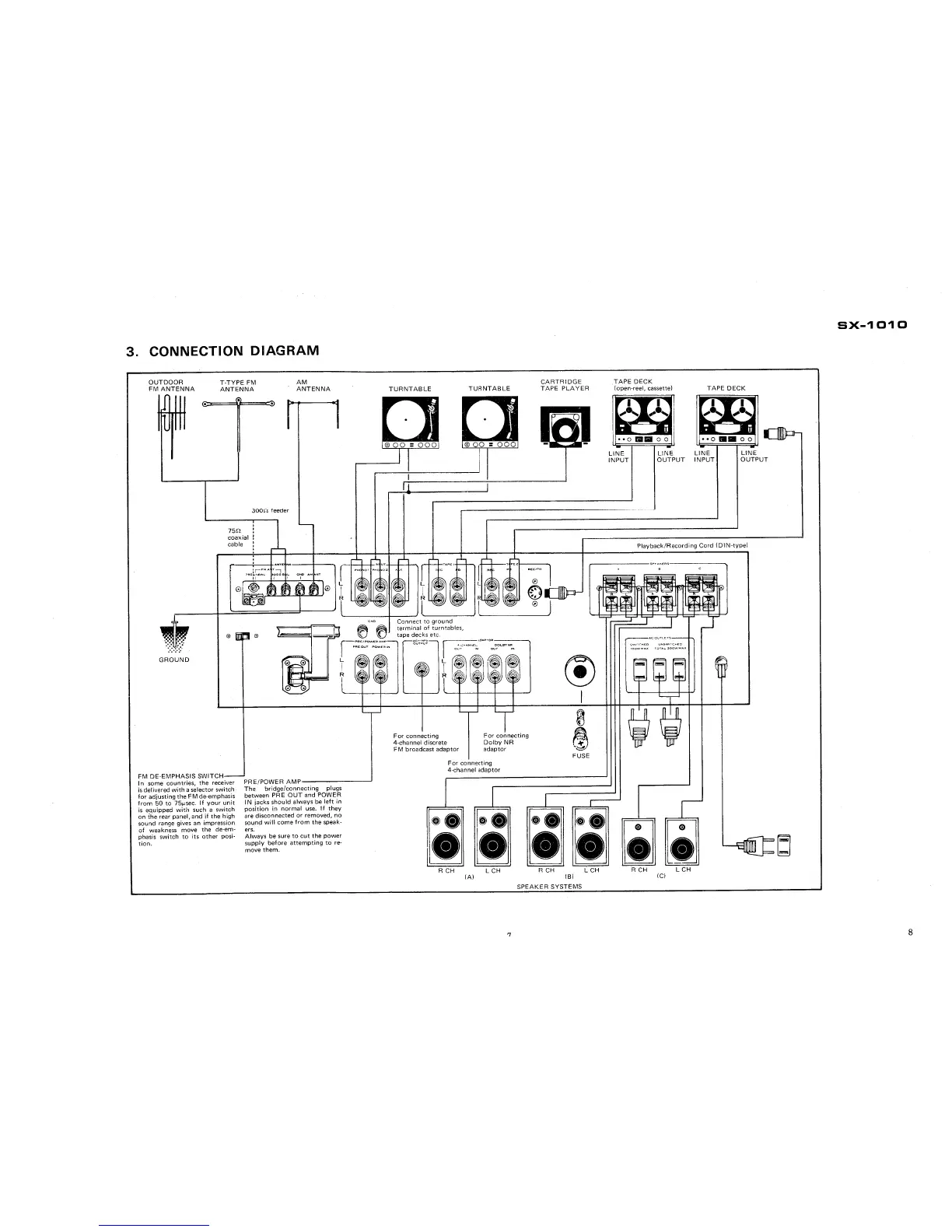

CONNECTION DIAGRAM
OUTDOOR
FM ANTENNA
GROUND
TYPE FM
ANTENNA
300n feeder
75n :
coaxial:
cable
(;)
FM DE-EMPHASIS SWITCH
I n some countries
. the receiver
is delivered with a selector switch
for adjusting the FM de-
emphasis
from 50 to 75!lsec. If your unit
is equipped with such a switch
on the rear panel
, and if the high
sound range gives an impression
of weakness move the de-em-
phasis switch to its other posi-
tion.
ANTENNA
CARTRIDGE
TAPE PLAYER
TURNTABLE
TURNTABLE
(!)
For connecting
4-channel discrete
FM broadcast adaptor
For connecting
Dolby NR
adaptor
For connecting
channel adaptor
PRE/POWER AMP
The
bridge/connecting plugs
between PRE OUT and POWER
I N jacks should always be left in
position in normal use. If they
are disconnected or removed
, no
sound will come from the speak-
ers.
Always be sure to cut the power
supply before attempting to re-
move them.
TAPE DECK
(open-reel, cassette) TAPE DECK
LINE
INPUT
LINE
OUTPUT
LINE
INPUT
LINE
OUTPUT
Playback/Recording Cord (DIN-
type)
FUSE
- R CH
L CH
R CH
L CH
R CH
(C) L
(A)
(B)
SPEAKER SYSTEMS
SX-
1 01 0
