Initial Set up
SURROUND SETUP MENU
Speaker Setting
Starting from this procedure use the SURROUND SETUP menu. To access the menu follow steps 1 – 3 on p. 30
– 31 and in step three choose SURROUND SETUP (Surround Set is shown on the receiver’s display). The steps
below show you how to specify the type of speakers you connected. Use the 5¥∞ buttons (or the MULTI JOG
dial) to make a selection from the on-screen menus, and use the ENTER button to register the information.

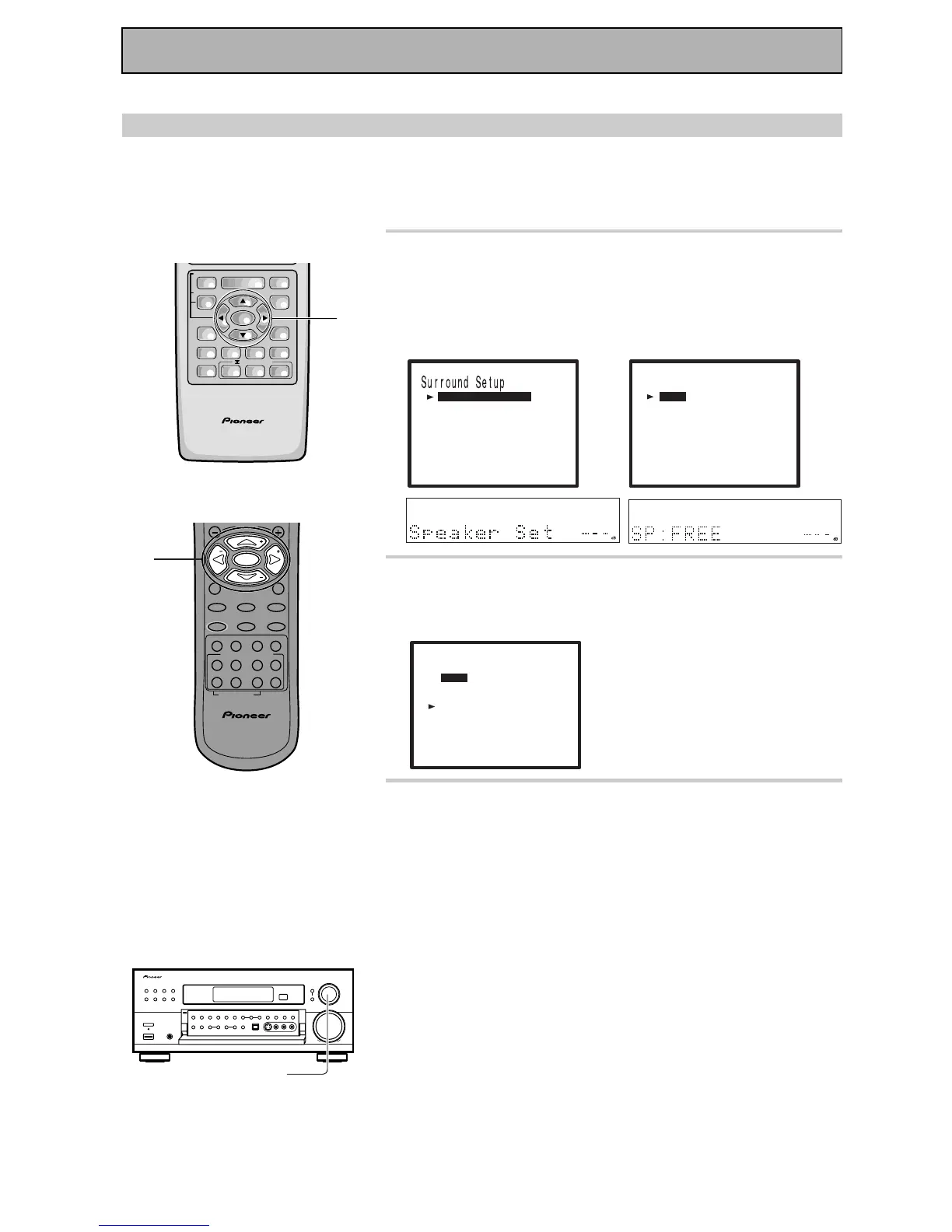

1 “Speaker Setting” (“Speaker Set” on the
front panel) appears in the display. Press
ENTER button.
See “Setting Up for Surround Sound“ on p. 30 – 31 if you are
unsure how to get to the “Speaker Setting” menu.
2 Select either the FREE or THX speaker
setting mode with the 5¥∞ buttons then
press ENTER.
To specify each speaker individu-
ally select FREE.
If you connected a complete set
of THX speakers select THX and
skip the SURROUND BACK part
of step 3 (VSX-859RDS only).
3 Specify the type of speakers you connected.
See the explanations below for the meaning
of each size.
1 Press ENTER. Use the 5 or ∞ buttons (or MULTI JOG dial)
to move the cursor to the speaker you want to adjust.
2 Press ENTER to select that speaker. The speaker name will
flash in the receiver's display.
3 Press 5 or ∞ to move the setting to LARGE, SMALL, or NO
depending on the size of your speakers (you can't select NO
for the FRONT speakers and the SURROUND BACK speak-
ers have a few more settings). See the next page for
detailed explanations.
4 Press ENTER.
5 Repeat 2 – 4 for each speaker.
Depending on your choices the sound will be routed
differently, read below for detailed explanations.
FRONT (default setting is LARGE)
• Select SMALL to send bass frequencies to the subwoofer.
DIGITAL MULTI PROCESSING AMPLIFIER
REMOTE CONTROL UNIT
MENU
ENTER
STEREO/
DIRECT
DSP
THXLIGHT
/DTS/MPEG
MUTE
FUNCTION
REMOTE SETUP
SYSTEM SETUP
INPUT
ATT
ADVANCED
MIDNIGHT
MULTI CH
INPUT
STANDARD
DIGITAL
NR
EFFECT/
CH SEL
SIGNAL
SELECT
+
–
1-4
MULTI JOG
(Turn to select / Push to enter)
[
[
S
peaker tSe t ing
wor k
]
elay
]
Chann
Cross
Dle
[
evel
]
Chann Lle
[
tNe
]
v
oer
elBass
[
vLe
]
e
Pak
olD-Ra
[
rnt
]
e
gnCo
[
]
EXI T
[
[
F
REE t
]
]
Speaker Set t i ng
THX
[
[
]
Subwo
f
o
er
Sur round
Sur rBack
Front LARGE
[
]
LARGE
[
]
LARGE
[
LARGE
]
x2
]
YES
Cen t e r
[]
EXI T
VSX-839RDS
VSX-859RDS
TOP MENU
Î
D.ACCESS BAND
MENU
CLASS
RETURN
MIDNIGHT DSP STEREO FUNCTION
ADVANCED STANDARD MUTE
CLEAR AUDIO
AV PRE-PROGRAMMED AND LEARNING
REMOTE CONTROL UNIT
RECEIVER DIRECT CONTROL
MPX
CHANNEL
!⁄
*‹&
4¢

¶
ENTER
TUNE
TUNE
ST ST
1-4
THX
SETUP
/ DTS / MPEG
DISPLAY RF ATT
2
[
[
F
REE t
]
]
Speaker Set t i ng
THX
[
[
]
Subwo
f
o
er
Sur round
Sur rBack
Front LARGE
[
]
LARGE
[
]
LARGE
[
LARGE
]
x2
]
YES
Cen t e r
[]
EXI T
