Initial Set up
1 Select “Channel Delay” with the 5¥∞
buttons or MULTI JOG dial (if continuing
from the last set up, it should already be
selected).
See “Setting Up for Surround Sound“ on p. 30 – 31 if you are
unsure how to do this.
Press the ENTER button.
• The default setting is 2 m.
2 Press ENTER.
The distance of the first speaker will flash in the receiver’s display
3 Specify the distance from your listening
position to each speaker using the
commands below.
1 Use the 5¥∞ buttons to adjust the speaker distance in 0.1
meter increments from 0.1 to 9 meters.
The default setting is 2 m.
2 Press ENTER.
3 Repeat steps 2 and 3 for the rest of the speaker settings.
4 When you've finished the last setup and
pressed ENTER, EXIT (“Ch Delay End” on
the front panel) should be selected. Press
ENTER button again to send the information
to the receiver and go to the “Channel
Level” setup.
If you want to change a setting before proceeding
use the arrow buttons (or MULTI JOG dial) to go back.

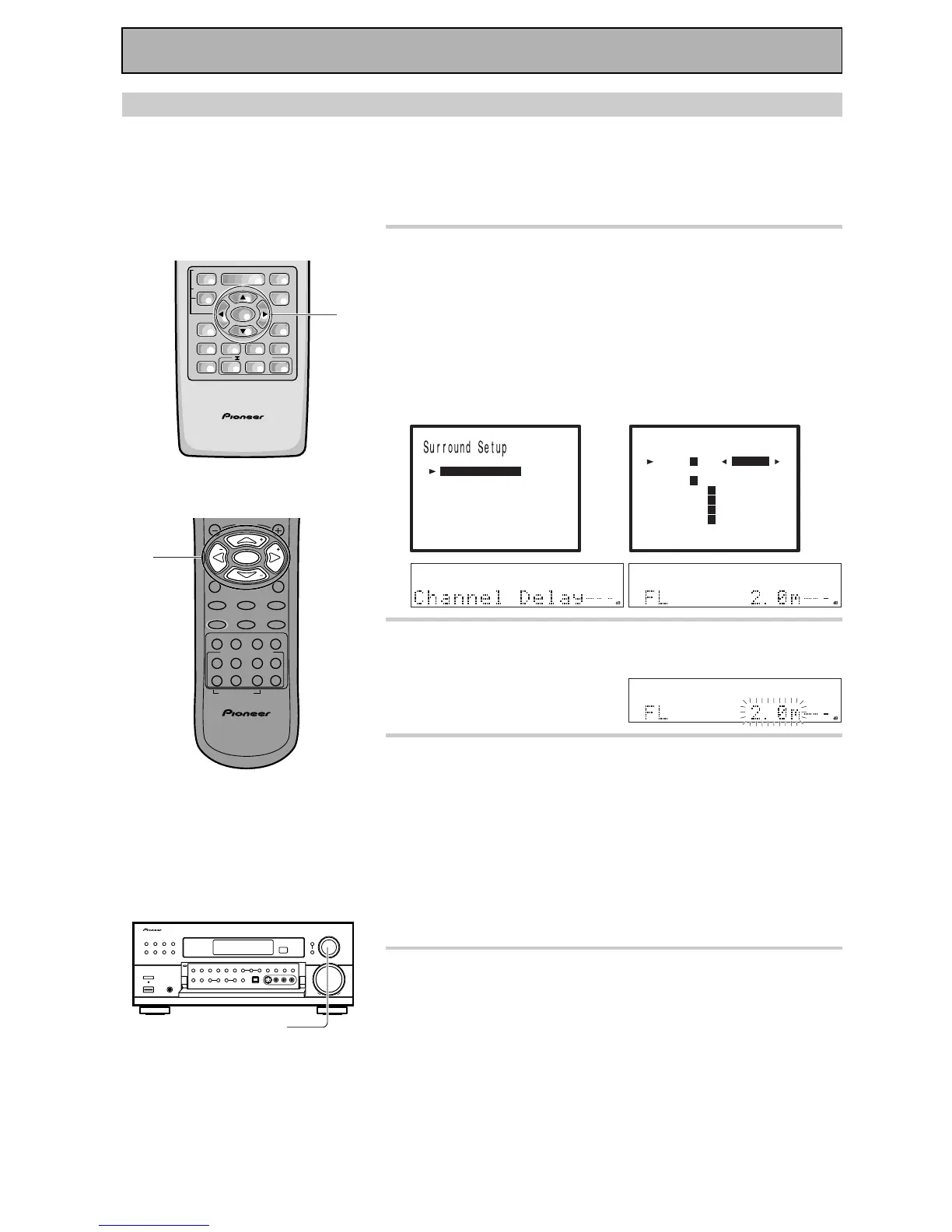

Channel Delay
Adding a slight delay to some speakers is necessary to achieve a surround sound effect. You need to figure out
the distance from your listening position to your speakers to add the proper delay. The following steps show you
how to set the delay time for each channel by specifying the distances from your listening position to each
speaker. Once you specify the speaker distances, the receiver calculates the correct delay times automatically.
If continuing from “Speaker Setting” go to step 1. If starting fresh, complete steps 1 – 3 in “Setting Up for
Surround Sound“ (p. 30 – 31) first.
