Pioneer VSX-C100 Service Manual
4
of 1
of 1 rating
69 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
VSX-C100-S
18
1234
123
4
C
D
F
A
B
E

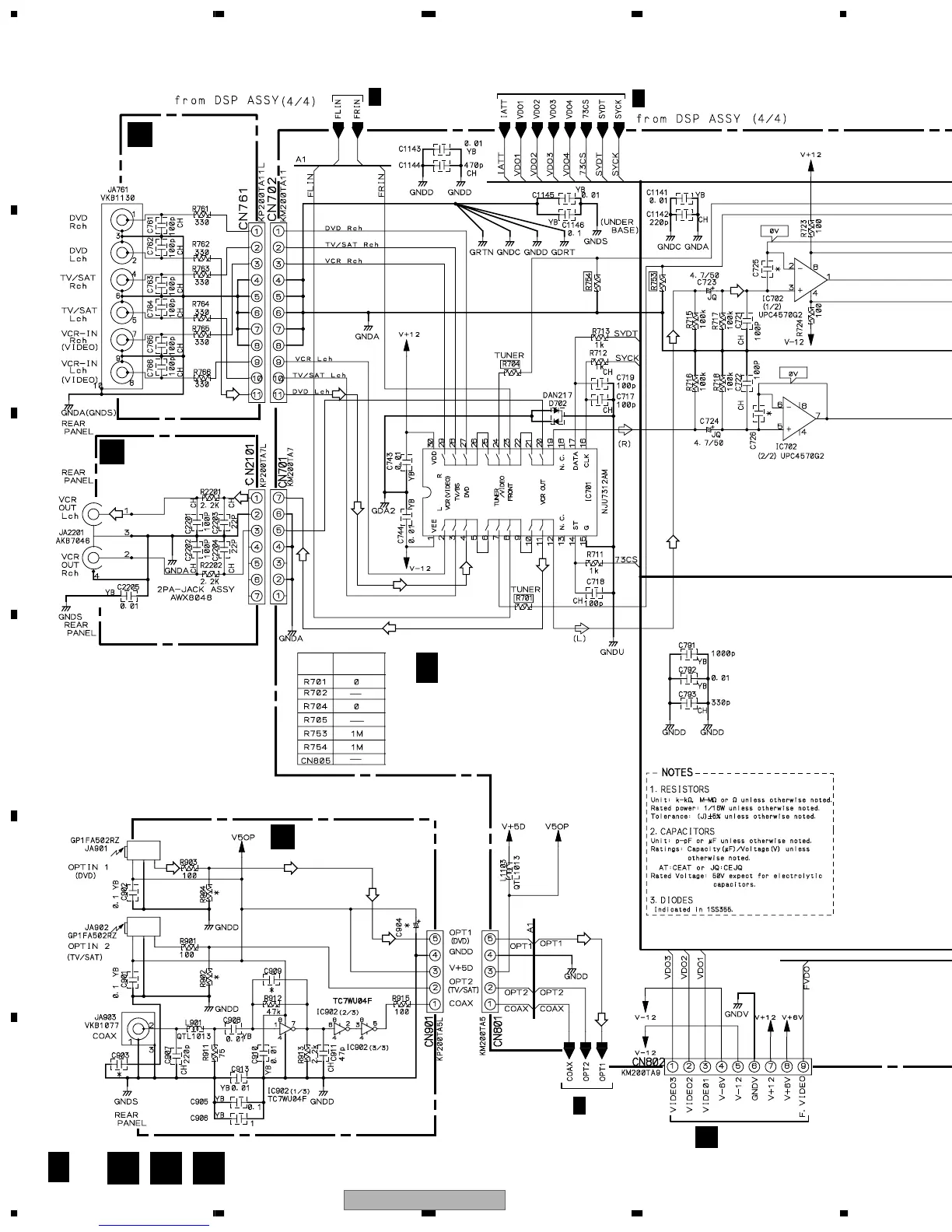

3.4 DSP(1/4),
2P-JA
CK,
6P-JA
CK,
DIGIT
AL-IN and FR
ONT INPUT ASSYS
C
D
F
(D)
(D)
(D)
(D)
(D)
(D)
Analog Function Selector
B
1/4
B
1/4
DSP ASSY
(AWX8049)
6P JACK
ASSY
(AWX8043)
D
2PA JACK ASSY
(AWX8048)
C
DIGITAL-IN ASSY
(AWX8046)
F
2/4
B
4/4
B
4/4
B
CN3201
E
17
19
Table of Contents
Default Chapter
2
Safty Information
2
Table of Contents
4
1 Specifications
5
2 Exploded Views and Parts List
6
Packing
6
Exterior Section
8
Front Section
10
3 Block Diagram and Schematic Diagram
12
Block Diagram
12
Overall Wiring Diagram
14
Fm/Am Tuner Module
16
DSP(1/4), 2P-JACK, 6P-JACK, DIGITAL-IN and FRONT INPUT ASSYS
18
Dsp(2/4) Assy
20
Dsp(3/4) Assy
22
Dsp(4/4) Assy
24
FRONT, ENCODER and SW ASSYS
26
Power(1/2) Assy
28
POWER(2/2) and TORANS ASSYS
30
Video Assy
32
4 Pcb Connection Diagram
34
Fm/Am Tuner Module
35
DSP and 2PA-JACK ASSY
36
Dsp Assy
38
POWER and FRONT INPUT ASSYS
40
Power Assy
40
6PJACK, DIG.IN, SW, ENCODER and VIDEO ASSYS
44
5 Pcb Parts List
48
6 Adjustment
53
7 General Information
54
Diagnosis
54
Test Mode
54
Protection of the Amplifier Line
55
Operation of the Fan-Control Line
56
Specifications of Speaker Detection
57
Circuit Description
58
Trouble Shooting
59
Error Code
60
Parts
61
Display
65
8 Panel Facilities
67
Remote Control
68
Other manuals for Pioneer VSX-C100
