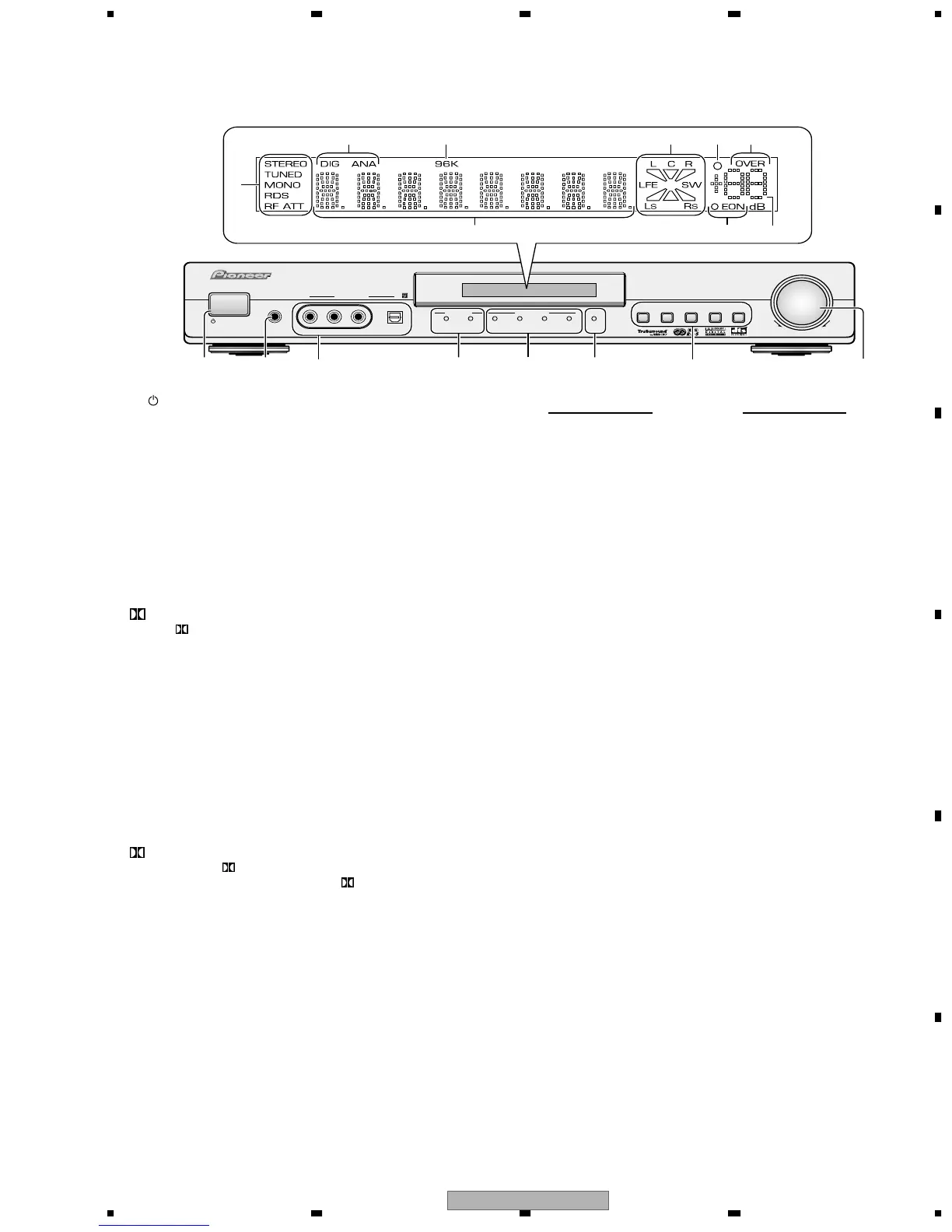

8. PANEL FACILITIES
8
4
1
2
65
7
3
9
0 - = ~!
#@$
S
1
STANDBY/ON (Main power) button
Pressing this button switches the receiver ON from STANDBY mode.
RECEIVER button on the remote control also toggles between
ON and STANDBY mode.
The receiver uses a small amount of electricity (less than 1W)
in STANDBY mode.
2 PHONES jack
Use to connect headphones (this switches the speakers off).
3 FRONT INPUT
You can connect a portable DVD player, video camera,
video game system, or whatever equipment you would like
to have handy, to the FRONT INPUT .
4 INPUT SIGNAL indicators
Indicates the kind of input signal.
DIGITAL:
When a DIGITAL source is input this indicator will light.
DTS:
When a DTS source is input this indicator will light.
5 SURROUND MODE indicators
Indicates the SURROUND mode of input signal.
AUTO:
Lights when the AUTO mode is selected. This mode automatically
selects which kind of signal is being input and plays back in the
appropriate mode.
PHONES/VIRTUAL:
Lights when the VIRTUAL or PHONES SURROUND mode
is selected. The VIRTUAL mode simulates surround sound for two
speakers (when headphones are not plugged in, see).
The PHONES SURROUND mode simulates surround sound for
headphones, when they are plugged in.
PRO LOGIC II:
Lights when the PRO LOGIC II mode is selected.
This mode automatically plays back in PRO LOGIC II .
ADVANCED:
Lights when an ADVANCED mode is selected.
These modes playback emphasizing certain characteristics
of the sound .
6 SOUND MODE
Lights when you have chosen one of the sound modes to
be applied to playback .
7 Input buttons
Use to select the playback source: the possibilities are
DVD, TV/SAT, DVR/VCR, FM/AM and FRONT.
8 MASTER VOLUME
Use to set the overall listening volume.
9 TUNER indicators
STEREO:
Lights when a stereo FM broadcast is being
received in auto stereo mode.
TUNED: Lights when a broadcast is being received.
MONO: Lights when the mono mode is set using
mpx (on the remote control).
RDS: Lights when an RDS broadcast is received.
RF ATT: Lights when the RF ATT is on .
0 Digital (DIG) & Analog (ANA) indicators
Light according to the kind of signal, digital or analog,
received.
- 96kHz playback indicator
Lights when a 96 kHz source is being played.
= Format indicator
Shows which speakers are currently in use based on
the listening mode chosen, the source material and
the type of decoding being used .
~ SLEEP indicator
Lights when the SLEEP function is set or active .
! OVER indicator
Lights when the analog signal is too powerful,
causing possible distortion .
@ EON indicators
EON
lights when it has been set. The dot indicator next
to it lights when the station you are currently tuned
to carries the EON data service.
# Volume level indicator
$
Character display
Shows the current input (DVD, TV/SAT, etc.),
listening mode, radio frequency, etc.
Front panel
DISPLAY
