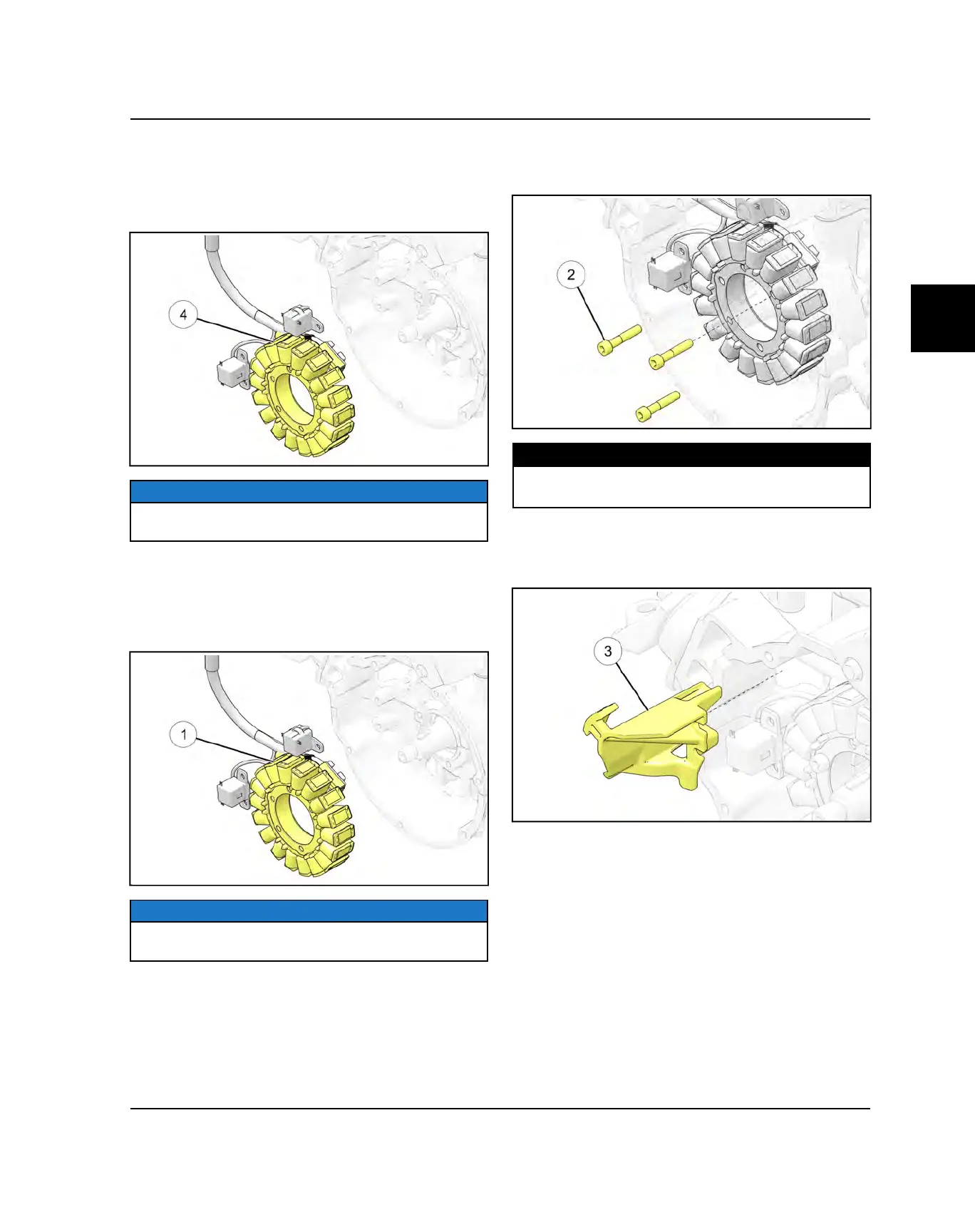

5. If the engine is still in the snowmobile, disconnect the
stator from the PBR and remove from any retention
points.
6. Carefully remove the magneto/stator
r
from the
crankcase.
NOTICE
The stator wires will be pulled through the cutout in the
crankcase.
STATOR INSTALLATION
1. Carefully install the magneto/stator
q
into the
crankcase.
NOTICE
The stator wires will be pulled through the cutout in the
crankcase.
2. Align the magneto/stator mounting holes and install
the three stator fasteners
w
. Torque fasteners to
specification.
TORQUE
Stator Fasteners:
12 ft-lbs (16 N·m)
3. During assembly, route the stator / trigger coil wires in
their designated channels.
4. Install the stator wire retainer
e
.
