THUMB WARMER DIAGNOSTICS
The thumb warmer on all Polaris snowmobiles is a
thermistor-type warming element pad. This means its
resistance will change based on temperature.
THUMB WARMER RESISTANCE CHECK
The thumb heater only has one heating element with two
wires. One wire is white the other is green.
CIRCUIT (WIRE COLOR)
NOMINAL RESISTANCE
@ ROOM TEMP.
68 °F (20 °C)
White to Green
14.0 ohms ± 10%
FULL LENGTH HAND WARMER
RESISTANCE CHECK
Part Numbers: 2415119 / 2415120
CIRCUIT (WIRE COLOR)
NOMINAL RESISTANCE
@ ROOM TEMP.
68 °F (20 °C)
Yellow to Grey
LH Heater
3.3 ohms ± 10%
Blue to Brown
RH Heater
FULL LENGTH HAND WARMERS
Full length hand warmers differ from standard length
warmers in that they are cut to match the bend of the
integrated handlebar hooks. Because of this, there are
separate warming elements for the left and right side of
the handlebar assembly.

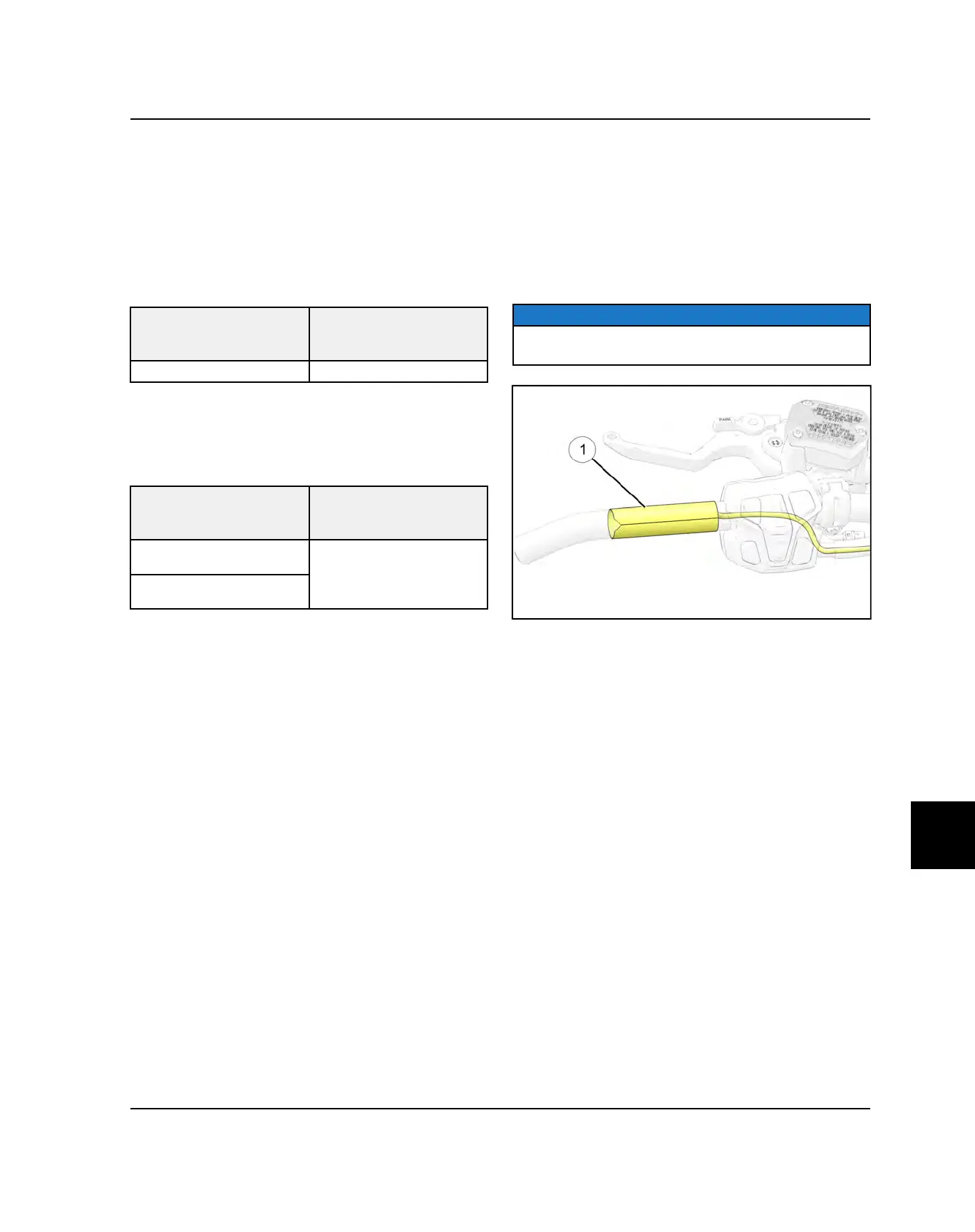

To install, note the orientation of the hand warmer
element before removal. Reference the illustration and
notes below to properly install the element pads.
NOTICE
The left side of handlebar shown but the right side is
similar.
Assembly Notes:
• Install the heater element pads
q
.75 in (19 mm) from
end of the handlebars.
• Orientate the heater element pads 90° to the hook
bends.
