9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
8.27

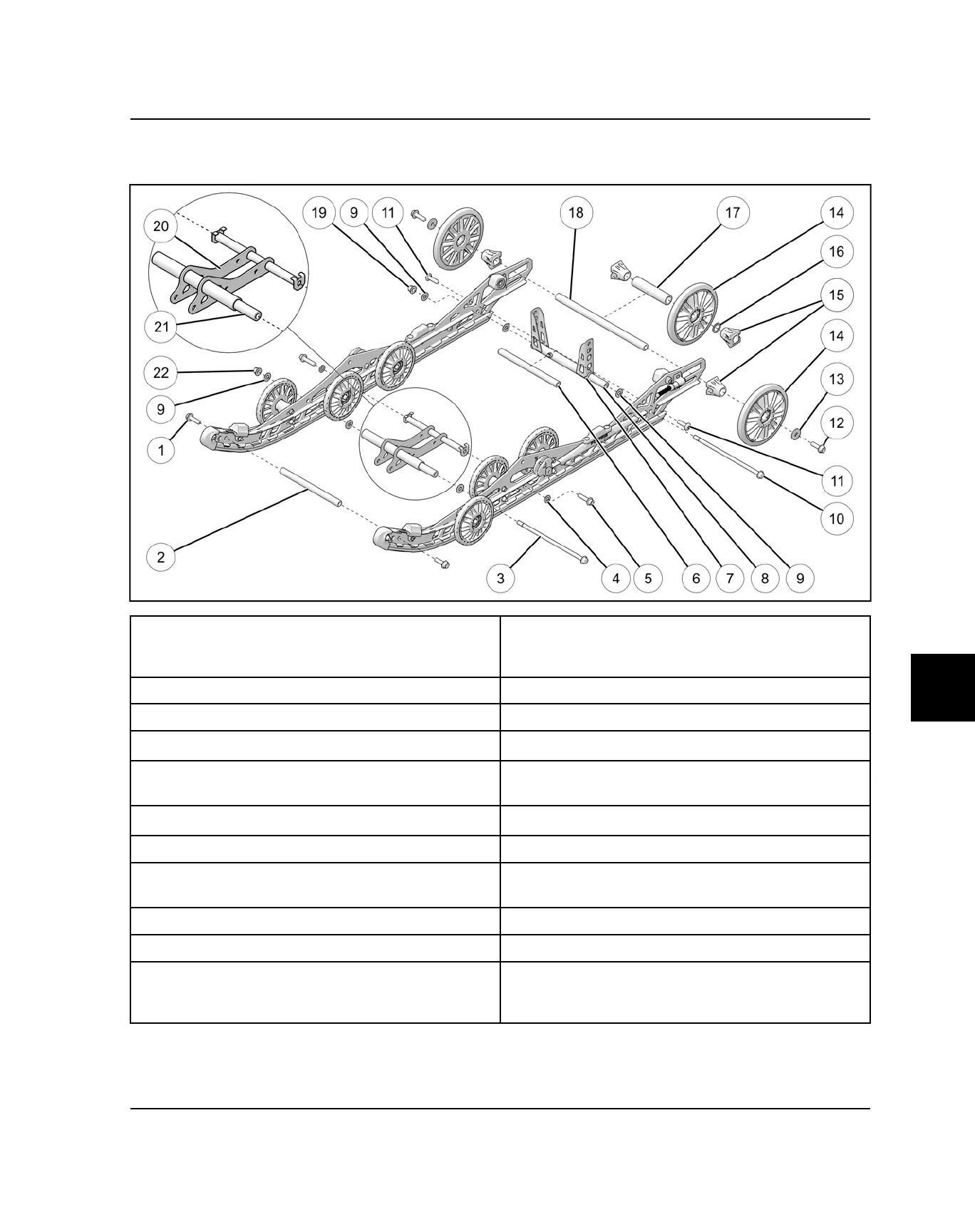

REAR SUSUPENSION ASSEMBLY VIEWS - PRO-CC
PRO-CC REAR SUSPENSION PIVOT / BRACE ASSEMBLY VIEW
q
Front Cross Shaft Fastener
33 ft-lbs (45 N·m)
Apply Loctite 263 to fastener prior to assembly
d
Idler Fastener
33 ft-lbs (45 N·m)
w
Front Cross Shaft
f
Washer
e
Front H-Bracket Fastener
g
Idler Wheel
r
Washer
h
Idler Spacer
t
Rear H-Bracket Fastener
46 ft-lbs (63 N·m)
j
Bushing
y
Rear Cross Shaft
k
Center Idler Spacer
u
Rear Pivot Arm
l
Idler Shaft
i
Rear Pivot Arm Shaft
1(
Nut
56 ft-lbs (76 N·m)
o
Washer
2)
H-Bracket
a
Rear Pivot Arm Fastener
2!
H-Bracket Shaft
s
Rear Cross Shaft Fastener
33 ft-lbs (45 N·m)
Apply Loctite 263 to fastener prior to assembly
2@
Nut
56 ft-lbs (76 N·m)
STEERING / SUSPENSIONS
