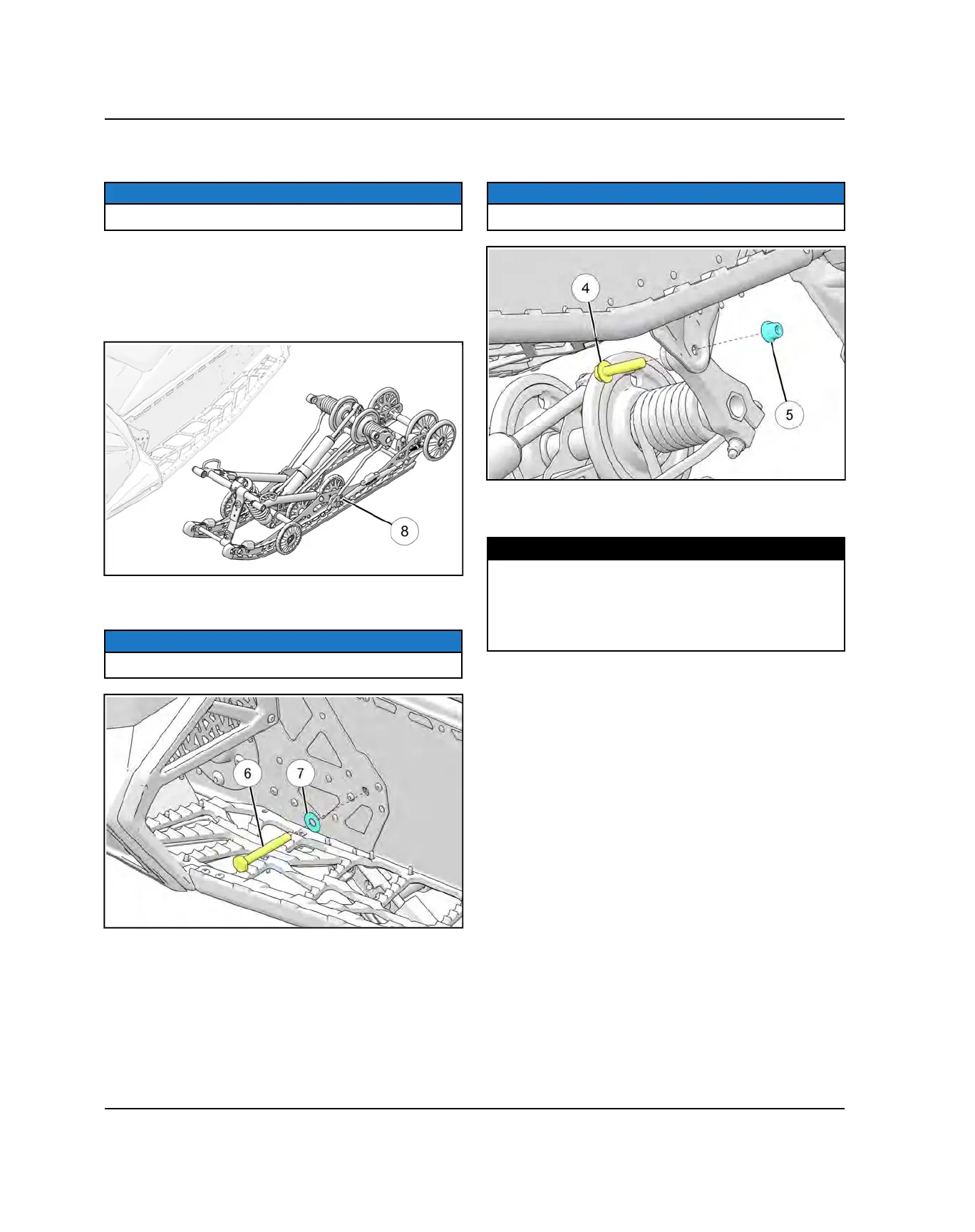

REAR SUSPENSION INSTALLATION - PRO-
CC
NOTICE
Track not shown for clarity.
1. If the track and driveshaft were removed, these
components must be reinstalled before the rear
suspension can be installed.
2. Pivot the rear suspension
i
back into the tunnel and
track.
3. Loosely install the washers
u
and front torque-arm-
to-tunnel mount bolts
y
.
NOTICE
Right side shown.
4. Loosely the two upper carrier fasteners
r
and nuts
t
.
NOTICE
Right side shown.
5. When all four rear suspension mounting bolts are
installed, torque all to specifications.
TORQUE
Front Torque Arm-to-Tunnel Mount Fasteners:
46 ft-lbs (63 N·m)
Upper Carrier Fasteners:
33 ft-lbs (45 N·m)
6. Perform the Track Alignment and Track Tension
Adjustment procedures.
