9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
5.9
FUEL LINES

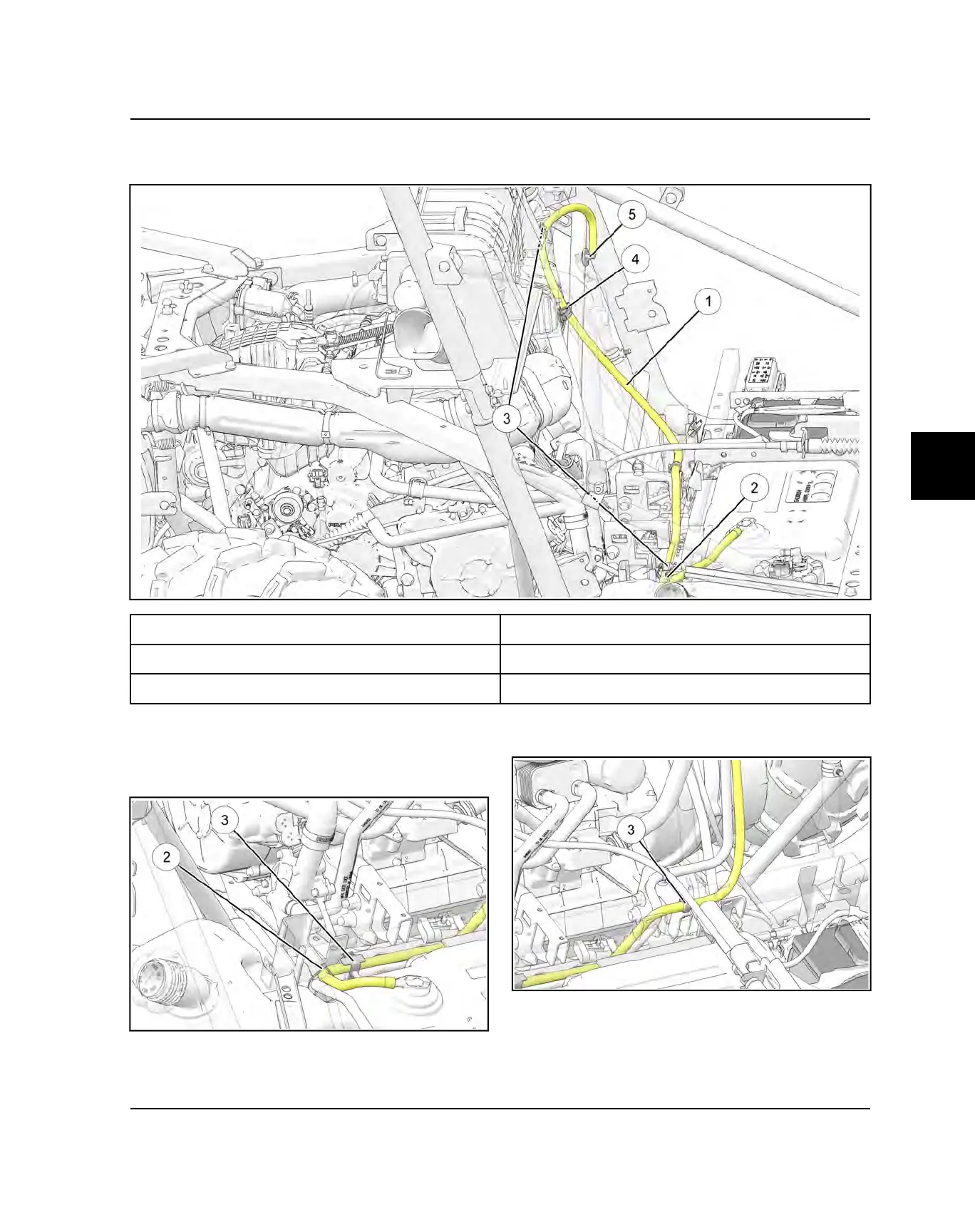

FUEL VENT LINE ROUTING
q
Fuel Vent Line (142 cm)
r
Harness Clip
w
Panduit Strap
t
Vent Line Fitting
e
Hinge Clip
1. Secure the fuel vent line and supply line together
behind the gas tank with a Panduit strap
w
.
2. Retain the fuel vent line to the frame with a hinge clip
e
.
3. Route the fuel line under the shift linkage and secure
to the frame with a hinge clip
e
.
4. Route the vent line upwards along the outside of the
fuel line. Attach it to the cross brace with a hinge clip
e
.
FUEL SYSTEM
