9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
12.29

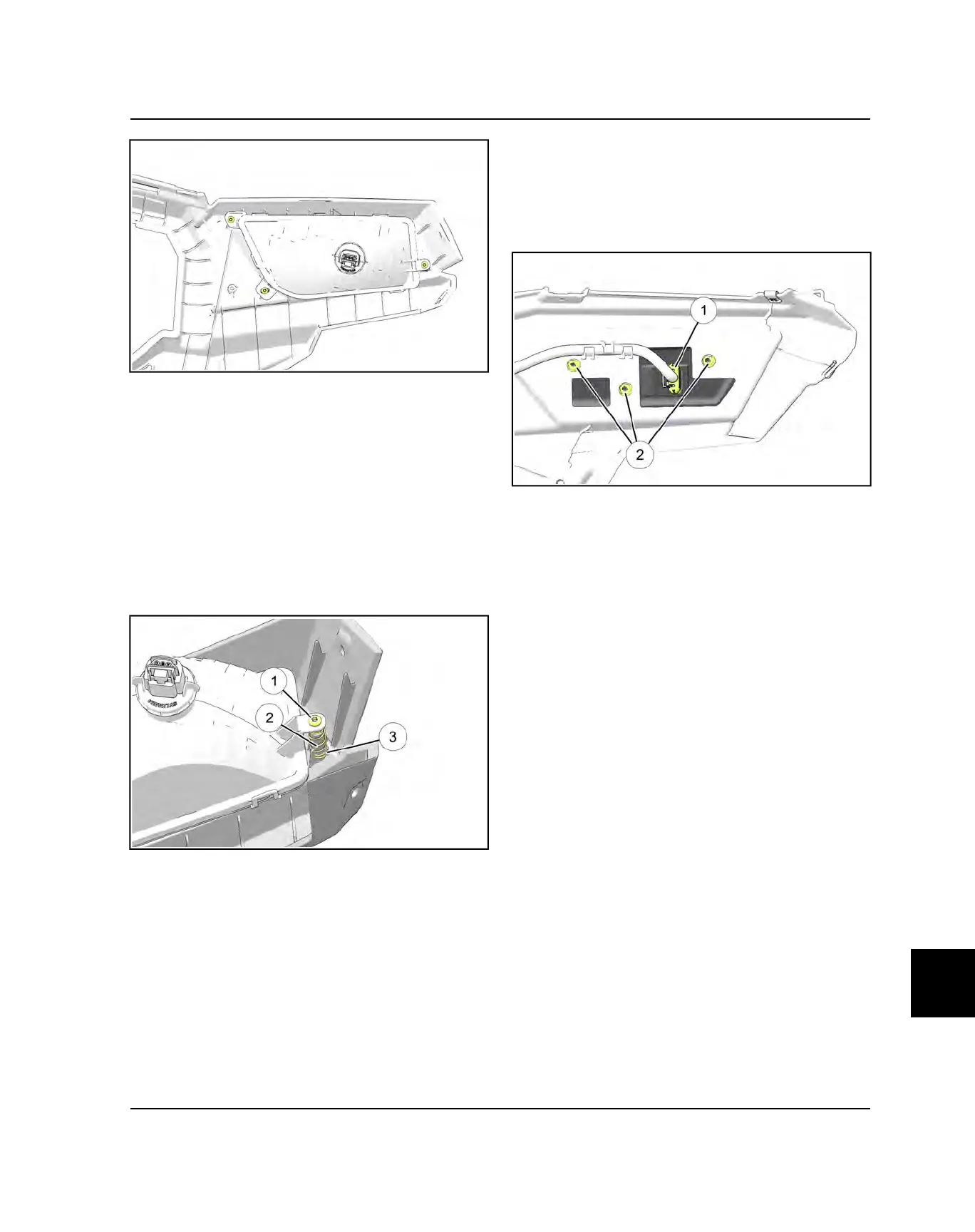

3. Carefully lift and remove headlamp assembly from
the bumper.
Headlamp Installation
1. Install the headlamp adjustment springs onto the front
bumper mounting bosses.
2. Insert the three T-25 headlamp mounting screws into
the headlamp assembly mounting holes.
3. Maneuver the headlamp assembly into position. Be
sure all three headlamp springs
w
and mounting
screws
q
are properly aligned with mounting bosses
③ on the front bumper.
4. Fully tighten all three headlamp screws until the
headlamp assembly is fully seated. Back headlamp
mounting screws off 1/8” to 1/4” (2-3 turns).
5. Install the front bumper as shown in Chapter 5 if
previously removed.
6. Connect headlamp electrical connector to the
headlamp assembly.
7. Perform the “Headlamp Adjustment” procedure as
shown in this chapter.
TAILLIGHTS
Taillight Replacement
Before replacing the taillight(s), use a digital multi-meter
to test the harness to ensure the lamp is receiving 12
volts and that a ground path is present.
1. Disconnect the wire harness
q
.
2. While holding the taillight assembly, remove the three
nuts
w
retaining the taillight assembly and remove it
from the rear fascia.
DASH LED LIGHT
The vehicle is equipped with an LED light below the dash
that illuminates when the key is turned on. This LED will
stay on for approximately 20 seconds after the key has
been turned off.
