PARKING BRAKE (INT'L)

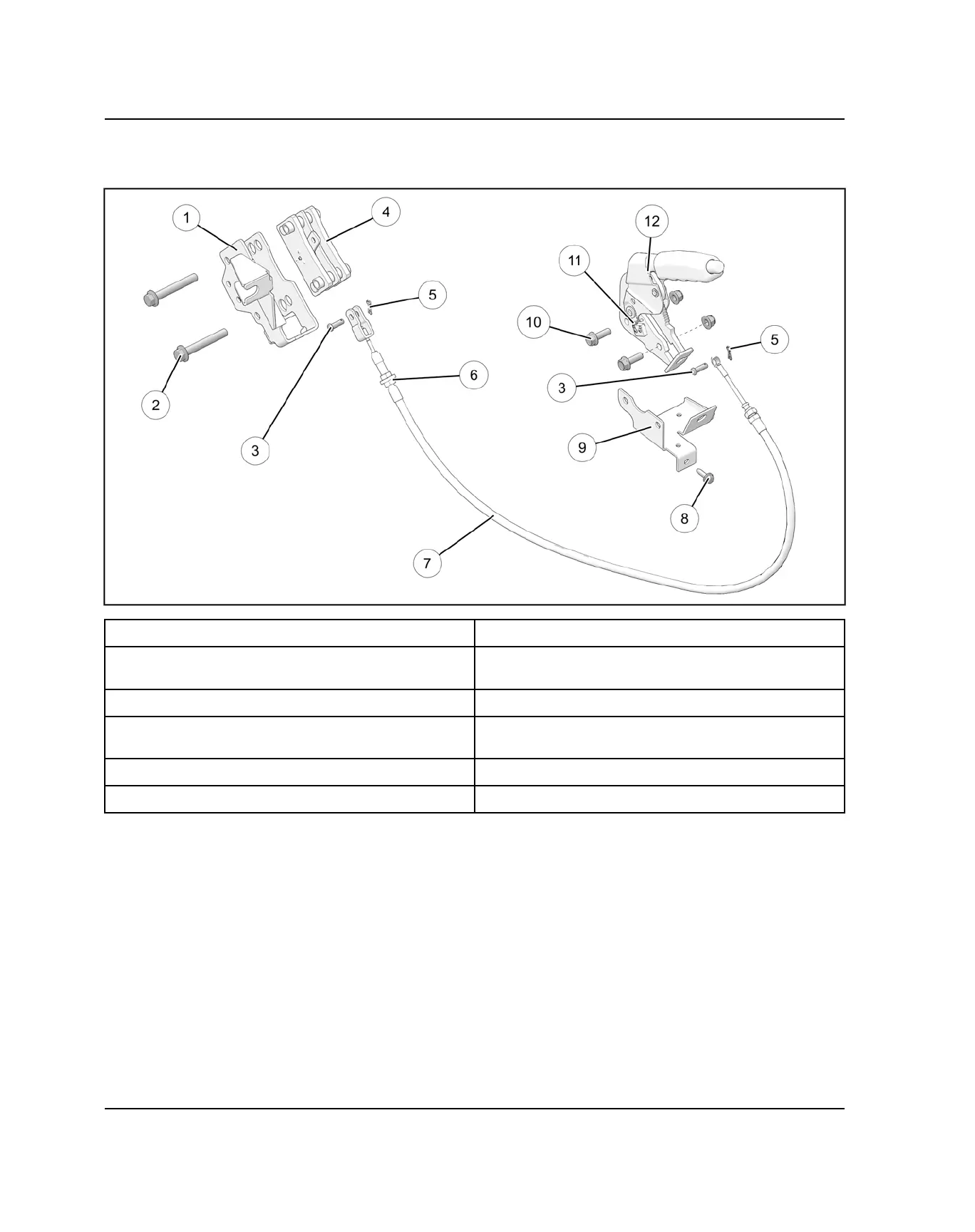

PARKING BRAKE ASSEMBLY VIEW
q
Parking Brake Caliper Mount Bracket
u
Parking Brake Cable
w
Parking Brake Caliper Mounting Bolts
30 ft-lbs (42 Nm)
i
Parking Brake Lever Mount Bracket Fastener
35 in-lb (4 Nm)
e
Clevis Pin
o
Parking Brake Lever Mount Bracket
r
Parking Brake Caliper/Pad Assembly
a
Parking Brake Lever Fasteners
30 ft-lbs (42 Nm)
t
Clip
s
Parking Brake Switch
y
Cable Adjuster
d
Parking Brake Lever Assembly
BRAKE SYSTEM
