9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
9.47

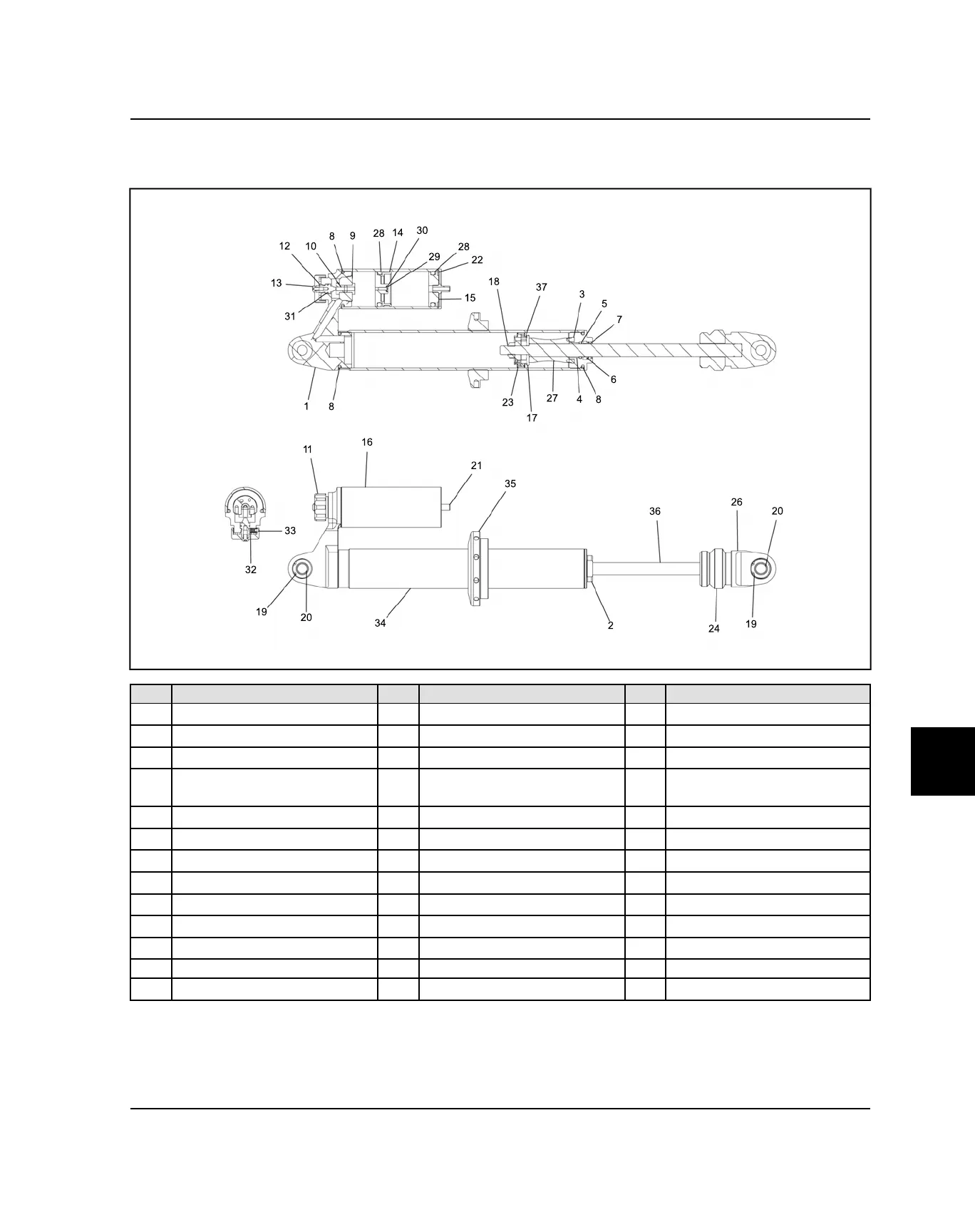

SHOCK SERVICE (WALKER EVANS)
WALKER EVANS™ 2.0" FRONT SHOCK / 2.5" REAR SHOCK
REF DESCRIPTION REF DESCRIPTION REF DESCRIPTION
1.
Body Cap Asm.
14.
Piston Asm, Floating (IFP)
27.
Shaft Spacer (1.235" x 1.985")
2. Seal Head Asm. 15.
Reservoir End Cap
28.
O-Ring
3.
Internal Bump Stop
16.
Reservoir Body
29.
Screw (8/32")
4.
Shaft Bushing (0.625")
17.
Washer (1.50" x 0.125" x
0.348")
30.
O-Ring
5.
O-Ring
18.
Crimp Nut (7/16")
31.
O-Ring
6. Seal 19.
Snap Ring
32.
Detent Spring
7.
Wiper
20.
Spherical Bearing
33. Detent Ball
8.
O-Ring
21. Schraeder Valve 34.
Shock Body
9.
Piston, Clicker
22.
Snap Ring
35.
Spring Adjustment Nut
10. Clicker Bolt 23.
Piston Wear Band (1.750" OD)
36.
Shaft, Chrome
11. Clicker Knob 24.
Bump Stop
37. 2-Piece Piston Asm.
12. Clicker Stud 25. N/A
13.
Screw (10/32")
26.
Shaft Loop
STEERING / SUSPENSION
