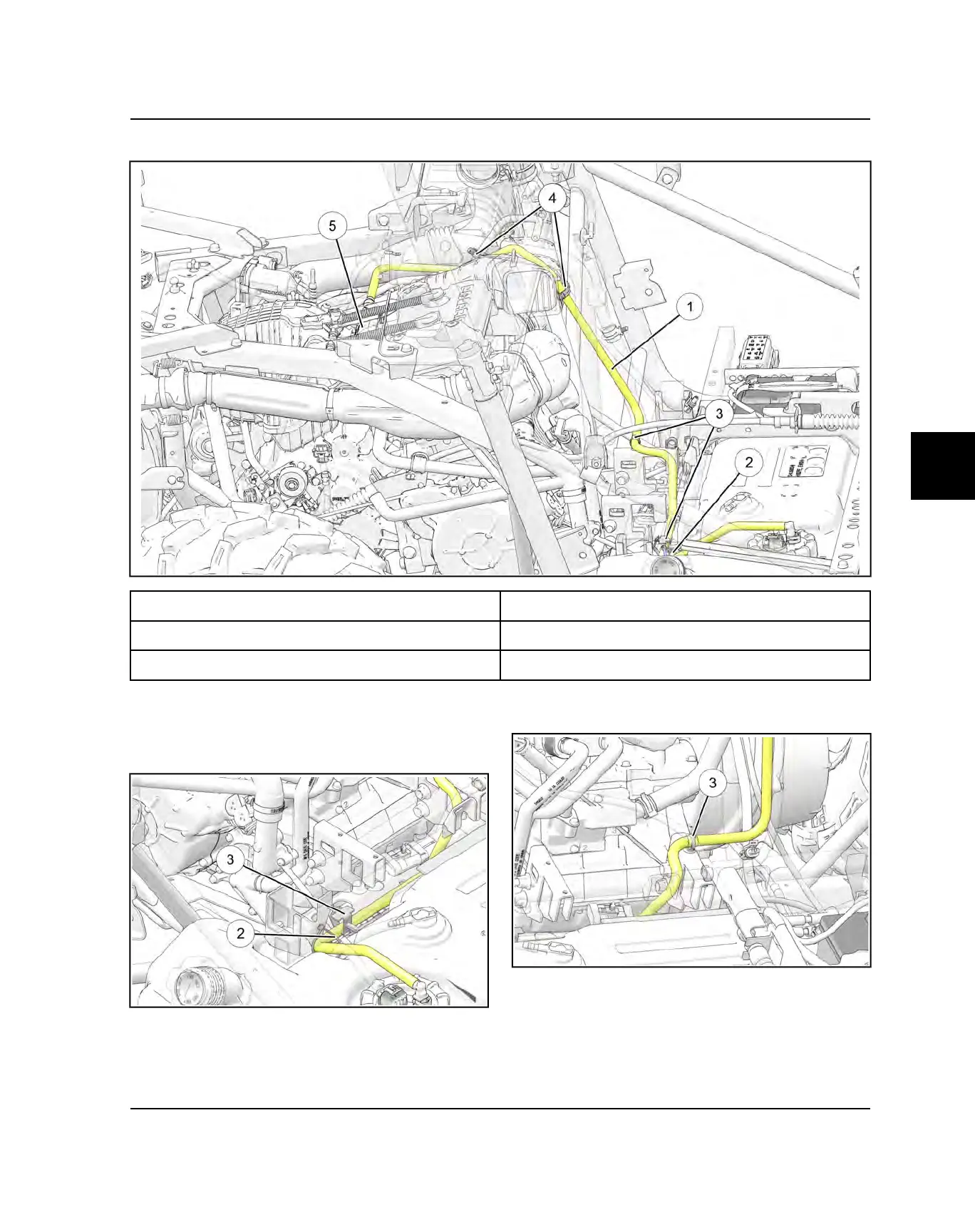

FUEL SUPPLY LINE ROUTING
q
Fuel Supply Line
r
Harness Clip
w
Panduit Strap
t
Fuel Rail
e
Hinge Clip
1. Retain fuel supply line to the vent line with a Panduit
strap
w
.
2. Retain fuel supply line to the frame with a hinge clip
e
.
3. Retain fuel supply line to the top of the engine mount
with a hinge clip
e
.
4. Route fuel supply line vertically along fuel vent line
and secure to fuel vent line with a harness clip
r
.
