Polaris Scrambler 50 User Manual

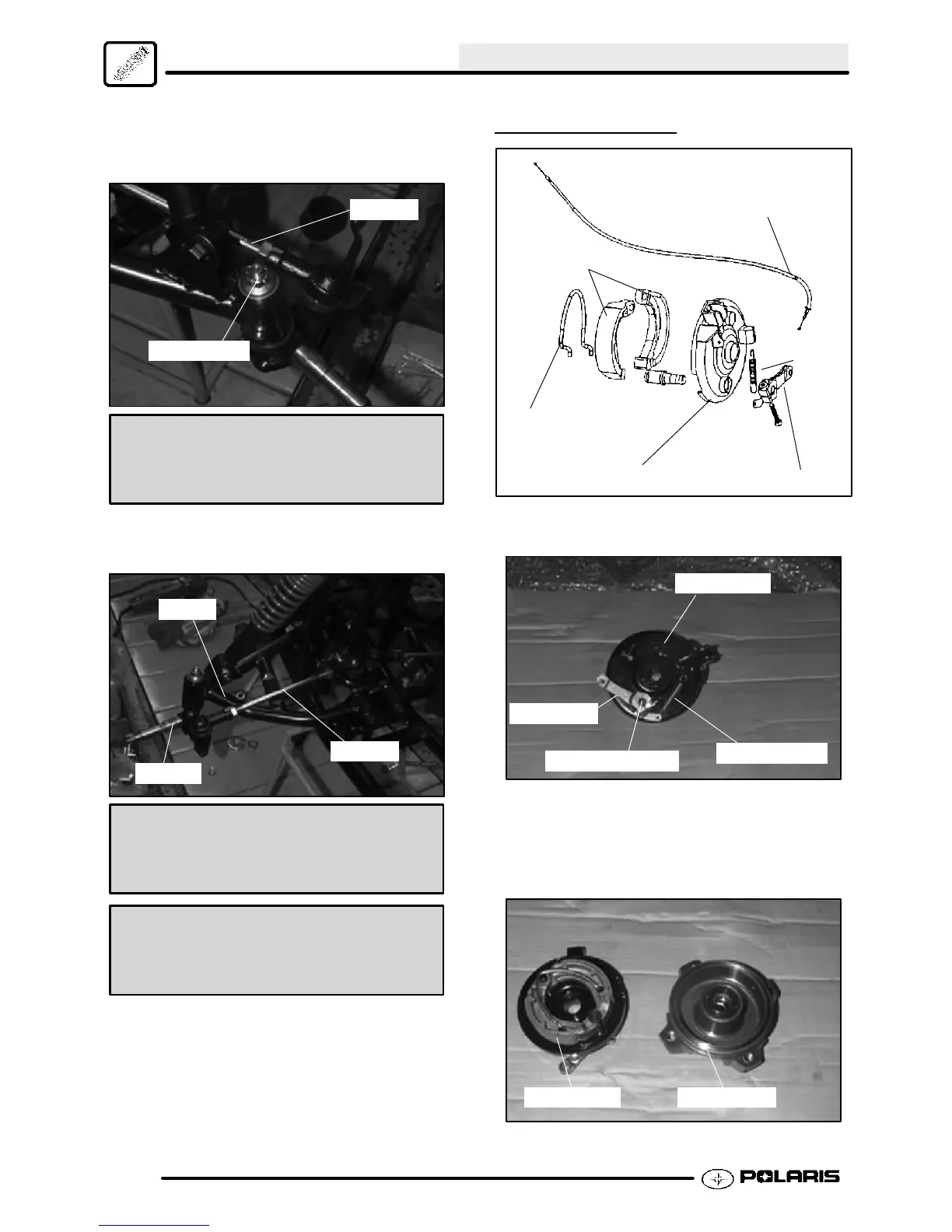

BODY/STEERING/SUSPENSION
4.6
3. Mount the tie rod to the steering post and to the
spindle. Mount the tie rod so that the end with the
flats is toward the spindle.
Tie Rod
Steering Nut
Steering Nut Torque:
62-65 ft.lbs. (86-90 Nm)
4. Tighten inner and outer tie rod bolts to
specification.
Tie Rod
A-arm
Spindle
Inner Tie Rod Bolt Torque:
33-40ft.lbs(45-55Nm)
Outer Tie Rod Bolt Torque:
33-40ft.lbs(45-55Nm)
Tie Rod Jam Nut Torque:
12-14ft.lbs(17-19Nm)
FRONT BRAKE
Right Brake Plate
Right Brake Arm
Brake Shoes
Retainer
Spring
Return
Spring
Brake Cable
1. Front brake backingplate assemblycomponents.
Brake Arm
Brake Cam Shaft
Return Spring
Brake Plate
2. Front brake shoe and brake drum. There are oil
seals and bearings in the front brake drums.
Upon disassembly, inspect the bearings and
seals for damage. Replace bearings and seals if
necessary.
Brake Shoe Brake Drum
