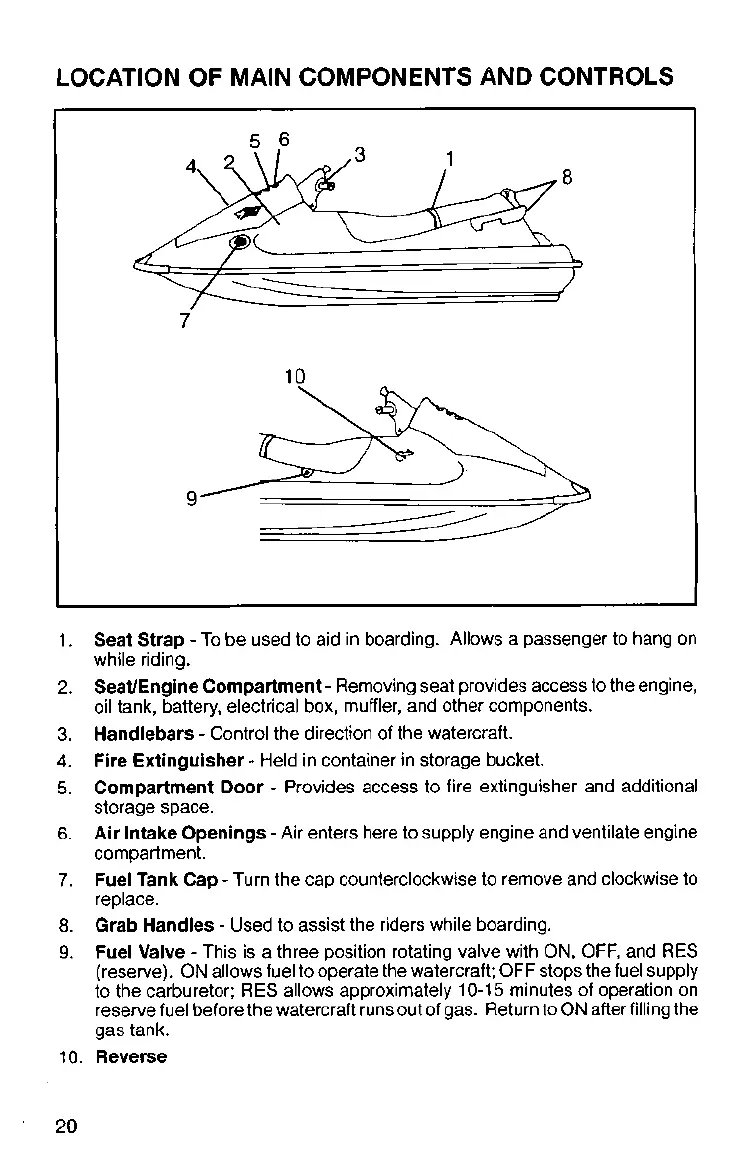

LOCATION
OF
MAIN COMPONENTS
AND
CONTROLS
1.
Seat Strap
-
To be used to aid in boarding. Allows a passenger to hang on
while riding.
2.
SeatlEngine Compartment
-
Removing seat provides access to the engine,
oil tank, battery, electrical box, muffler, and other components.
3.
Handlebars
-
Control the direction of the watercraft.
4.
Fire Extinguisher
-
Held in container in storage bucket.
5.
Compartment Door
-
Provides access to fire extinguisher and additional
storage space.
6.
Air Intake Openings
-Air enters here to supply engine and ventilate engine
compartment.
7.
Fuel Tank Cap
-
Turn the cap counterclockwise to remove and clockwise to
replace.
8.
Grab Handles
-
Used to assist the riders while boarding.
9.
Fuel Valve
-
This is a three position rotating valve with ON, OFF, and
RES
(reserve). ON allows fuel to operate the watercraft; OFF stops the fuel supply
to the carburetor;
RES
allows approximately
10-1
5
minutes of operation on
reserve fuel before the watercraft runs out of gas. Return to ON after filling the
gas tank.
10.
Reverse
