118
MAINTENANCE AND LUBRICATION
Lights - Adjustment - Replacement
Headlight Housing Replacement
1. Lift the pod lightly while depressing the tabs.
2. Using a small flat blade screwdriver, push in on the lock tab
through the two small openings at the front of the headlight pod.
3. Remove the three screws
securing the headlight pod.
4. Lift pod cover up. Disconnect
instrument cluster harnesses
from instrument cluster.
Unplug indicator light harness
and remove pod cover.
5. Unplug headlamp from wiring
harness.

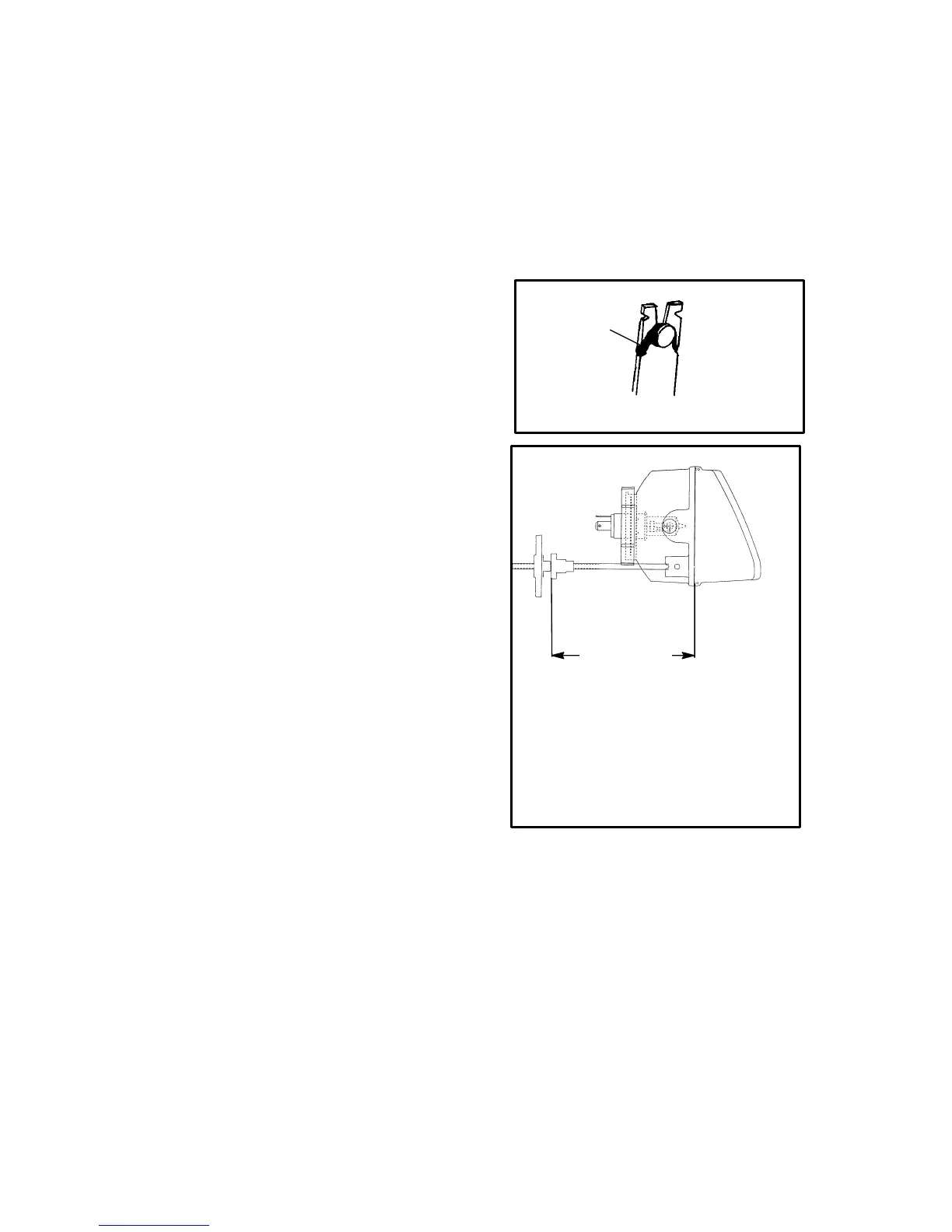

6. Remove O-Ring from
headlight pivot pins.
7. Pull headlight housing up to
release from locking tabs.
8. Lift adjusting knob up to
remove from locking tabs.
9. Carefully pull assembly up
and out of pod.
10. Reverse steps to install new
housing and reassemble pod.
11. Adjust headlight aim by
turning adjusting knob.
O-Ring
5 1/8″
(13 cm)
Distance from headlamp
parting line to end of
adjustment knob stop is 5
1/8″ (13 cm).
