Polycom CX700 User Manual

User Guide for the Polycom CX700 IP Phone
1 - 2

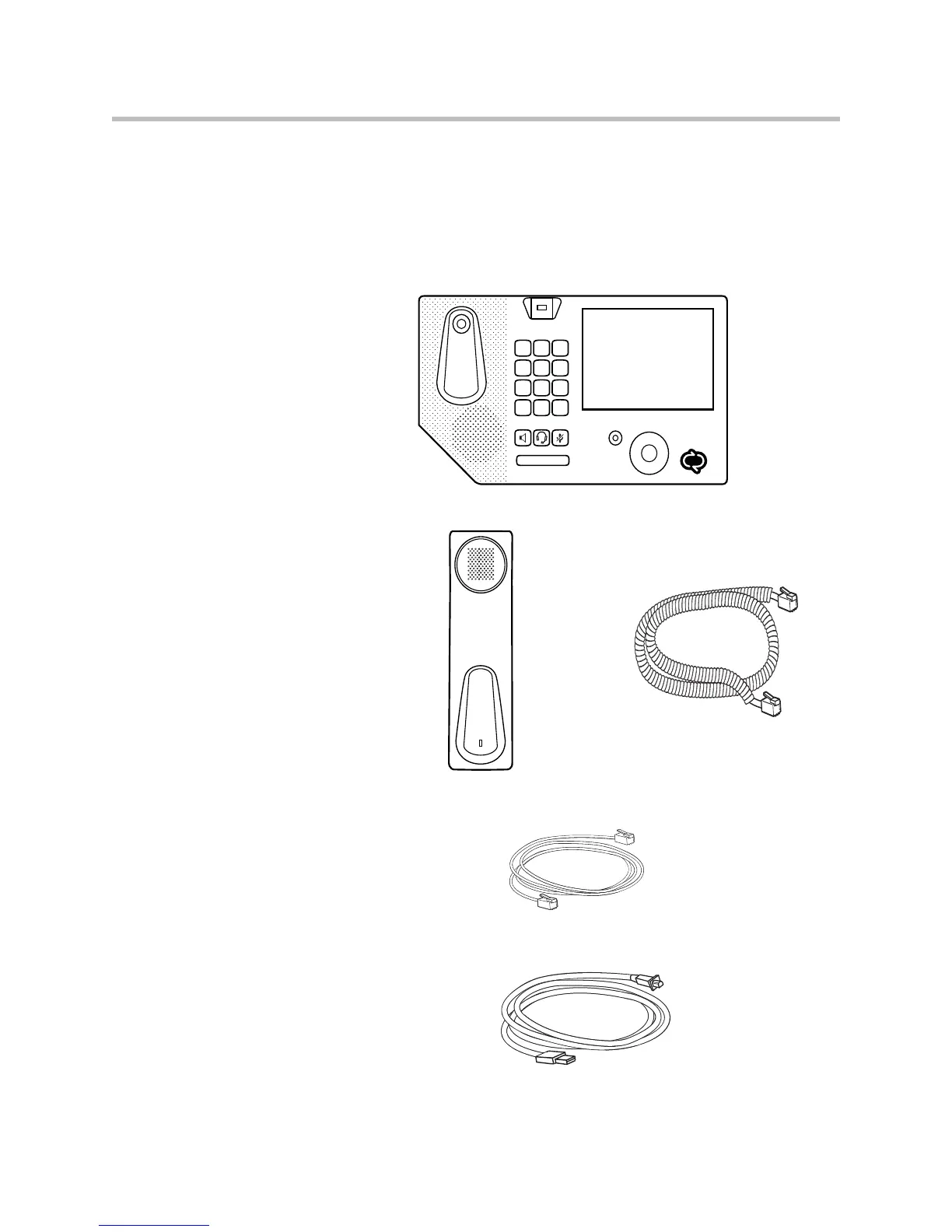

Parts List
The following components are included in your Polycom CX700 IP phone
package:
• Polycom CX700 IP phone
• handset & handset cord
• Network Cable
• USB cable

Polycom CX700 Specifications

Power

power over Ethernet	IEEE 802.3af Class 2
maximum power consumption	13 Watts

LCD Display

display size	5.7 inches
display type	amorphous-TFT Active-Matrix Transmissive
display resolution	320x240

Audio

frequency response	30 – 20kHz
signal-to-noise ratio	78 dB (@ 1kHz)
dynamic range	>80 dB (@ 1kHz)
total harmonic distortion + noise	<0.08% (@ 1 kHz)

Operating Environment

operating temperature range	-10°C to 40°C
relative humidity	80% max (non-condensing)
operating altitude range	-304.8 meter to 3962.4 meter

Weight and Dimensions

dimensions when not tilted	252.7 x 268.6 x 91.3 mm
dimensions when tilted up	193.2 x 268.6 x 192.1 mm
unit weight	2.1 kg
handset weight	200 g
shipping weight	2 kgs
