5.1.2 Distance to heat sources
NOTICE
Minimum clearance not adhered to
Place the unit with the minimum clearance to heat sources or open fire
required to prevent any damage to the unit or malfunctions.
NOTICE
High ambient temperature next to the installation site (left side of the unit)
If the temperatures at the installation site on the left side of the unit exceed
80°C [176°F], the heating system will be switched off by the automatic
emergency shutdown.
NOTICE
High ambient temperatures on the rear side of the unit
Do not place any deep-fat fryers or other heat sources by the rear side of the
unit.

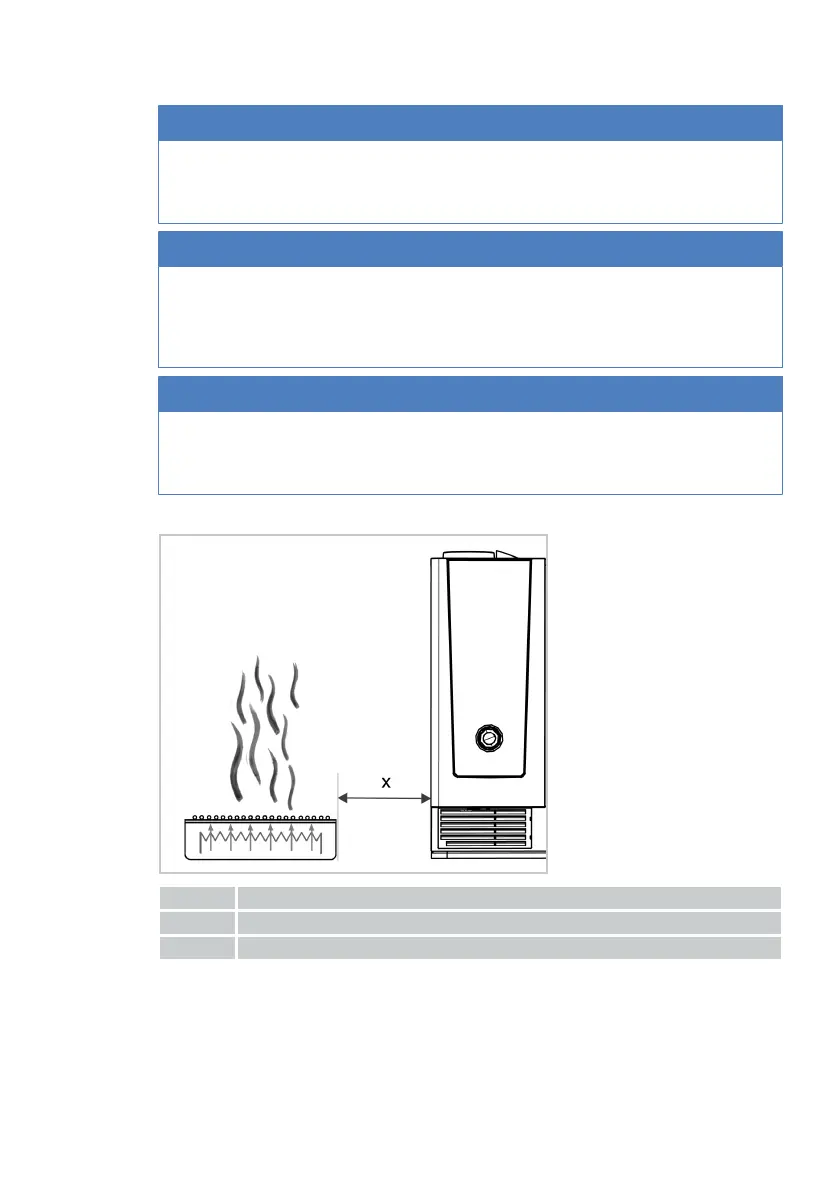

Place the unit with a minimum clearance to heat sources.
Minimum clearance heat sources
x [mm] 350
x [inch] 14
Heat shield (optional)
If a sufficient distance to the heat source on the left cannot be maintained, an
additional heat shield is available that reduces thermal loads.
For the unit sizes 6-1/1 GN and 10-1/1 GN an additional heat shield is avail-
able for the right side.
