Rational LM1 Series User Manual

6 | Electrical connection
48 / 92 80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB
Unit size 20-1/1 GN, 20-2/1 GN

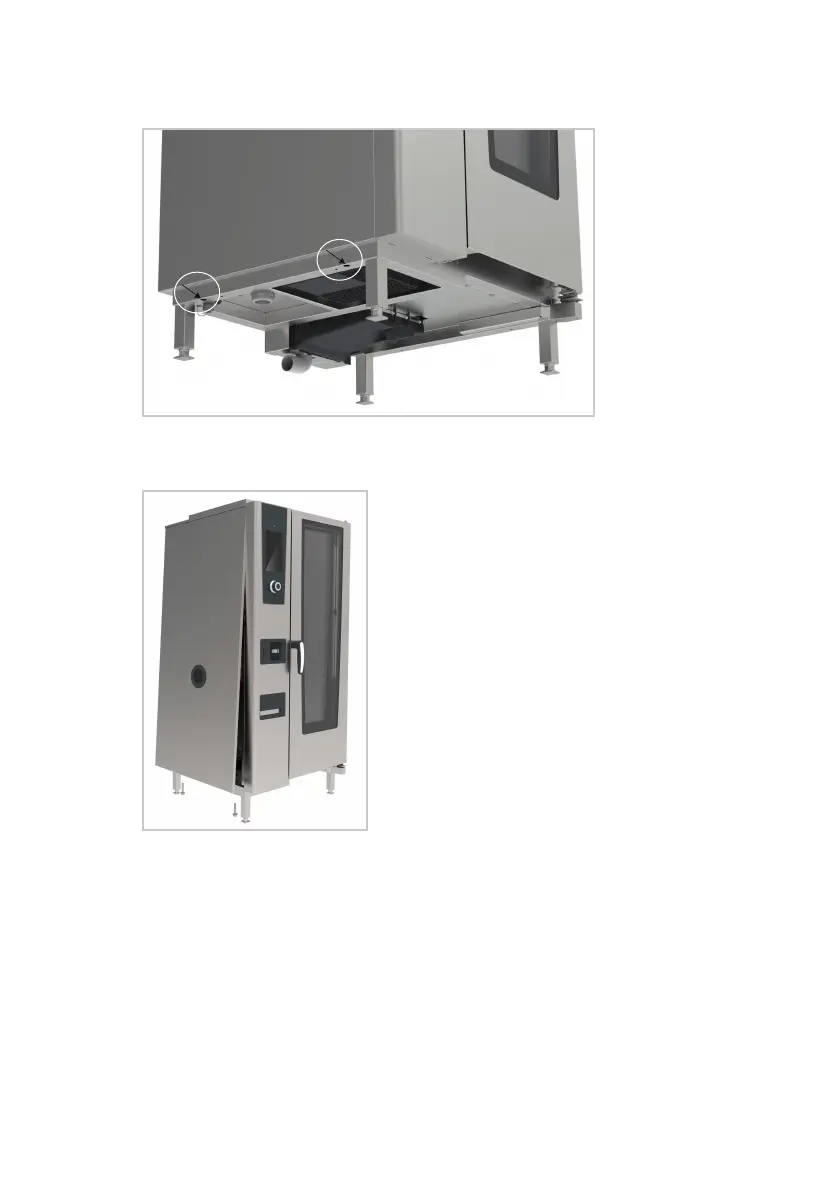

1. Loosen two screws on the underside of the side panel.
2. Lift up the left side panel from below and pull the side panel downwards
away from the unit.
>> The electrical compartment is open.
6.3 Connecting electric units to the mains
Notes on power cable and connection point
n
A fixed connection is provided for the electrical connection of the unit.
n
Units with a 3 NAC 400 V supply voltage can be connected with a per-
manent connection or a plug connection.
n
A dedicated supply line is available for the unit. The flexible power cable is
at least of type H07 RN-F.
n
Tabletop units are equipped with power cables without plugs. The cables
are around 2.5 m [98.5 inches] in length.
n
Standalone units are delivered without mains cables.
n
Units with a 3 NAC 400 V supply voltage must be connected to a safety
switch by means of a permanent connection (conduit connection).
