Chapter 2: Basic Operation 5
2 Basic Operation

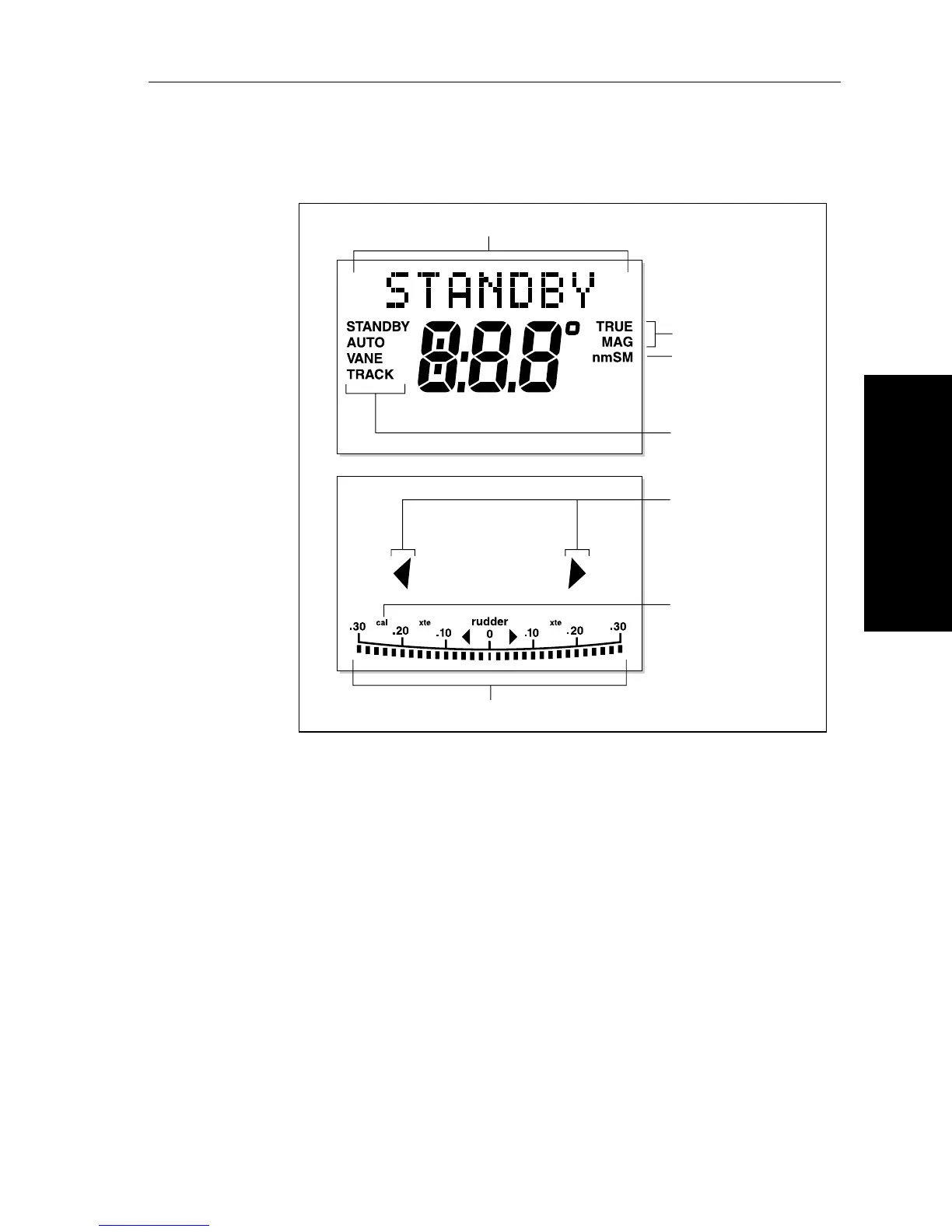

Display layout
The ST6001+ display screen provides the following information:
The bar graph at the bottom of the screen is normally a rudder position
indicator. This indicates the current position of the rudder, as
measured by the rudder position sensor.
Note: You can change this to a heading/cross track/wind error bar in
Display Calibration, see page 79.
Rudder position indicator or error bar
Port and Starboard
direction-to-steer
indicators
Autopilot mode
indicators
Distance units:
• no units = kilometres
• nm = nautical miles
• SM = statute miles
Heading indicators
Variable text region (up to 9 characters/digits)
D5457-1
Calibration mode
indicator (displayed on
calibration pages)
