11
Chapter 3: Installation
This chapter describes how to install the ST60+ Compass instrument and
associated Fluxgate Compass transducer. The transducer cable is connected to
the rear of the instrument.
For advice, or further information regarding the installation of these products,
please contact the Raymarine Product Support Department or your own National
Distributor.
3.1 Planning your installation
Before starting the installation, spend some time considering the best positions
for both transducer and instrument, such that the
Site requirements
and the
EMC
installation guidelines
are satisfied.
Site requirements
Transducer

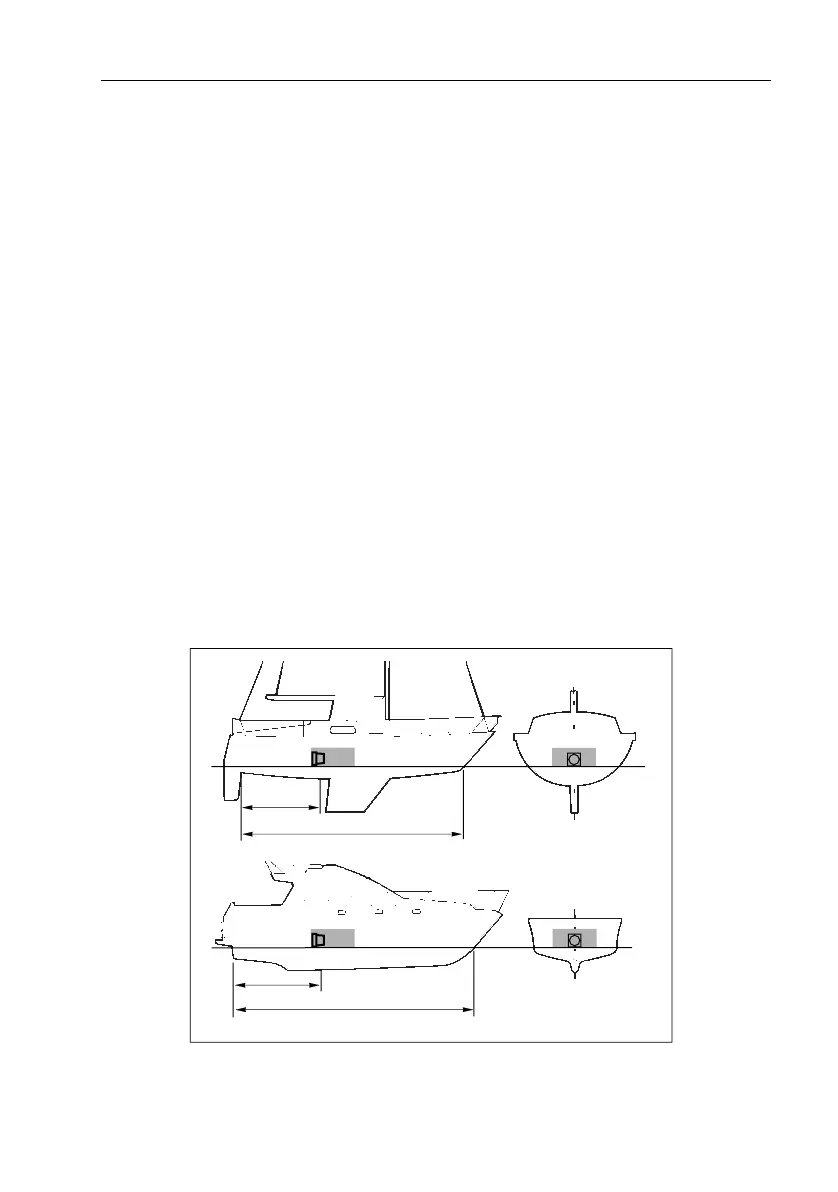

For optimum performance, the Fluxgate Compass transducer should be
positioned as near as possible to the pitch/roll center of the vessel, as shown in the
following illustration.
L
X
L
0.3L to 0.5L
0.3L to 0.5L
D4431-2
81265_1.book Page 11 Monday, December 5, 2005 9:23 AM
