RCA CC4371 User Manual

Editing Features (continued)

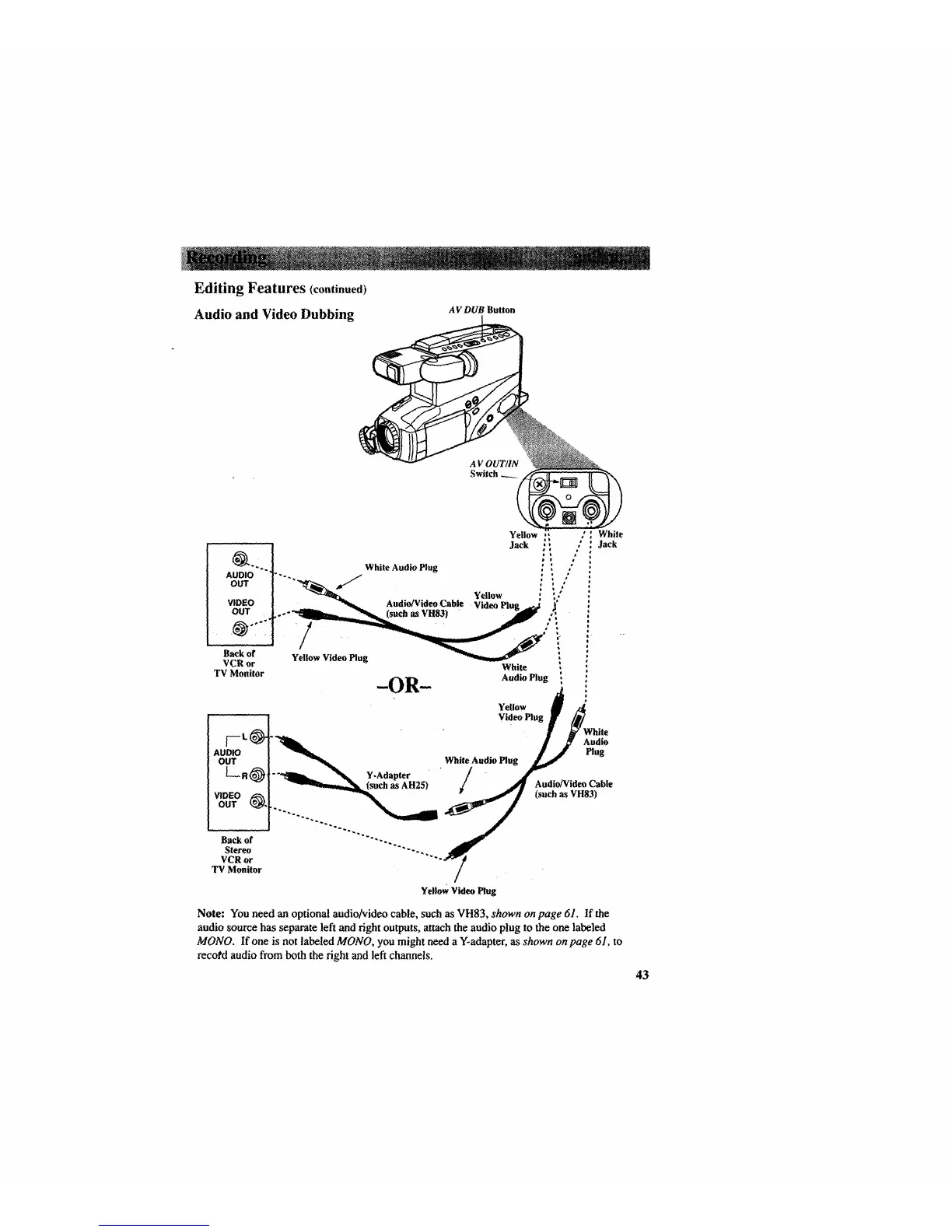

Audio and Video Dubbing
A V DUB Button
AUDIO
OUT
VIDEO
OUT
Back or
VCR or
TV Monitor
r-t@
AUDIO
OUT
LR@
@.
Back of
Stereo
VCR or
TV Monitor
Switch
Yellow ,, /
tt
Jack ,,
t t •
'I ;
White Audio Plug u t J
a v t
t p •
"_ Yellow , ,,
Audio/Video.Cable Video Plu_ _ t'
Yellow Video Plug "_a_o" ,
White
Audio Plug
V yellow _ A
VideoPlug f _/
" " ff _ White
"_l_ l .# Aodio
WhiteAud,o Pl"g
" Y-Adapter " " "
"__such asAH25)/ ._Audio/Video Cable
.... " ............. -__ll_ _ (such asVH83)
Yellow Video Plug
White
Jack
Note: You need an optional audio/video cable, such as VH83, shown on page 61. If the
audio source has separate left and right outputs, attach the audio plug to the one labeled
MONO. If one is not labeled MONO, you might need a Y-adapter, as shown on page 61, to
recoM audio from both the right and left channels.
