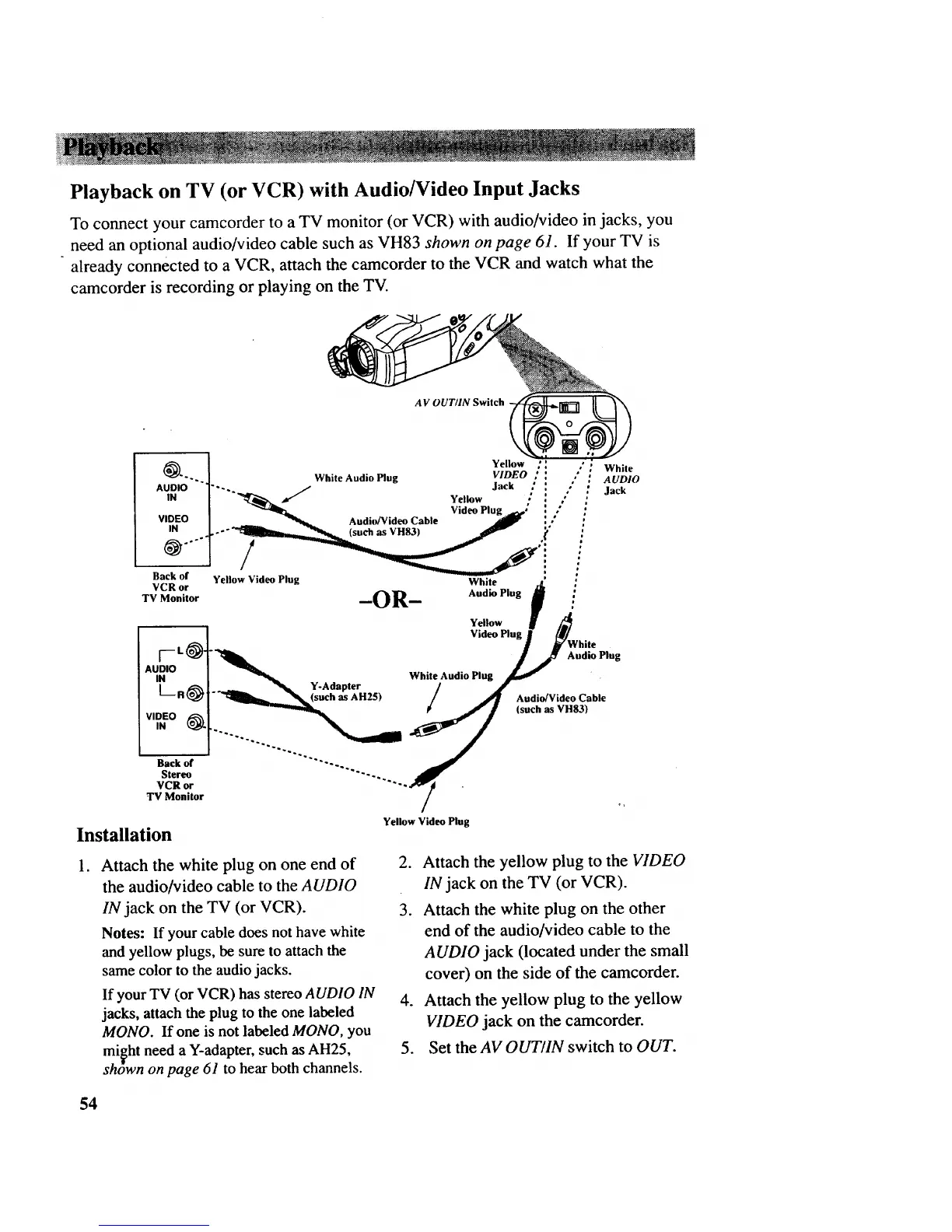

Playback on TV (or VCR) with Audio/Video Input Jacks
To connect your camcorder to a TV monitor (or VCR) with audio/video in jacks, you
need an optional audio/video cable such as VH83 shown on page 61. If your TV is
already connected to a VCR, attach the camcorder to the VCR and watch what the
camcorder is recording or playing on the TV.
A V OUTIIN Switch
AU ,O"
VIDEO
.°.-'
Back of
VCR or
TV Monitor
7-
AUDIO
IN
L.@
Yellow :_ ,' " White
White Audio Plug VIDEO J _ " AUDIO
..... / Jack ,' : ," '
_"_ Yellow . : o. ! Jack
Video Plug _._" : " ;
_q_.. Audio/Video Cable _ :o." :
.-"" _,_=.__,/(such as VH831 ? :
Yellow Video Plug White :
-OR- Audio Plug ;
Yellow
Video Plug
thite
Audio Plug
White Audio Plug
Y-Adapter
(such as AH25) Audio/Video Cable
(such as VH83)
Back of
Stereo
VCR or
TV Monitor
Installation
Yellow Video Plug
.
Attach the white plug on one end of
the audio/video cable to the AUDIO
IN jack on the TV (or VCR).
Notes: If your cable does not have white
and yellow plugs, be sure to attach the
same color to the audio jacks.
If your TV (or VCR) has stereo AUDIO IN
jacks, attach the plug to the one labeled
MONO. If one is not labeled MONO, you
might need a Y-adapter, such as AH25,
shown on page 61 to hear both channels.
2. Attach the yellow plug to the VIDEO
IN jack on the TV (or VCR).
3. Attach the white plug on the other
end of the audio/video cable to the
AUDIO jack (located under the small
cover) on the side of the camcorder.
4. Attach the yellow plug to the yellow
VIDEO jack on the camcorder.
5. Set the AV OUT/IN switch to OUT.
54
