Service Manual 10. Exploded View
333
10. Exploded View

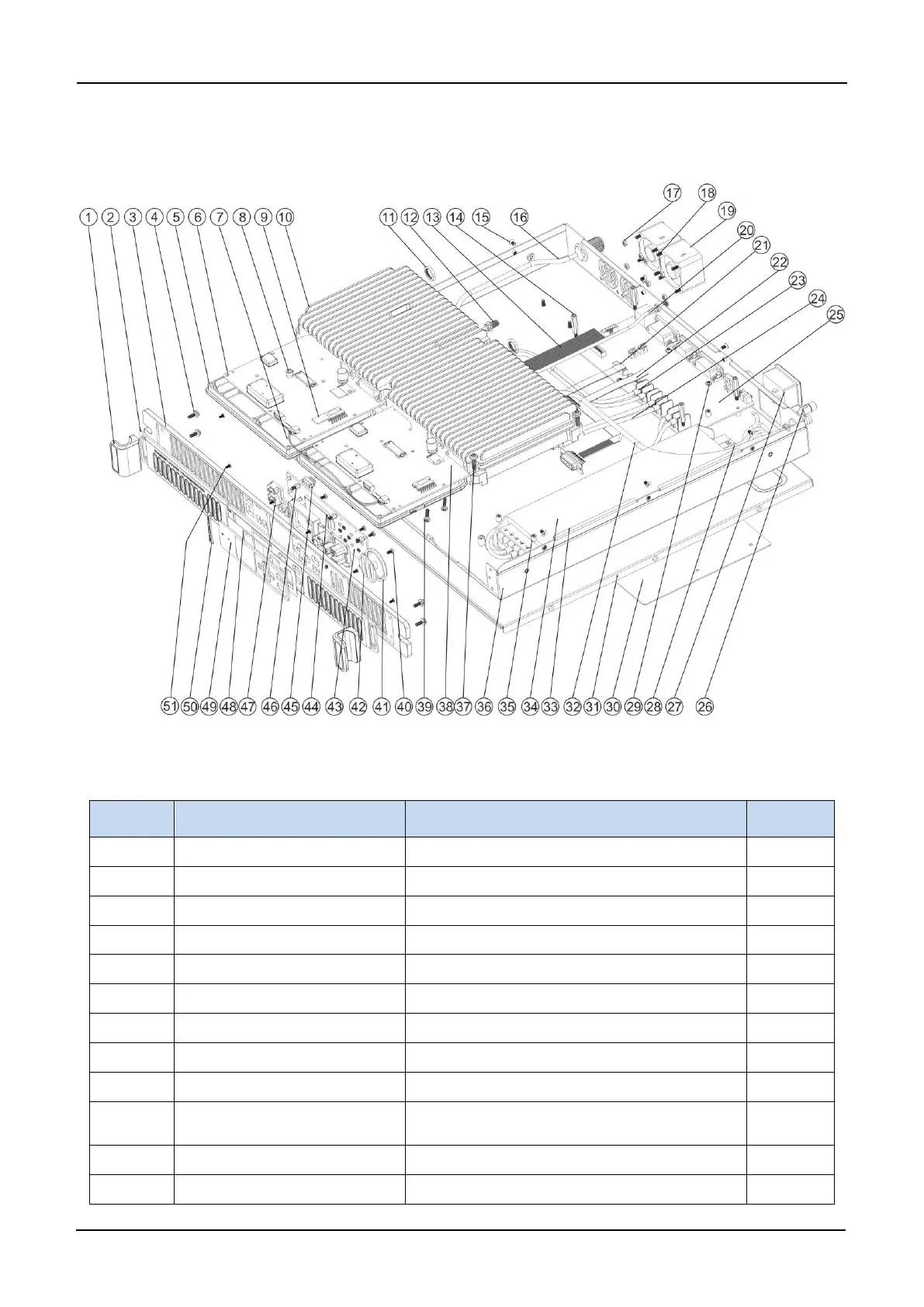

Figure 10-1 Exploded View
No.
Part No.
Description
Qty.
1
MA0000000320
Handle
2
2
MA0000000300
Decorative panel
1
3
MA0000000310
Control panel
1
4
MC2030010200
Machine screw (M3 x 10)
6
5
MA0068100200
Aluminum top cover
2
6
/
PCB for TX module
1
7
EWDBB0190000
8-pin data cable
1
8
MD0060025001
Silicone rubber switch
1
9
MF0000200200
Heat sink pad (16 x 10)
3
10
MM0004000300
Aluminum shielding box for TX and RX
modules
1
11
MD1016025100
TNC nut
2
12
EWC0B0715000
SMA RF connector
1
