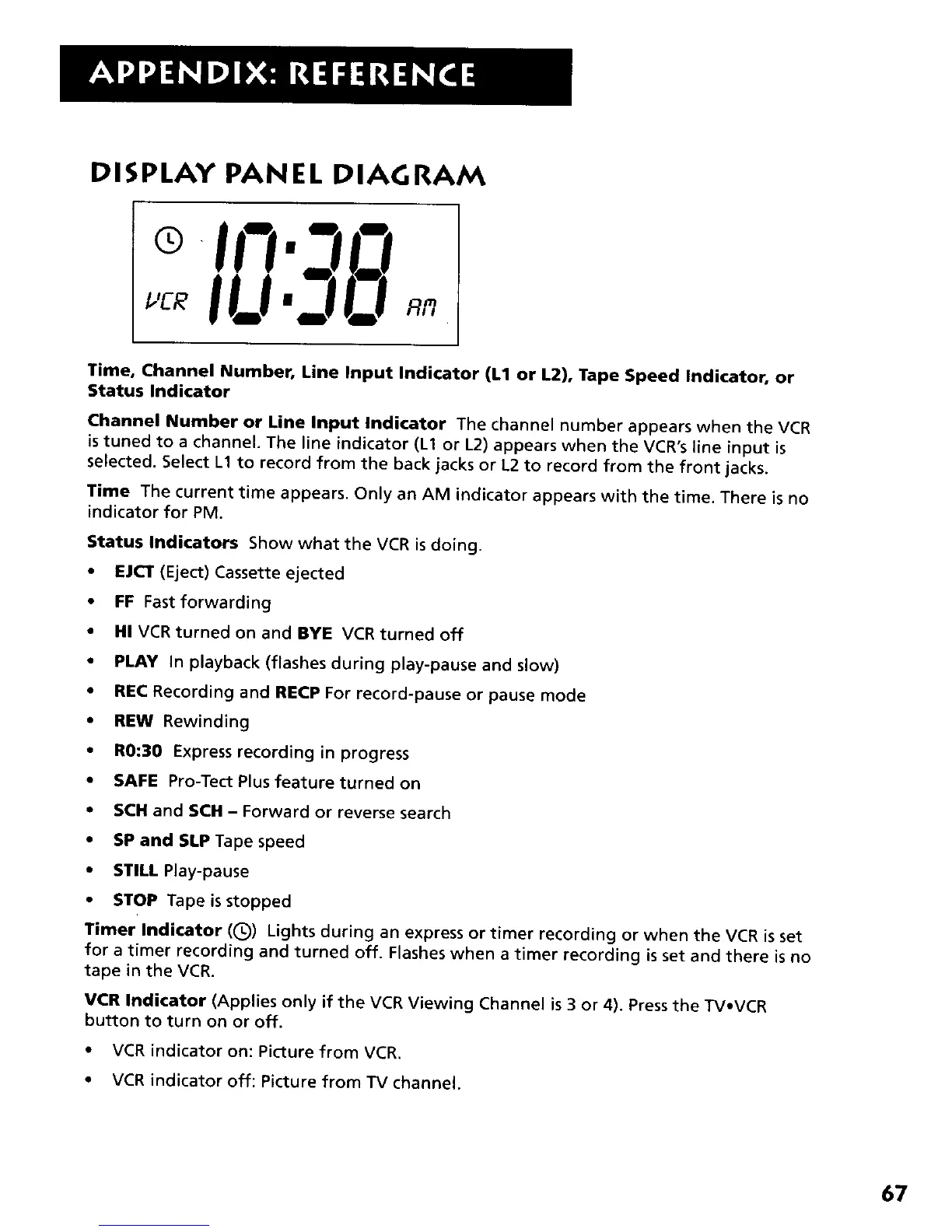

DISPLAY PANEL DIAGRAM
'll' II gl _ 1
Time, Channel Number, Line Input Indicator (L1 or L2), Tape Speed Indicator, or
Status Indicator
Channel Number or Line Input Indicator The channel number appears when the VCR
is tuned to a channel. The line indicator (L1 or L2) appears when the VCR's line input is
selected. Select L1 to record from the back jacks or L2 to record from the front jacks.
Time The current time appears. Only an AM indicator appears with the time. There is no
indicator for PM.
Status Indicators Show what the VCR is doing.
• EJCT (Eject) Cassette ejected
• FF Fast forwarding
• HI VCR turned on and BYE VCR turned off
• PLAY In playback (flashes during play-pause and slow)
• REC Recording and RECP For record-pause or pause mode
• REW Rewinding
• 110:30 Express recording in progress
• SAFE Pro-Tect Plus feature turned on
• SCH and SCH - Forward or reverse search
• SP and SLP Tape speed
• STILL Play-pause
• STOP Tape is stopped
Timer Indicator ((_)) Lights during an express or timer recording or when the VCR is set
for a timer recording and turned off. Flashes when a timer recording is set and there is no
tape in the VCR.
VCR Indicator (Applies only if the VCR Viewing Channel is 3 or 4). Press the TV.VCR
button to turn on or off.
• VCR indicator on: Picture from VCR.
• VCR indicator off: Picture from TV channel.
67
