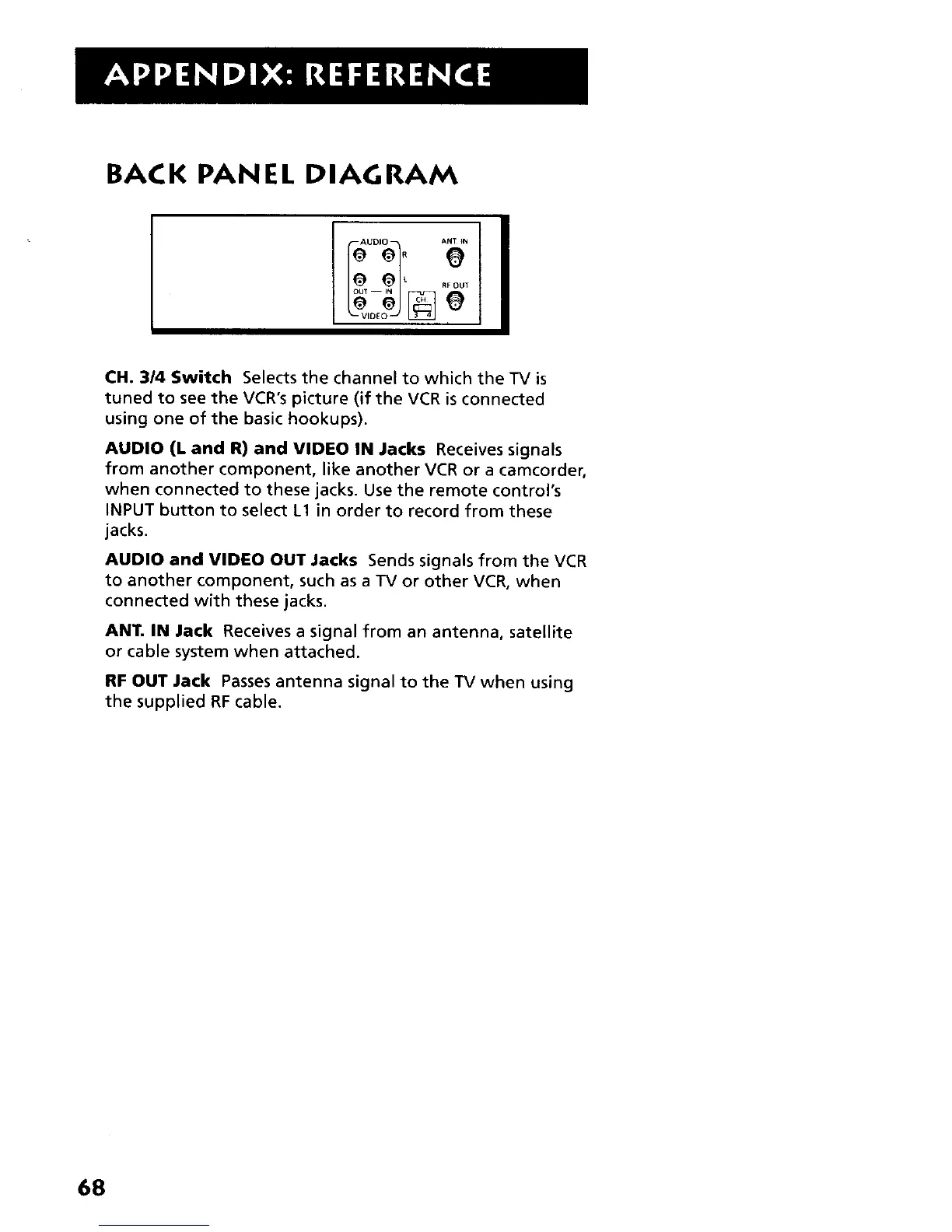

BACK PANEL DIAGRAM
_ AUDIO- ANT IN
OUT -- iN I_
VIDEO --
CH. 3/4 Switch Selects the channel to which the TV is
tuned to see the VCR's picture (if the VCR is connected
using one of the basic hookups).
AUDIO (L and R) and VIDEO IN Jacks Receives signals
from another component, like another VCR or a camcorder,
when connected to these jacks. Use the remote control's
INPUT button to select L1 in order to record from these
jacks.
AUDIO and VIDEO OUT Jacks Sends signals from the VCR
to another component, such as a TV or other VCR, when
connected with these jacks.
ANT. IN Jack Receives a signal from an antenna, satellite
or cable system when attached.
RF OUT Jack Passes antenna signal to the TVwhen using
the supplied RF cable.
68
