Redarc BMS1215S2 User Manual

2 INSTALLATION GUIDE
2.2.3 Installing the Current Shunt & Battery Sensor
Wire the Current Shunt between the negative terminal of the house battery and
the common ground connection using the outside connections as shown in fi gure
2.2.3.1. Connect the sense terminals on the Battery Management System to the
Current Shunt inner terminals with a twisted pair of wires. The shunt positive wire
is connected to the screw terminal on the end of the Current Shunt closest to the
house battery. The shunt negative terminal on the BMS must be fi xed under the
screw terminal on the Current Shunt nearest the common ground connection.
Bolt the large lug of the Battery Sensor to the negative terminal of the house
battery, with the ring terminal of the red wire bolted to the positive terminal of the
house battery as shown in Figure 2.2.3.1.
Shunt
Negative
Shunt
Positive
Common
Ground
Point
Shunt & Battery
Monitor Wiring
House
Battery
Chassis
Earth

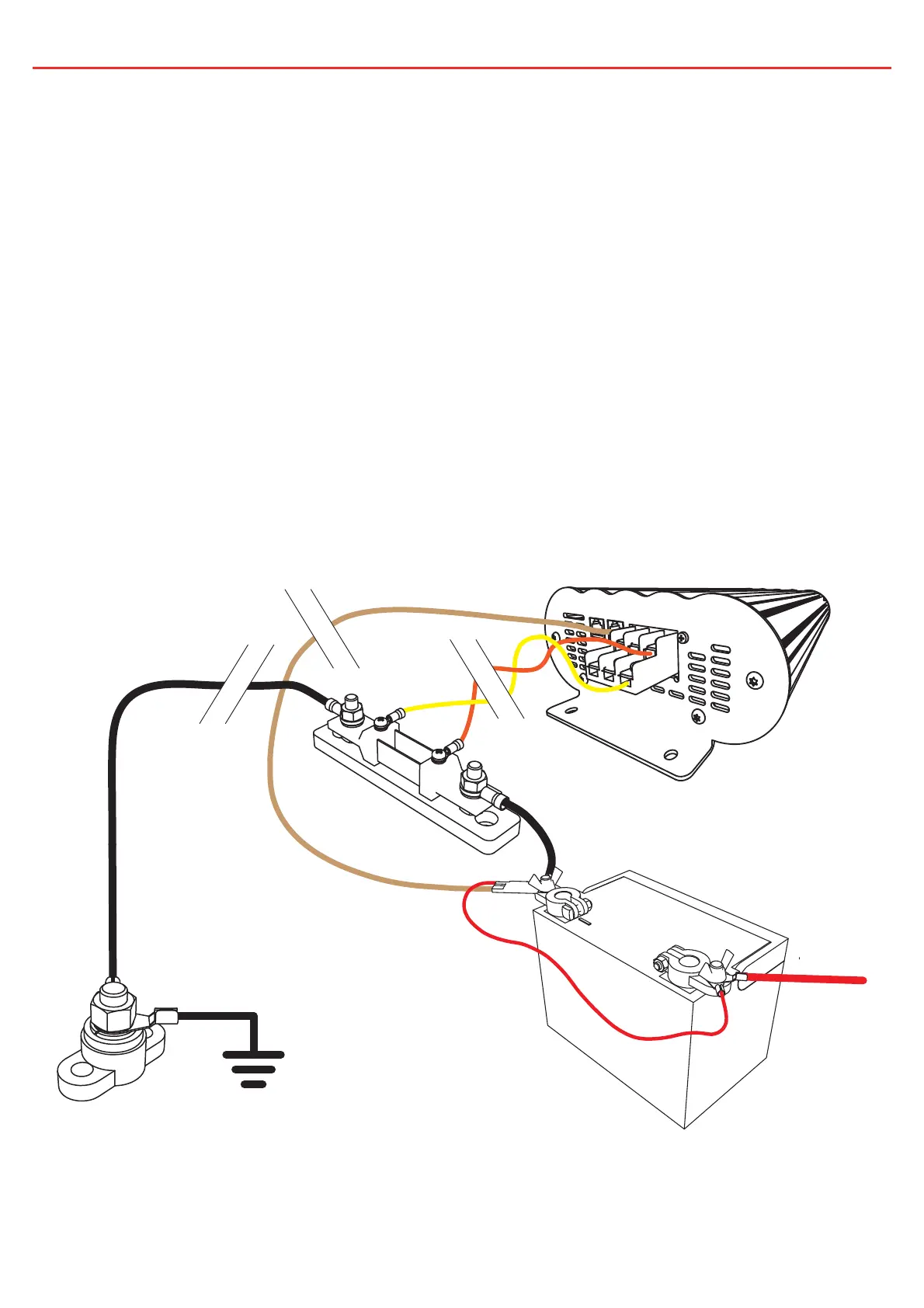

Figure 2.2.3.1 - Shunt and Battery
Monitor wiring diagram.
15
