2 INSTALLATION GUIDE
2.4 Connections to Main Unit
WARNING
Redarc recommends that this unit be installed by a suitably qualifi ed person.
WARNING
The AC power connection must be connected to an earthed socket outlet. Do not
use the BMS AC input if the cord is damaged. (If the supply cord is damaged, it
must be replaced by a special cord or assembly available from the manufacturer
or service agent).
WARNING
During connection of the unit, the positive battery terminal must be connected
fi rst, followed by the chassis terminal. The chassis connection should be made
away from the battery and fuel lines. Supply mains should be connected last. The
connection to the supply mains is to be in accordance with the national wiring
rules.
When disconnecting, the supply mains should be disconnected fi rst, followed by
the chassis connection, then the battery connection.
Refer to Figure 2.4.1 for required connections and to Figure 2.4.2 or 2.4.3 for a
typical setup.
NOTE: If a longer Remote Monitor cable is required, a replacement 6 Pin/ 6 Core
RJ12 cable may be used, up to a length of 10m.
Remote Monitor
Battery Sensor
Input Battery Positive
Solar Positive
Output Battery Positive
AC Mains Input
Shunt Positive
Shunt Negative
Common Ground
1
2
3
4
6
9
7
8
5

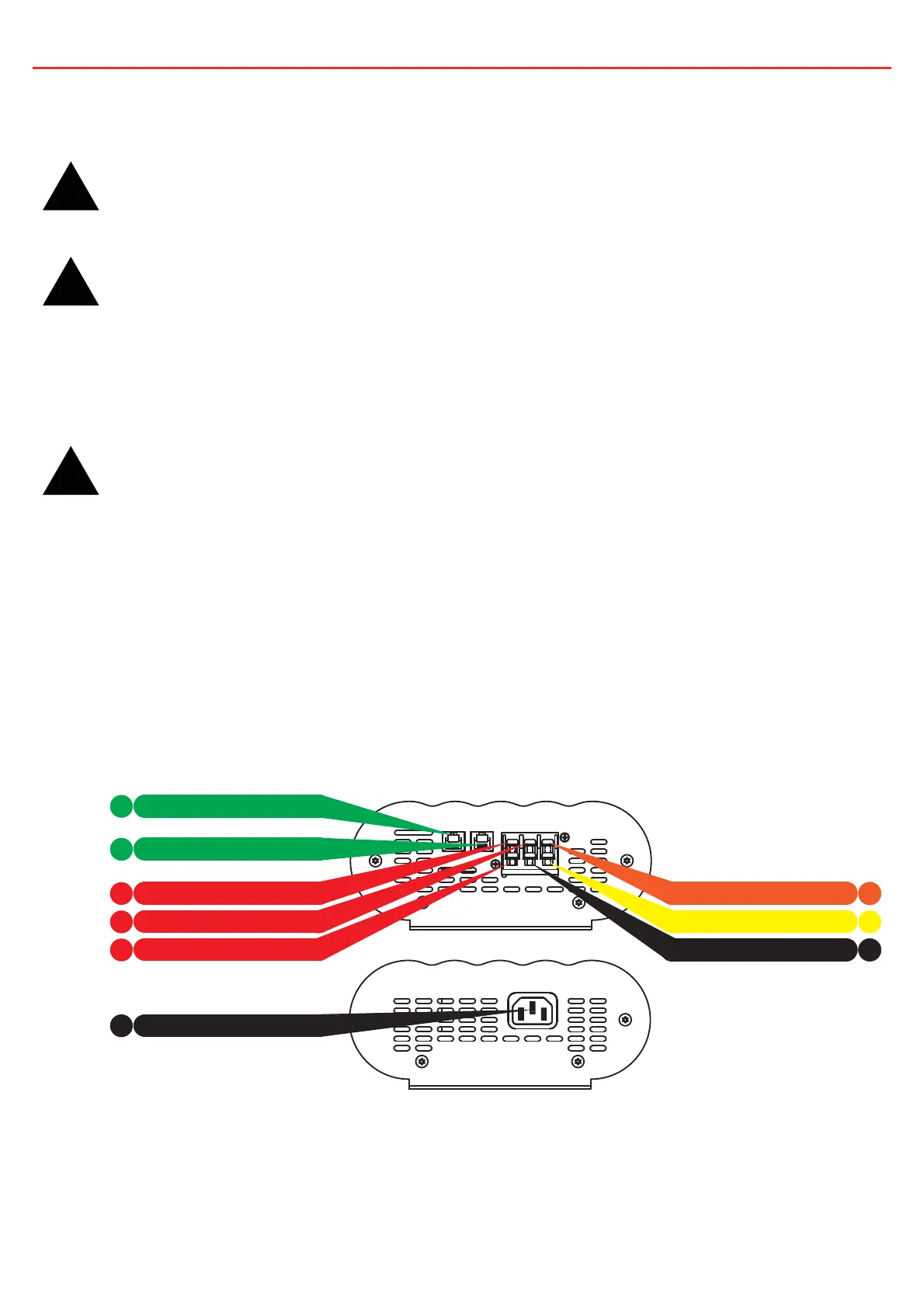

Figure 2.4.1 - Required connections.
