Description of the device
Fillcontrol Plus — 06.07.2016 - Rev. B English —

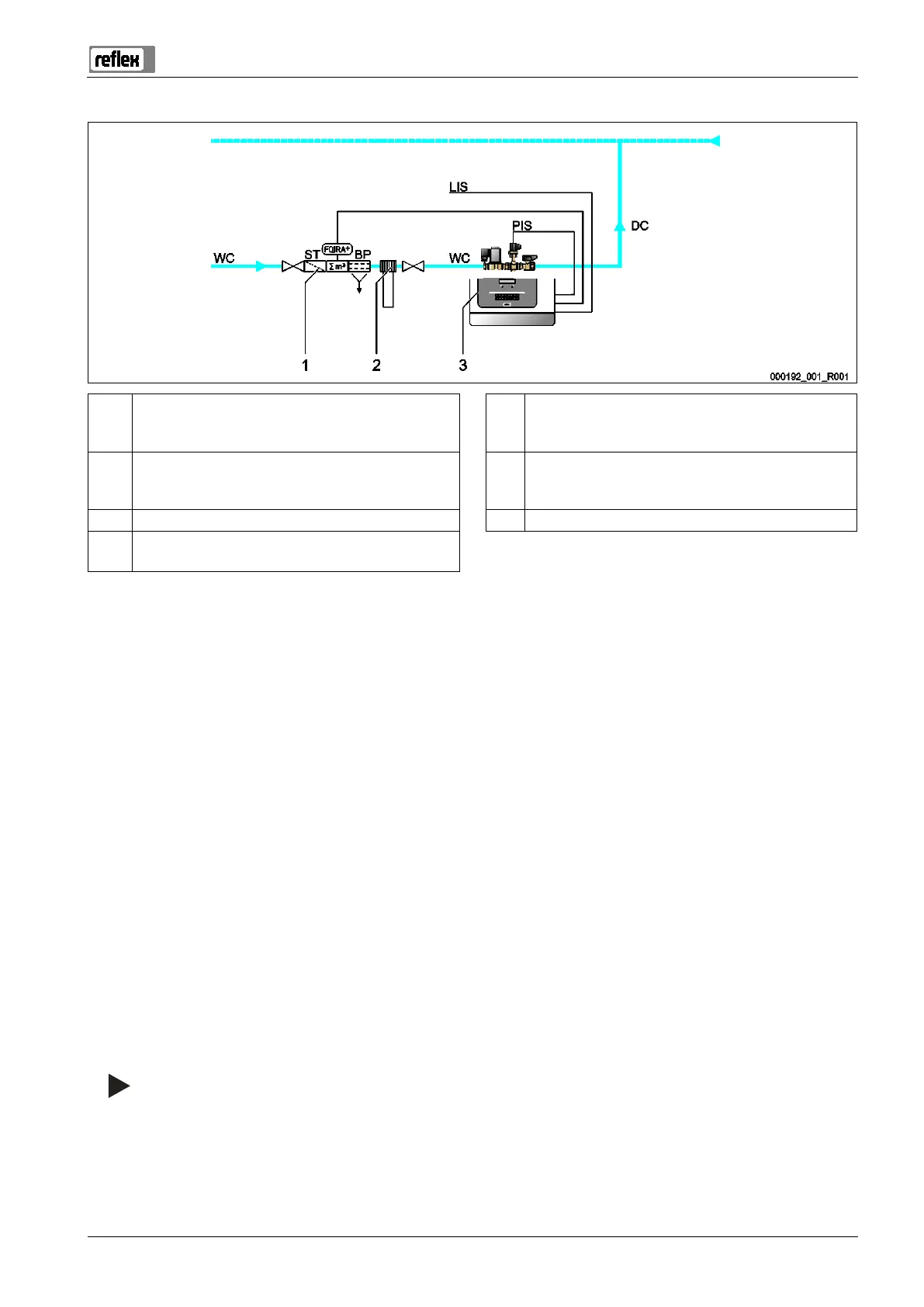

4.4 Function
1
Fillset Impuls, see chapter 4.6 "Optional equipment and
accessories" on page 12 .
PIS Pressure transducer for pressure-dependent make-up
• Internal signal line from the pressure transducer to
the controller
2
"Fillsoft" softening system, see chapter 4.6 "Optional
equipment and accessories" on page 12 .
WC Make-up line to the device
3 Fillcontrol Plus DC Make-up line to the system
LIS Filling level monitoring for level-dependent make-up
• External signal line to the controller
Fillcontrol Plus controls the make-up with fresh water for the facility system.
The controller monitors the following functions:
• Make-up time.
• Make-up cycles.
• Make-up quantity, if an optional contact water meter is installed.
The controller will detect small leaks in the system. When a leak is detected, the controller interrupts the make-up with as soon as the
make-up time or the make-up cycles are exceeded.
Fillcontrol Plus supports two make-up variants:
• Pressure-dependent make-up with water in a facility system with a diaphragm expansion tank ("Magcontrol" mode).
– The pressure transducer sends a signal to the controller if the pressure drops below the minimum working pressure of the
facility system. The make-up is released. Fresh water is added to the facility system. For calculating the filling pressure into the
facility system, see chapter 7.2 "Determining the P
0
minimum operating pressure for the controller" on page 24 .
• Level-dependent make-up with water in a facility system with a pressure-maintaining station ("Levelcontrol" mode).
– A pressure-maintaining station monitors the filling level in the expansion tank. If the level drops below minimum, the pressure-
maintaining station sends a signal to the controller. The make-up is released. Fresh water is added to the facility system.
The mode is set in the Customer menu,see chapter 9.2.1 "Customer menu" on page 34 .
The controller may monitor additional function, if you combine various accessories.
The following components are available as optional accessories:
• "Reflex Fillsoft" softening system.
• "Reflex Fillset" with "FQI" water meter.
• "Reflex Fillset Imuls" with "FQIRA+" contact water meter.
Note!
For optional accessories, see chapter
4.6 "Optional equipment and accessories" on page 12 .
